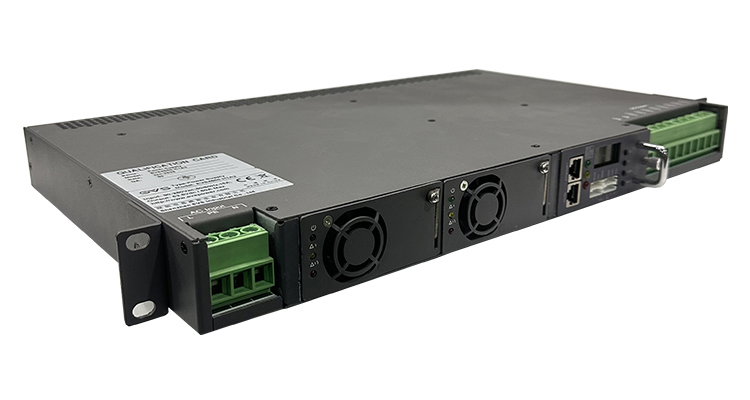

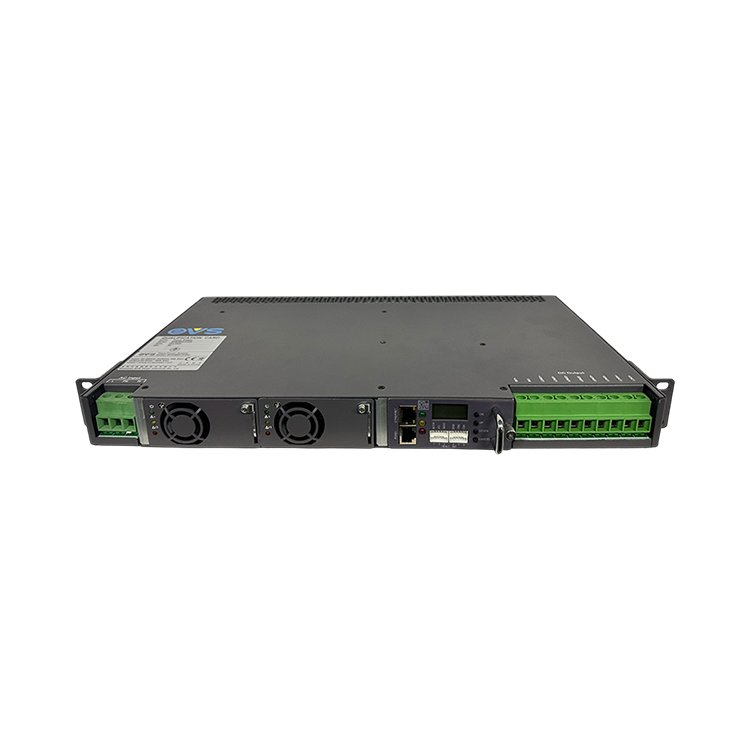

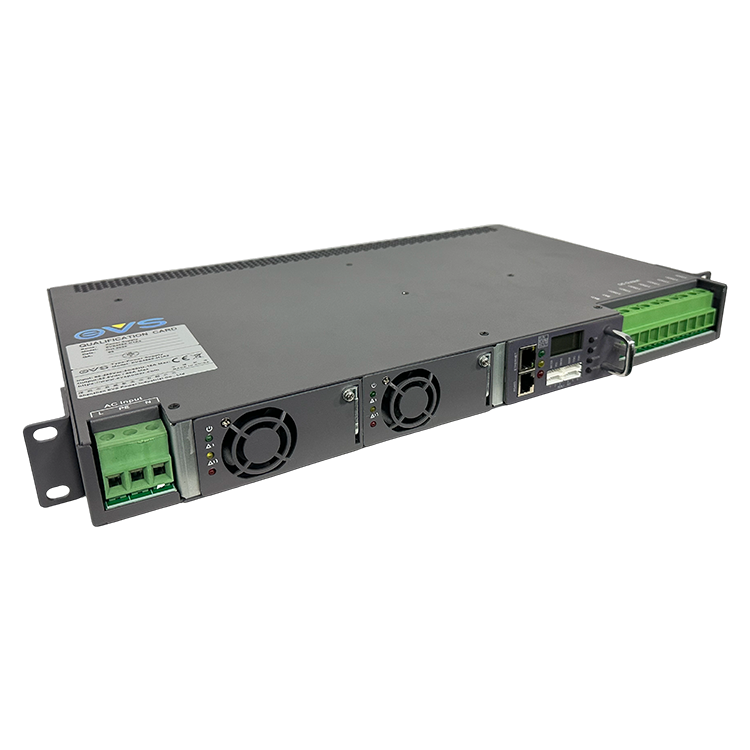

EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
1 / 5
EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP

EVSPOWER EVS2460-H1A2 Single Output Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP

Send Inquiry

Product Description

Telecom Rectifier Supply 24V 60A DC 1600W 80-300VAC Input Hot-swap Web/SNMP
Telecom Rectifier Supply Divider
Industrial Power Solution
Switch Mode Power Supply units are specifically designed for applications in wireless broadband access, fixed-line communications, Internet backbones, and data centers. Our line of telecom power solutions are built to provide exceptional reliability, energy efficiency, and protection against mains power disruptions and fluctuations. These features enable operators to economize on operational expenses and minimize their carbon footprint associated with power usage.
The Switch Mode Power Supply System, widely deployed in the Telecom and Industrial sectors, is highly customizable. It is typically composed of one or more rectifier modules and monitoring modules, which may vary in terms of power capacity depending on the number of rectifier modules included. The system consists of power distribution units, rectifier modules, and monitoring modules, all of which can be tailored to the client's specific requirements.
Input Specifications
Input Parameters
Parameter Min. Rated Max. Unit Note
Rated working voltage range - 110/220 - Vac -
Input voltage range 90 220 290 Vac Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Input frequency 43 50 67 Hz -
Battery input 21 26.8 29 Vdc Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)
Output Specifications
Output Parameters
Parameter Min. Rated Max. Unit Note
Output voltage range 21 26.8 29 Vdc -
Output current range (max.current) 0 - 60 A Input 176 ~ 285VAC, when the input voltage is below 175VAC, output at derating manner.
Regulation accuracy - - ±1 % -
Load regulation - - ±1 % -
Source regulation - - ±1 % -
Current sharing regulation - - ±5 % -
Ripple (peak – peak value) - - 200 mv Network 20MHz testing.
Output efficiency 91 95 - % 220Vac Input
Telecom Rectifier Supply Divider Block
Product Highlights

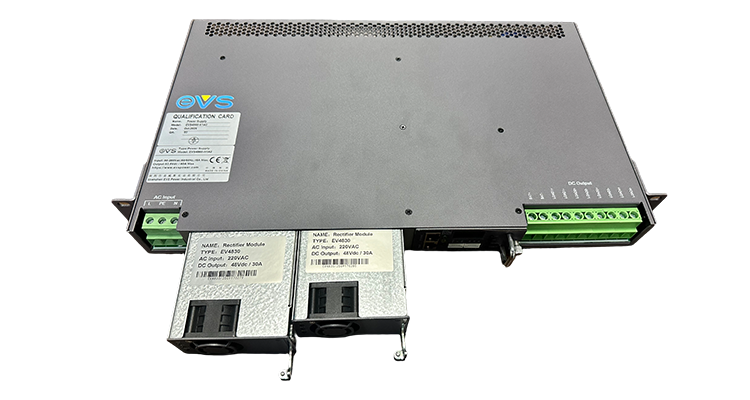

Telecom Rectifier Supply Unit Design

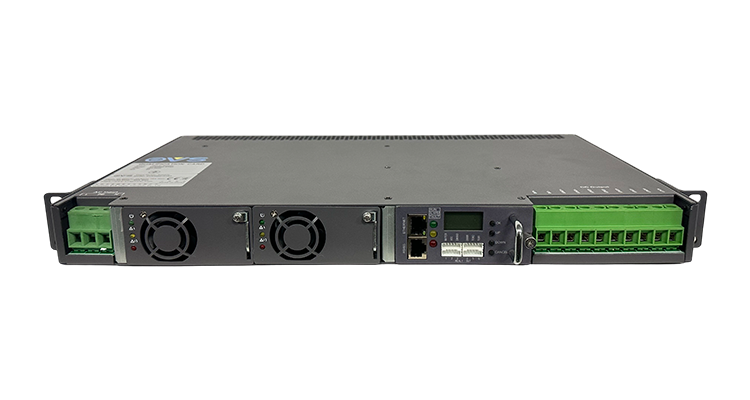

Telecom Rectifier Supply Performance Diagram

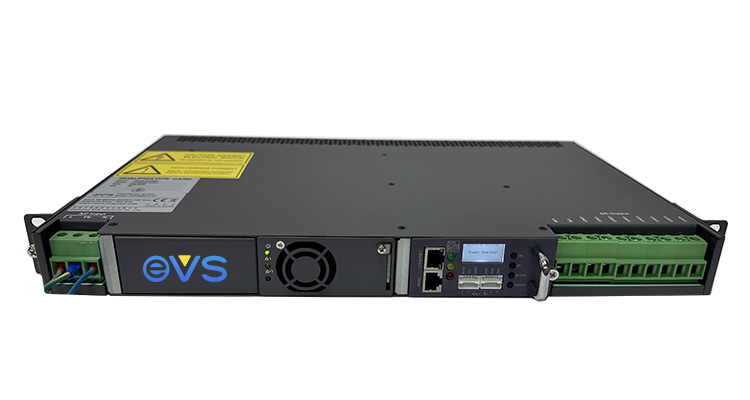

Telecom Rectifier Supply Configuration Setup

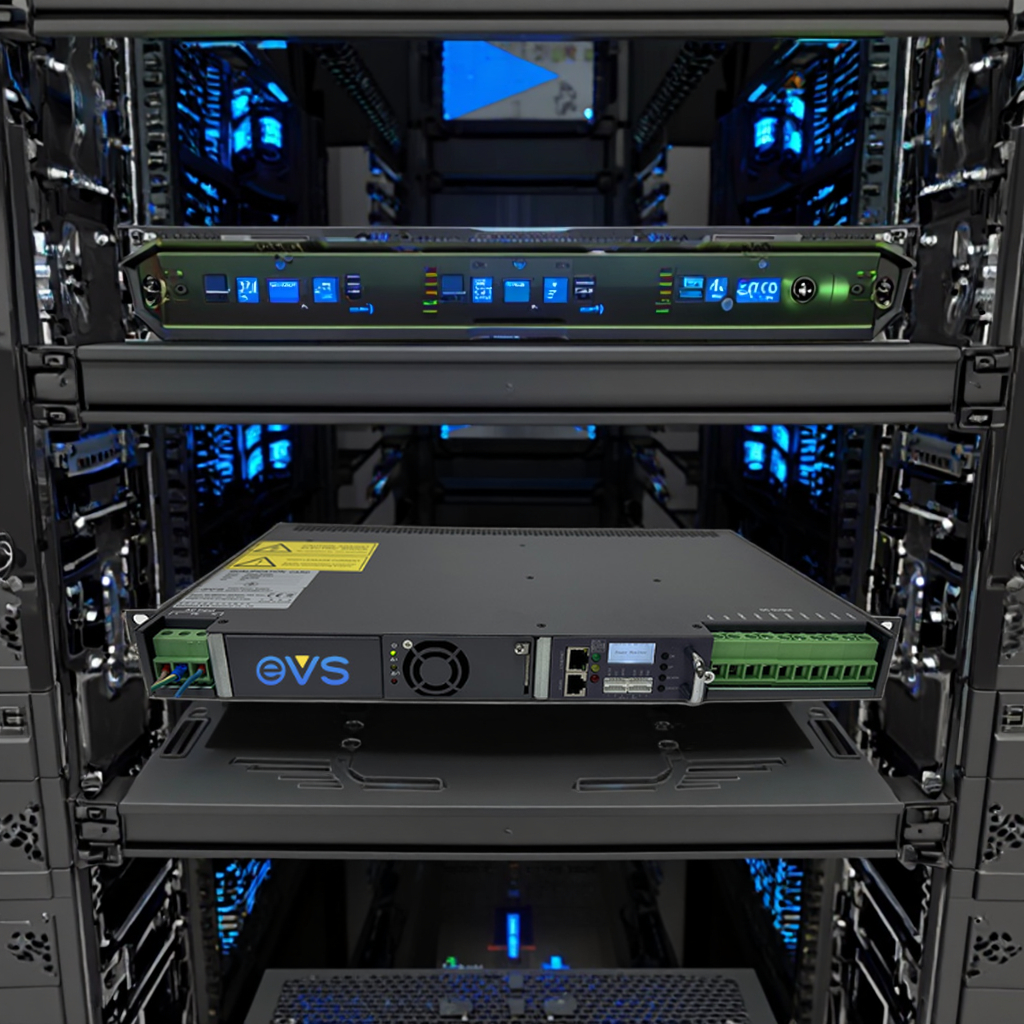

Telecom Rectifier Supply Unit Close-up
Product Directory & System Options
Rectifier Supply Category Display
Production & Quality Control Process
Production Facility Overview
Testing and Assembly Area
Equipment Quality Testing
Assembly Process Step 1
Assembly Process Step 2
Final Quality Check

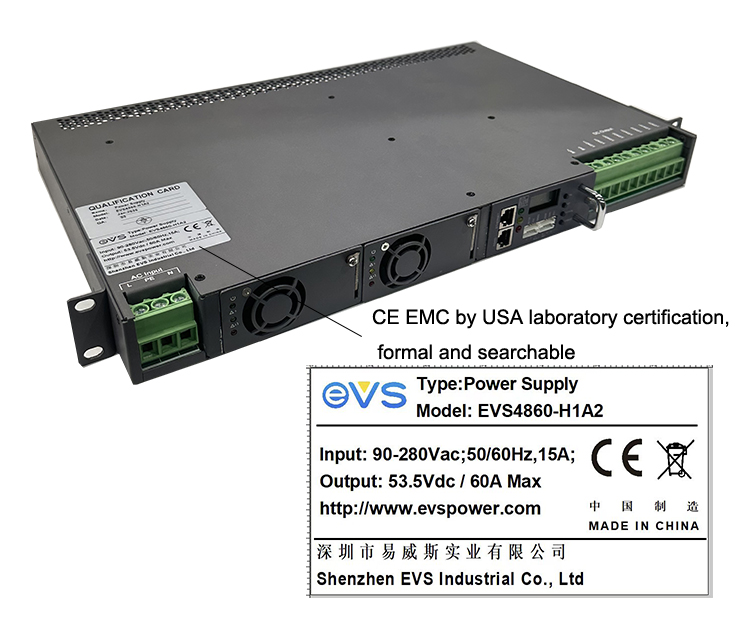

Certification Standards and Quality Control
Frequently Asked Questions (FAQ)
What is the rated working voltage range of the Telecom Rectifier Supply?
The rated working voltage range is 110/220 Vac, with a wide input voltage range from 90 Vac to 290 Vac to handle mains voltage fluctuations.
What is the maximum output current for this power supply module?
The maximum output current is 60 A, operating within a highly stable DC output range of 21 Vdc to 29 Vdc.
How does the system perform when the input voltage drops below 175VAC?
If the input voltage drops below 175VAC down to the minimum limit of 90VAC, the module continues to function but operates in a derating manner to ensure component safety.
What is the typical energy efficiency of this rectifier system?
At a standard 220Vac input, the output efficiency ranges from 91% to a peak of 95%, helping operators save on power costs and lower carbon emissions.
Can these Switch Mode Power Supply systems be customized?
Yes. The entire system—consisting of power distribution units, rectifier modules, and monitoring modules—can be fully configured and tailored to meet specific industrial or client requirements.
What are the main application fields for these rectifier supplies?
These systems are heavily deployed in the telecom and industrial sectors, specifically supporting wireless broadband access, fixed-line communications, Internet backbones, and data center structures.
