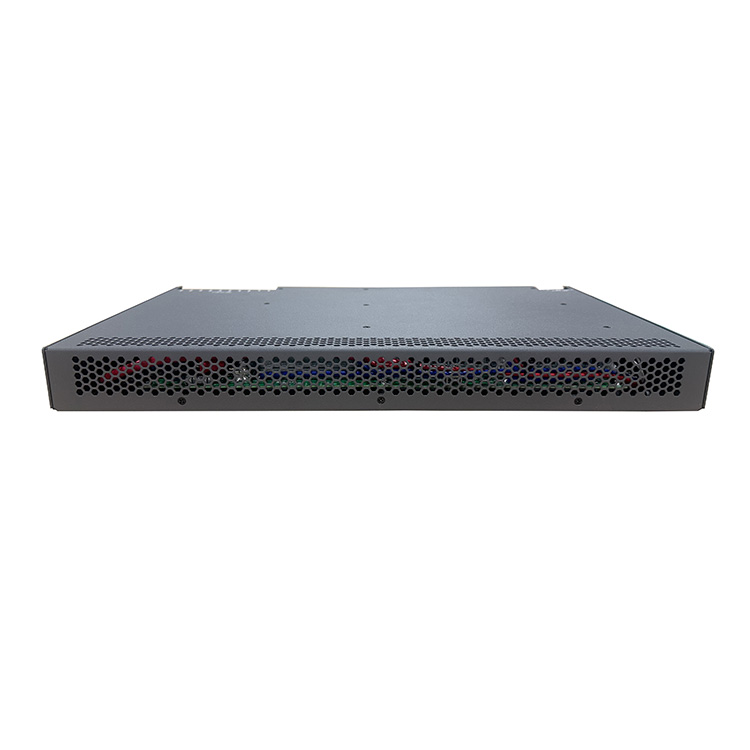

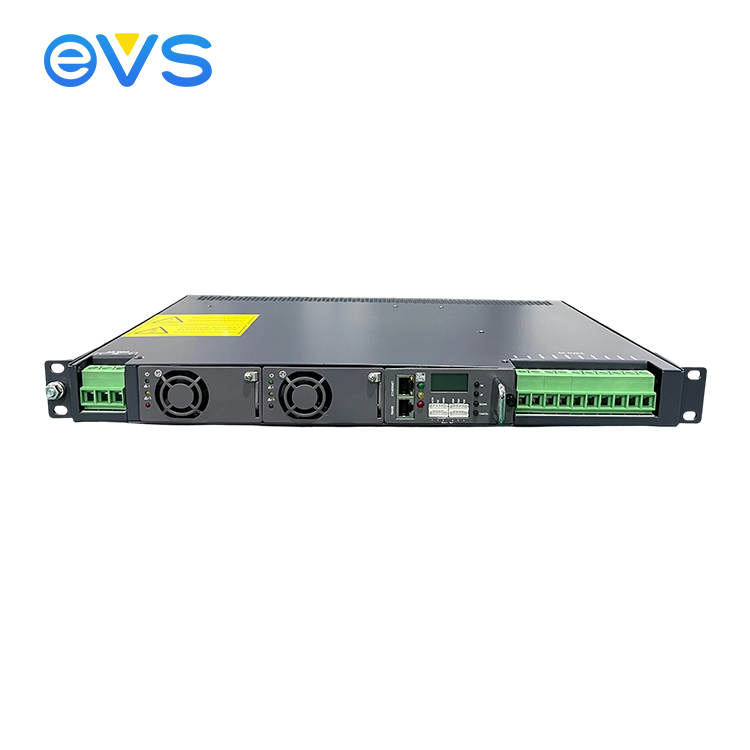

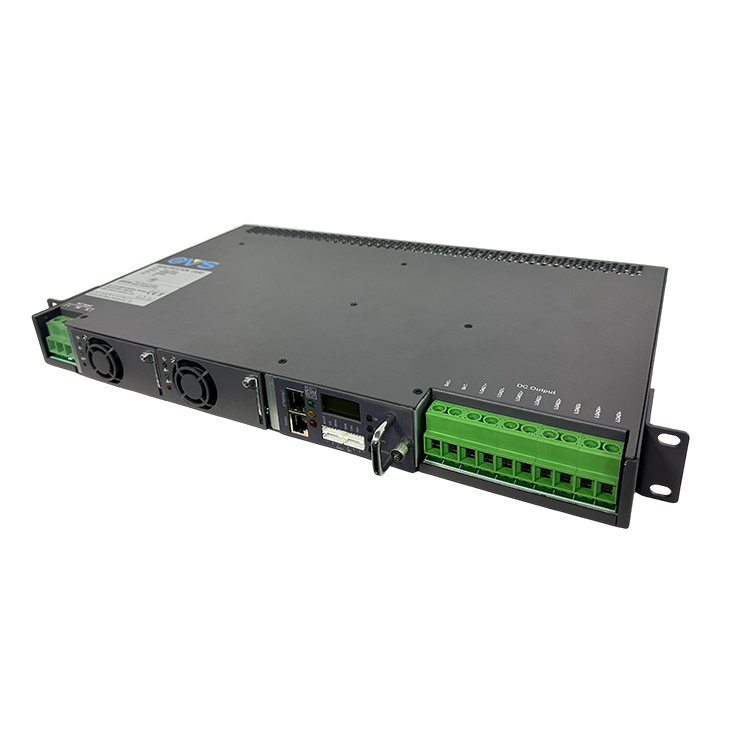

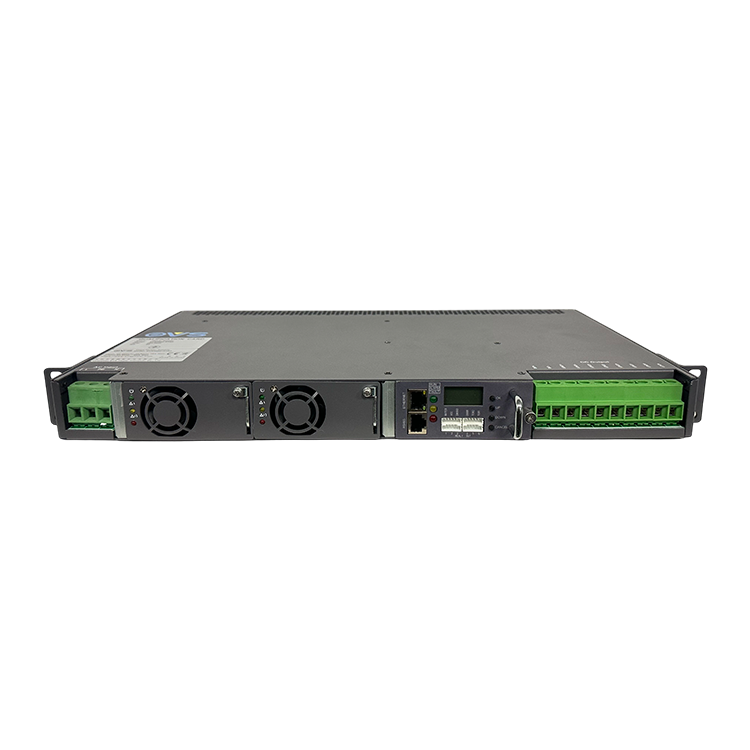

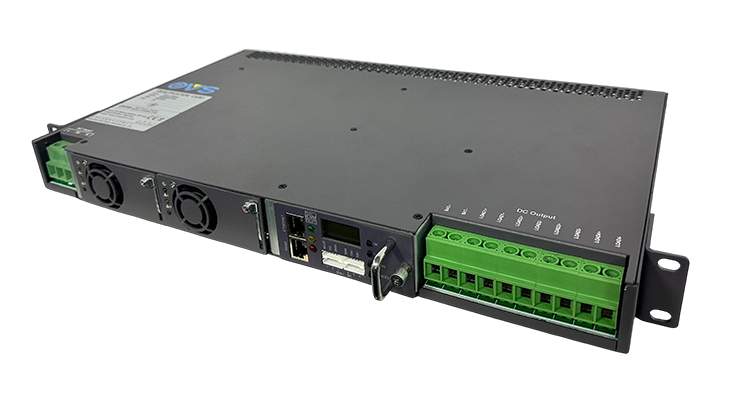

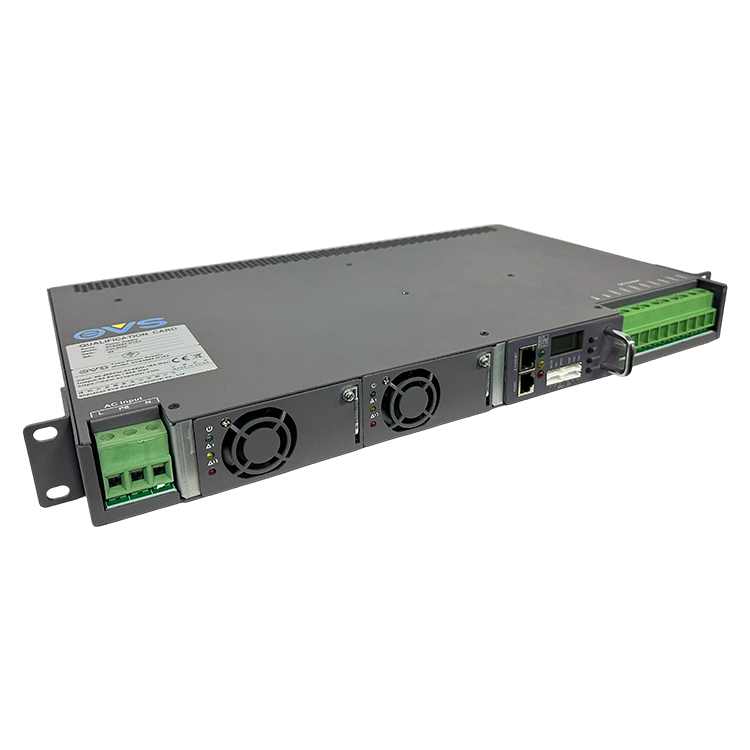

48V Rectifier System
Telecom power supplies are designed for wireless broadband access, fixed-line applications, Internet backbone and datacenters. Our reliable, energy-efficient telecom power solutions protect against grid power interruptions and fluctuations and help operators reduce OPEX and their carbon footprint.
Telecom 48V Rectifier System is for communication.
Output voltage -54V, Output current 0-60A; Its features include input over/under-voltage protection, output over-current protection, output over-voltage protection.
DC power supply, with the following features and functions:
| Product Name | 24v 50a Telecom Power |
| Model | 2460-H1A2 |
| Rated capacity | 60A/1600W |
| AC INPUT | |
| AC INPUT(AC) | 220VAC |
| AC INPUT RANGE | 176~290VAC |
| Power Factor | ≥0.99 |
| DC OUTPUT | |
| Output Rated voltage | 24V (Default output voltage 26.8VDC) |
| Output voltage range | 21~29VDC |
| Rated output current | 60A (176~290VAC) 30A (90~175VAC) |
| Maximum output power | 1600W |
| Ripple (Peak value) | Maximum 200mv |
| Output efficiency | ≥95.5% (For 220Vac Input) ≥92% (For 110Vac Input) |
| Load shunt | 1 channel load output |
| Battery shunt | 1 channel battery output |
| Rectifier module | 2430 * 2 PCS |
| Monitor module | 1pc |
| Multinomial function | RS485/Modbus/SNMP communication interface, Autonomous current sharing, Parallel connection realized by current sharing assembly, Remote control / switch machine, Hot swap, Dormancy energy saving |
| Protection features | Input overvoltage protection, output overvoltage protection, output overcurrent protection, Over temperature and low temperature protection, short circuit protection, sleep energy saving function. |
| Operating environment | |
| Operating temperature | -40°C to +70°C |
| Humidity | 95% non-condensing |
| Atmospheric pressure | 70 -106 KPa |
| Altitude | 0 - 3000M |
| Cooling method | Fan forced cooling |
| Safety characteristics | Input - Output: 3000Vdc / 10mA / 1min (No flash, no breakdown) Input - Case: 1500Vdc / 10mA / 1min (No flash, no breakdown) Output - Case: 700Vdc / 10mA / 1min (No flash, no breakdown) |
| Weight (net/gross) | 6KG / 8KG |
| Machine size | 482mm(W) × 270mm(D) × 44mm(H) |
