EVS Powers
1 / 5

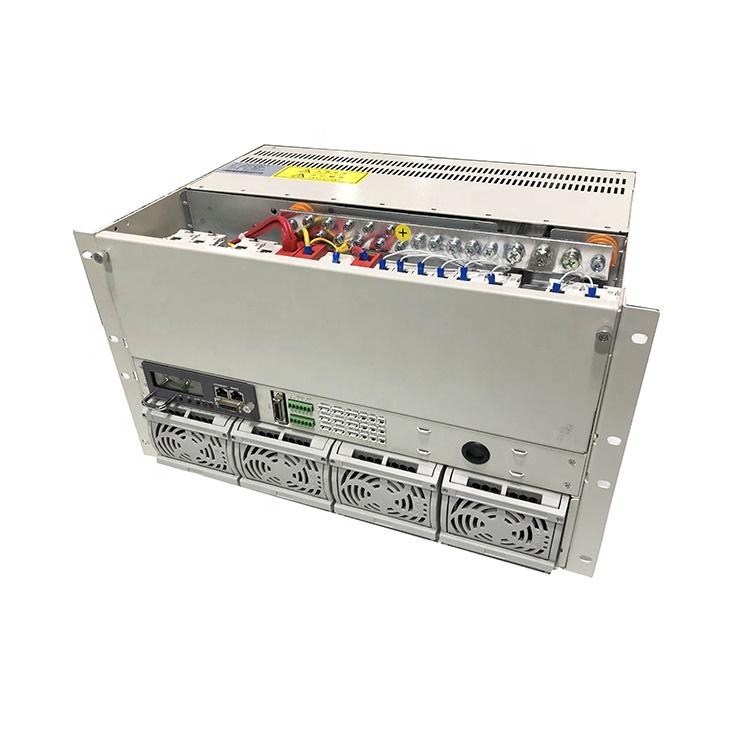

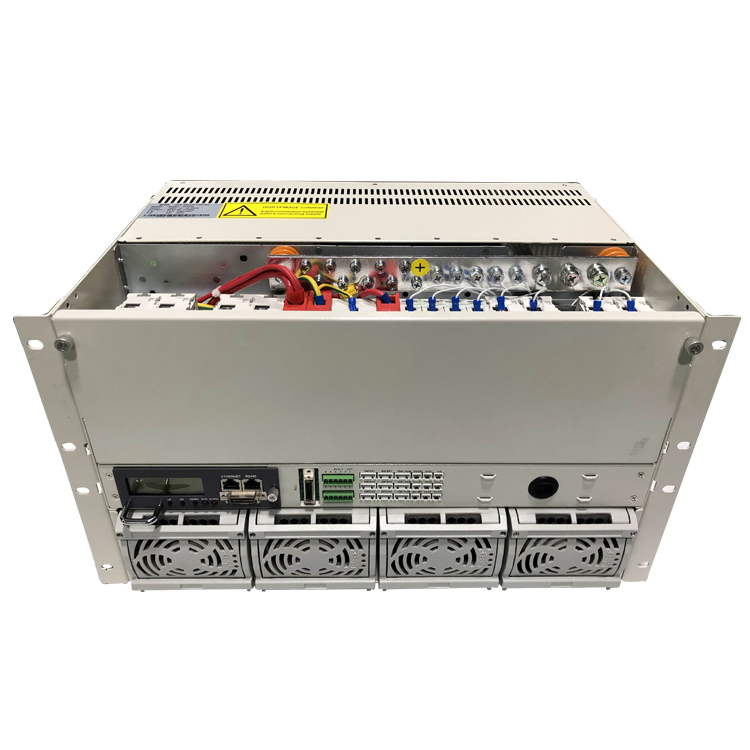

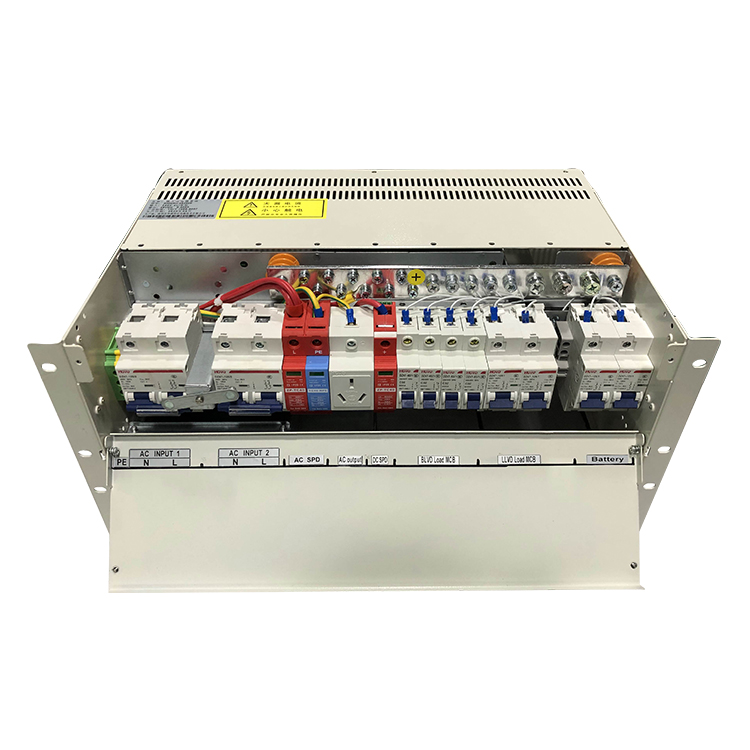

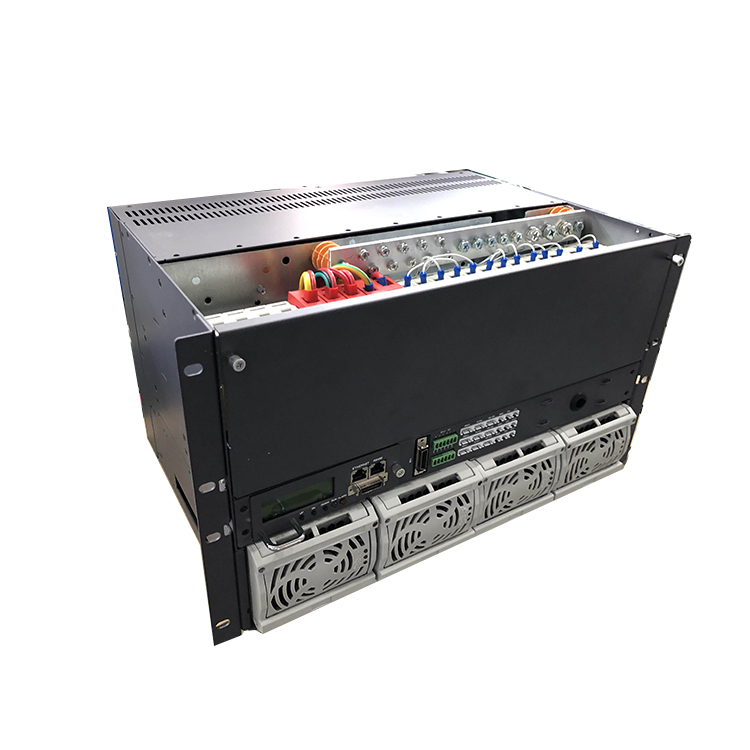

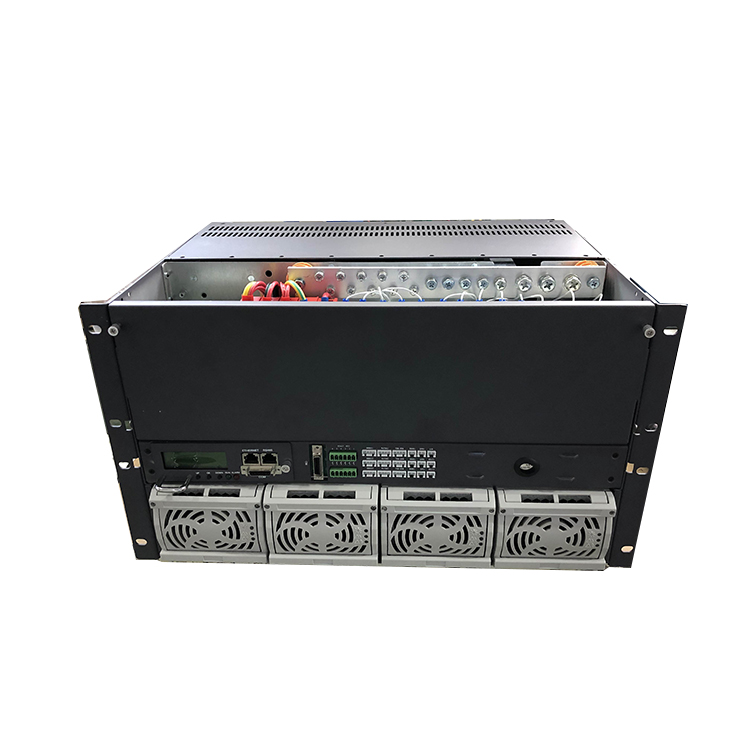

EVS 48V DC Power Supply Rectifier System
Our Rectifier Systems are designed for wireless broadband access, fixed-line applications, Internet backbone and datacenters. Our reliable, energy-efficient telecom power solutions protect against grid power interruptions and fluctuations and help operators reduce OPEX and their carbon footprint.
This model of Rectifier System is for communication, with an Output voltage of -54V and Output current of 0-60A. Its features include input over/under-voltage protection, output over-current protection, and output over-voltage protection.
DC power supply, with the following features and functions:
| Product Name | 48V DC Rectifier System |
| Battery Interface | 1-2 Way |
| Warranty | 12 months |
| Output Power | 3000W |
| Input Voltage | 90VAC-295VAC / 100DC-400VDC |
| Output Voltage | 48VDC |
| Output Frequency | 50/60 Hz |
| Output Current | 50A (100A, 150A, 200A...) |
| Power Factor | ≥0.99 |
| Effectiveness | ≥93.2% |
| Rated Output Voltage Range | 42VDC-58VDC |
| Output Rated Current | 200A MAX. |
| Regulation Accuracy | ≤±0.6 |
| Peak To Peak | ≤200mv |
| Equal Current | ≤5% |
