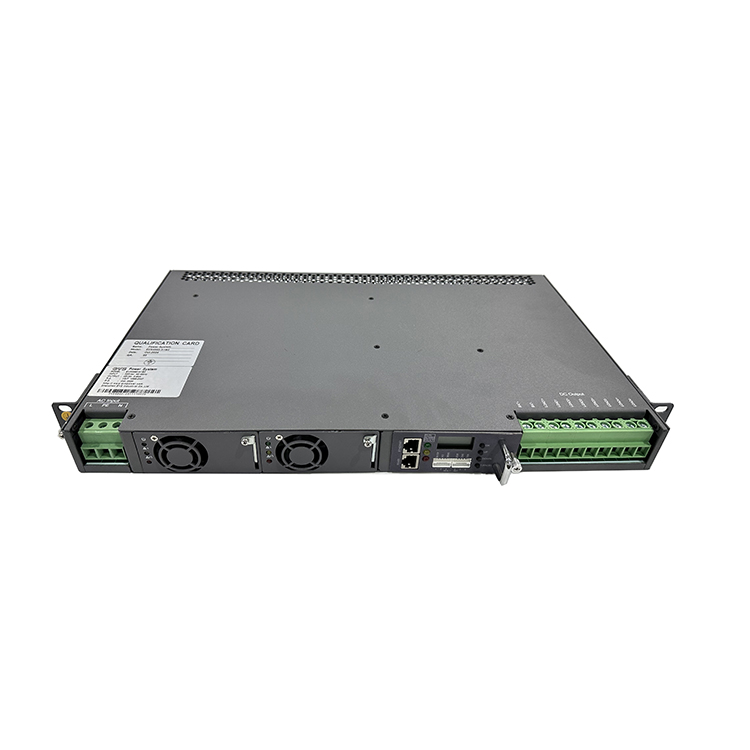

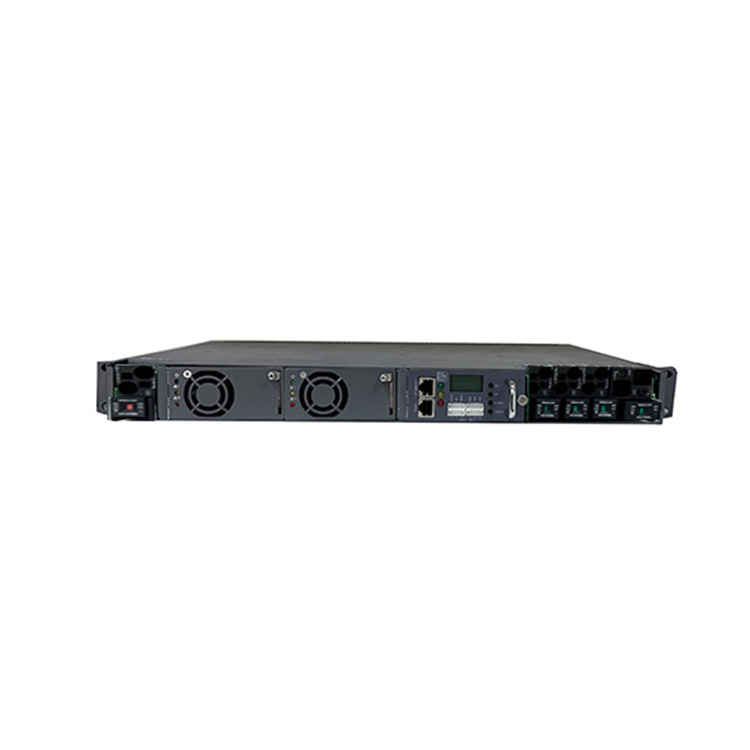

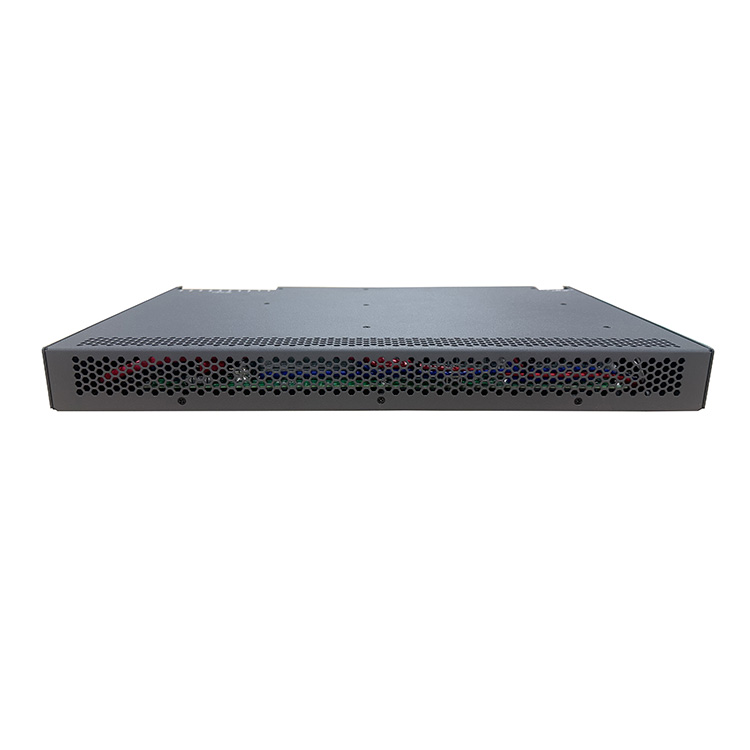

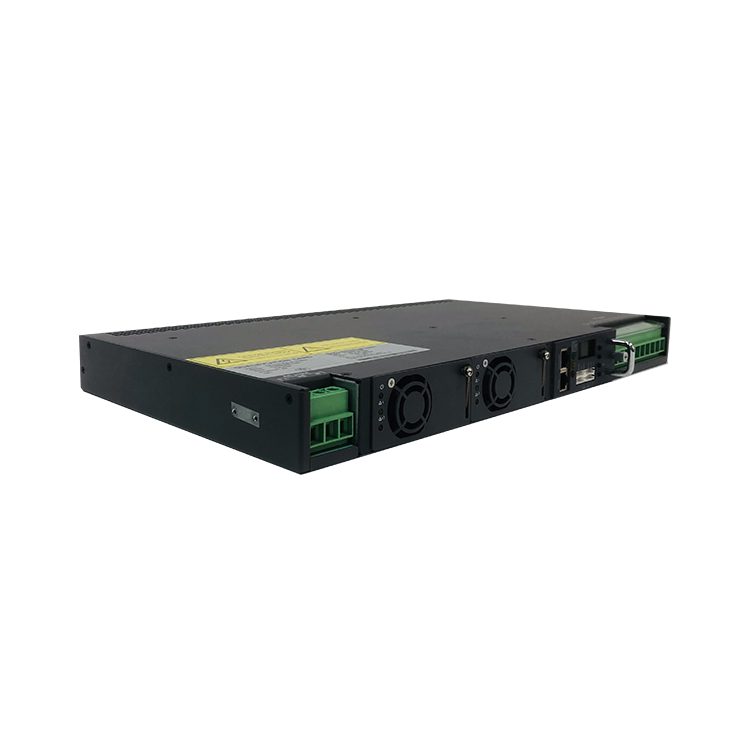

Single-Phase 230V to 24V DC Power Supply 60A Rectifier for Industrial Power Plants 1U Rack-Mounted Module Switching Power System
1 / 5
Single-Phase 230V to 24V DC Power Supply 60A Rectifier for Industrial Power Plants 1U Rack-Mounted Module Switching Power System
Wide voltage input range: 80 ~ 300Vac / 100-400Vdc, suitable for power grid inputs worldwide.
The system features a high power factor greater than 0.98.
Equipped with input under-voltage, input over-voltage, output over-voltage, output current limiting, output short-circuit, and over-temperature protection.
Small size, compact 1U height, 2*24V30A 230V to 24V DC Power Supply.

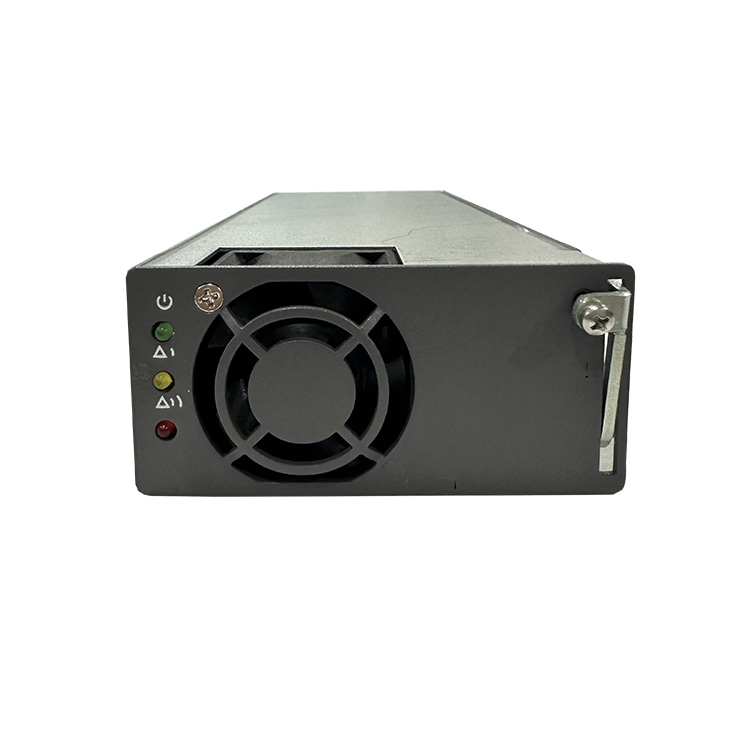

Configurable module options: 10A, 15A, 20A, 30A.
Standard 19-inch rack installation.
SNMP controller, system management, and battery management capabilities.
Provides RS485 Modbus SNMP communication interfaces.
Module anti-theft function.
Battery anti-reverse protection function.
Input current detection.
Supports hot-swappable replacement.
Energy-saving sleep function.
Independent lightning protection unit design (optional).
The power supply can be installed in any standard 19-inch rack independently.
230V to 24V DC Power Supply Application
Small scale program controlled exchanges
Access network
Transmission equipment
Mobile communication
Satellite communication ground station
Microwave communication
Configuration Details
Optional Configuration
Rectifier Module
Module Max
Distribution
Monitoring
Remark
Configuration
30A
1-2 pcs
AC distribution: AC220V input,
Load output: 30A-60A
Monitor
-
Working Principle
Performance Index
Input Specifications
Parameter
Min.
Rated
Max.
Unit
Note
Rated working voltage range
-
110/220
-
Vac
-
Input voltage range
90
220
290
Vac
Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Input frequency
43
50
67
Hz
-
Battery input
21
26.8
29
Vdc
Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)
Output Specifications
Parameter
Min.
Rated
Max.
Unit
Note
Output voltage range
21
26.8
29
Vdc
-
Output current range (max. current)
0
-
60
A
Input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.
Regulation accuracy
-
-
±1
%
-
Load regulation
-
-
±1
%
-
Source regulation
-
-
±1
%
-
Current sharing regulation
-
-
±5
%
-
Ripple (peak – peak value)
-
-
200
mv
Network 20MHz testing.
Output efficiency
91
93
-
%
220Vac Input
Mechanical Properties
Dimensions: 482.6mm (W) × 270mm (D) × 43.6mm (H)
Production Facility
Quality Assurance
Packaging & Shipping
Related Products
Frequently Asked Questions
What is the input voltage range of this DC power supply?
This system supports a wide AC input range of 80 to 300Vac, or a DC input range of 100 to 400Vdc, making it highly adaptable to various global power grids.
What safety protection mechanisms are built into the system?
The system features comprehensive built-in protection capabilities, including input under-voltage, input over-voltage, output over-voltage, output current limiting, output short-circuit, and over-temperature protection.
Is this system hot-swappable?
Yes, the system is designed to support hot-swapping, allowing you to insert or replace rectifier modules without powering down the system.
Can the output configuration be customized?
Yes, it features a configurable module setup with module options of 10A, 15A, 20A, and 30A. In a standard configuration with 1-2 modules, the system supports a total load output capacity of 30A to 60A.
What communication interfaces are supported for monitoring?
The power supply system provides RS485 Modbus and SNMP interfaces to enable smart monitoring, remote system management, and comprehensive battery status monitoring.
What are the dimensions and mounting specifications of the unit?
The device features standard 19-inch rack-mount mechanical dimensions of 482.6mm (W) × 270mm (D) × 43.6mm (H) at a compact height of 1U.
