220Vdc 40A 10000W Power Supply Converter 220 AC/DC Modular Rectifier Industrial Use 380V Input Voltage Single 92% Efficiency
1 / 5
220Vdc 40A 10000W Power Supply Converter 220 AC/DC Modular Rectifier Industrial Use 380V Input Voltage Single 92% Efficiency
220 ac to 220v dc converter 220Vdc 40A 10000W power supply with 10A Modular Rectifier
220 ac to 220v dc converter adopts active power factor compensation technology, power factor up to 0.99. The input voltage of normal operating range is as wide as 90 ~ 290Vac & 110-395Vdc. The rectifier modules adopt full bridge soft switching technology, efficiency can reach above 92%.
Ultra-low radiation: Adopt advanced electromagnetic compatibility design, the rectifier module can meet requirements for conducted and radiated interference of "the communication power equipment electromagnetic compatibility Limits and methods of measurement" (People's Republic of China telecommunications industry standard YD/T983).
Safe and reliable: System design in full compliance with safety standards EN60950 and GB4943.

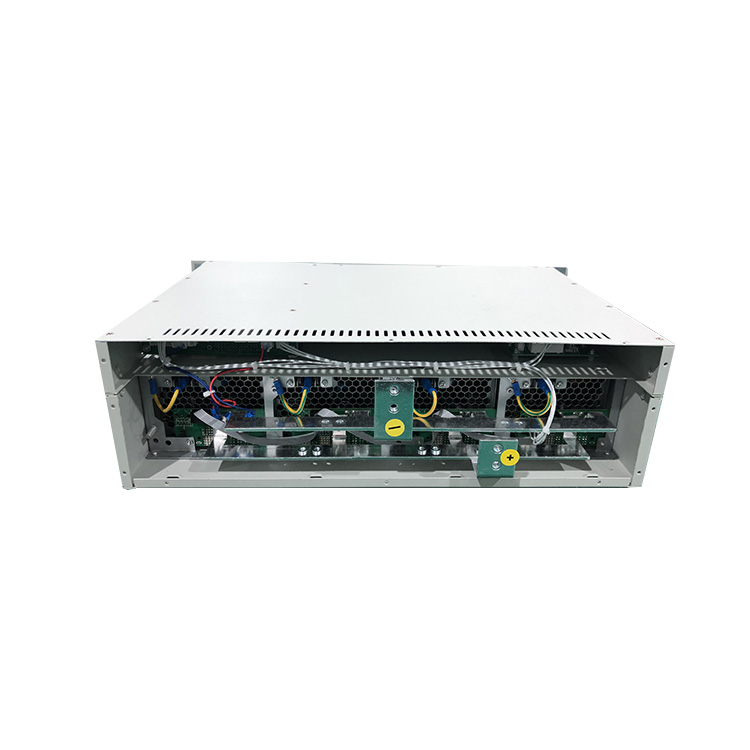

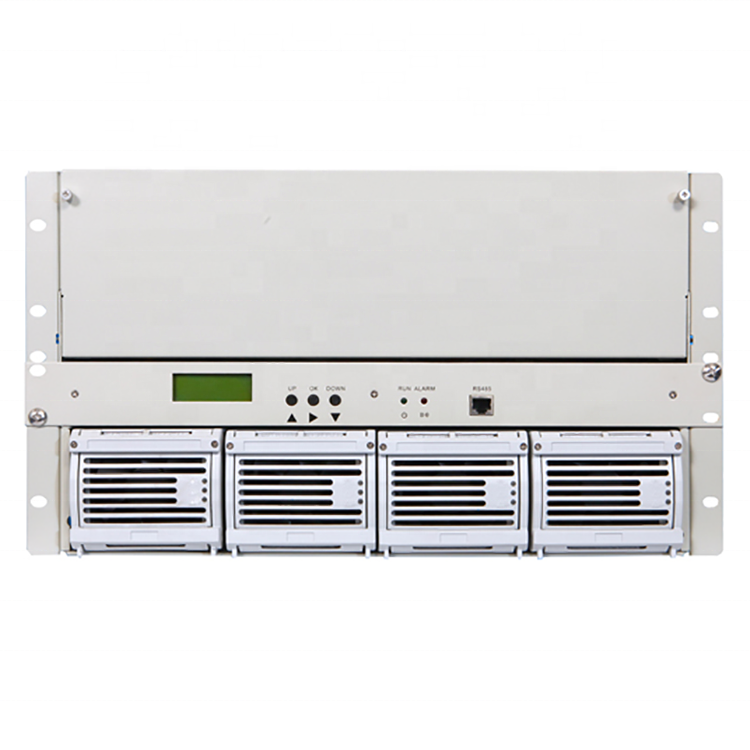

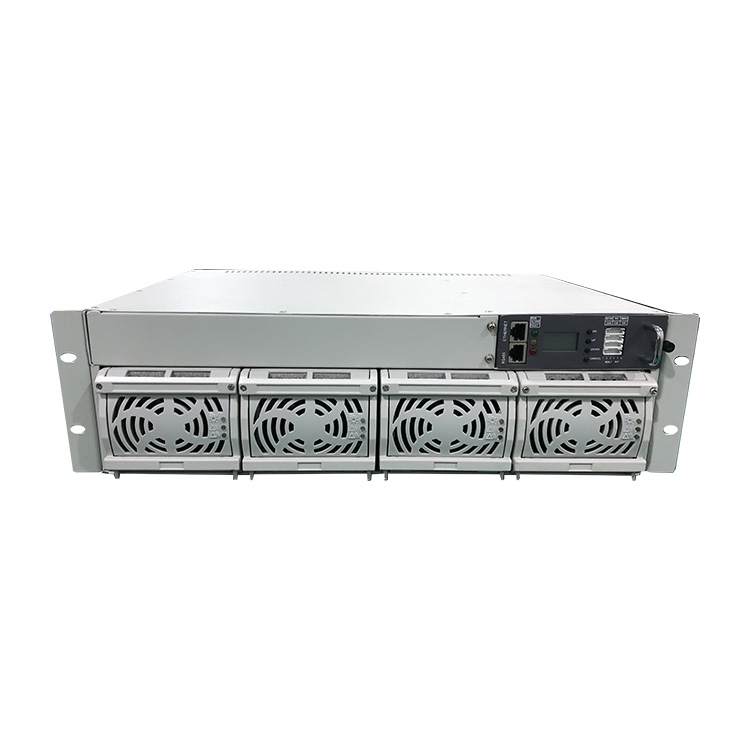

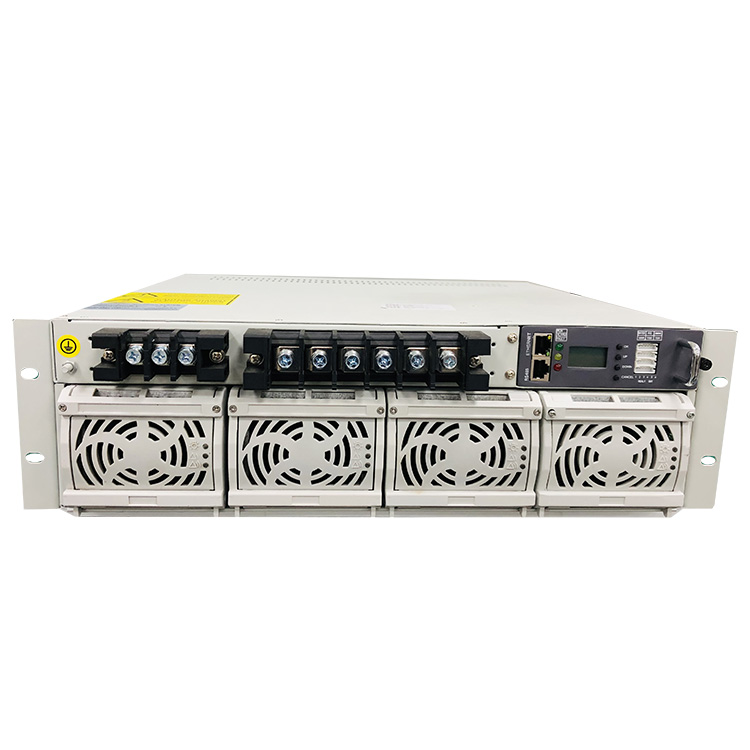

220 ac to 220v dc converter use advanced modular design, with multiple rectifier modules together in one 19'' rack box. Makes it flexible to provide enough power supply for Telecom and Power Industrial equipment use.
The power output of rectifier can flexible configuration, depending on equipped different quantities of rectifier modules. It can provide stable DC output to regular load, battery float charging, and battery equalized charging. Output constant DC charge power, works automatically according to the load demands.
220 ac to 220v dc converter features
Core Specifications
Modular design, N + 1, easy for expansion
Hot-swappable modules, safe and convenient replacement
Free output voltage regulation
Free output current limit setting
With a standard RS485/SNMP interface
CE conformity
Battery Management
Real-time battery voltage monitoring
Charge and discharge current tracking
Automatic control for boost charge and float charge
Charge temperature compensation
Various Protection Function
Input and output over / under voltage protection
Over temperature protection
Short circuit protection
220 ac to 220v dc converter Output
Parameter
Min.
Rated
Max.
Unit
Note
Output voltage range
180
220
280
Vdc
Output current range(max.current)
0
40
A
Regulation accuracy
±1
%
Load regulation
±1
%
Source regulation
±1
%
Current sharing regulation
±5
%
Ripple ( peak – peak value)
200
mv
Network 20MHz testing.
Rectifier module
24Vdc/50A
48Vdc/50A
125Vdc/20A

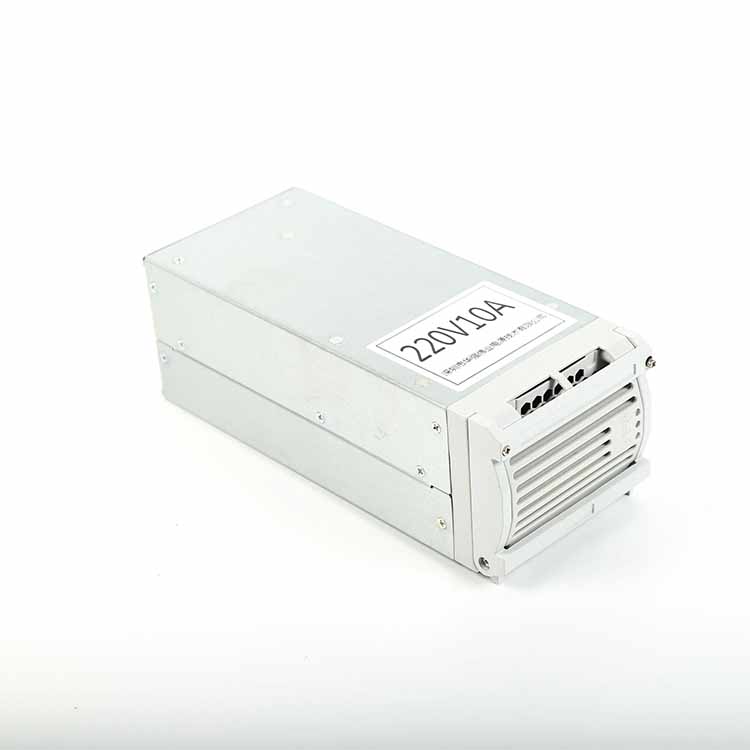

220Vdc/10A
Input
90 ~ 290Vac&110-395Vdc&380Vac
Output
50A 100A 150A 200A
50A 100A 150A 200A
20A 40A 60A 80A
10A 20A 30A 40A
hot sale
Frequently Asked Questions
What is the efficiency of the 220 ac to 220v dc converter?
The rectifier modules utilize advanced full bridge soft switching technology, allowing the system efficiency to reach above 92%.
What input voltage range does this modular rectifier support?
It features a wide normal operating input voltage range of 90 ~ 290Vac, 110-395Vdc, and also supports 380Vac.
Does this power supply system support N+1 expansion?
Yes, it uses a modular N + 1 design with hot-swappable modules, which allows for safe, easy expansion and convenient replacement.
What battery management options are integrated?
The system features real-time battery voltage monitoring, charge and discharge current tracking, charge temperature compensation, and automatic control for boost and float charge.
What safety and protection features are built into this converter?
The converter includes protection against input/output over and under voltage, over temperature, and short circuits, fully complying with safety standards EN60950 and GB4943.
Does it support standard remote monitoring interfaces?
Yes, the power supply converter comes equipped with a standard RS485 and SNMP interface for remote communication and management.
