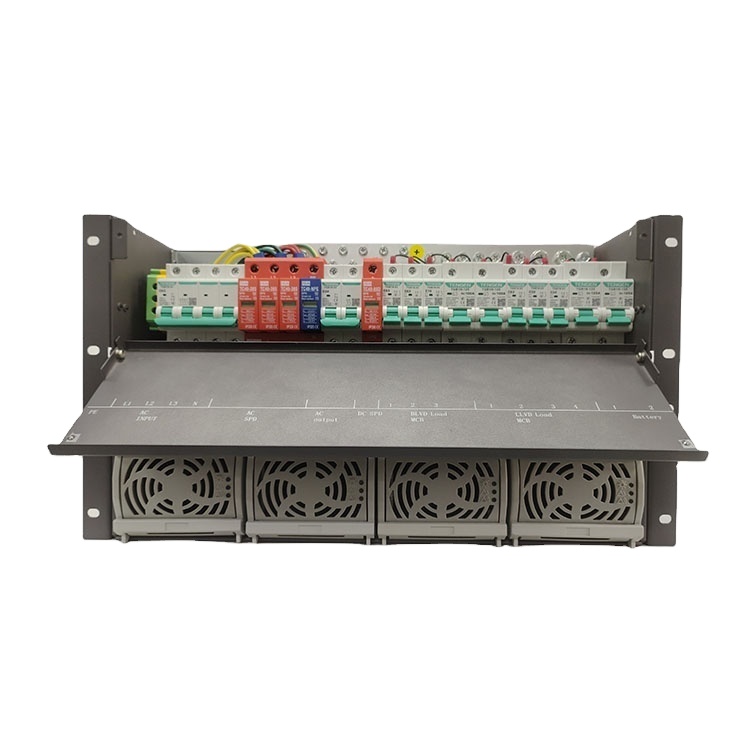

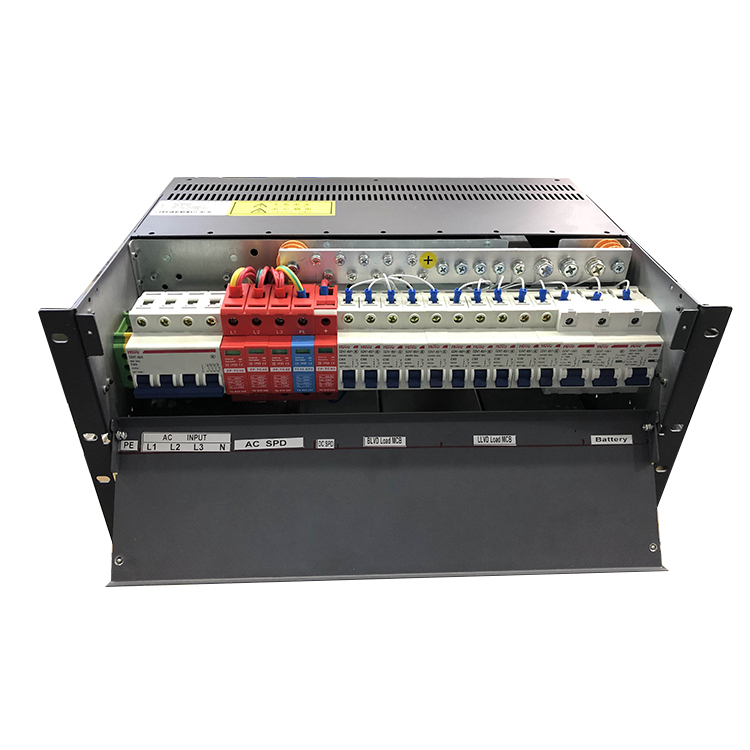

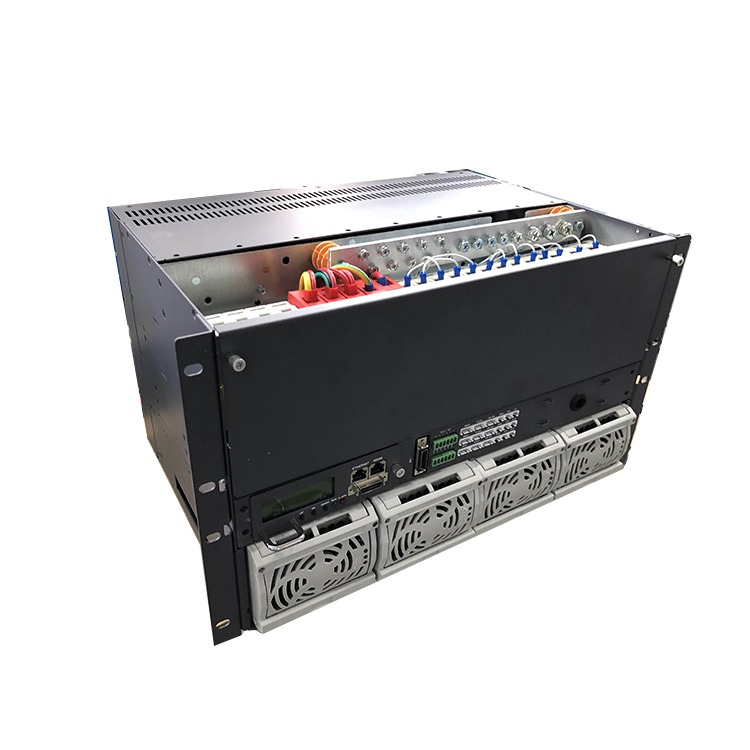

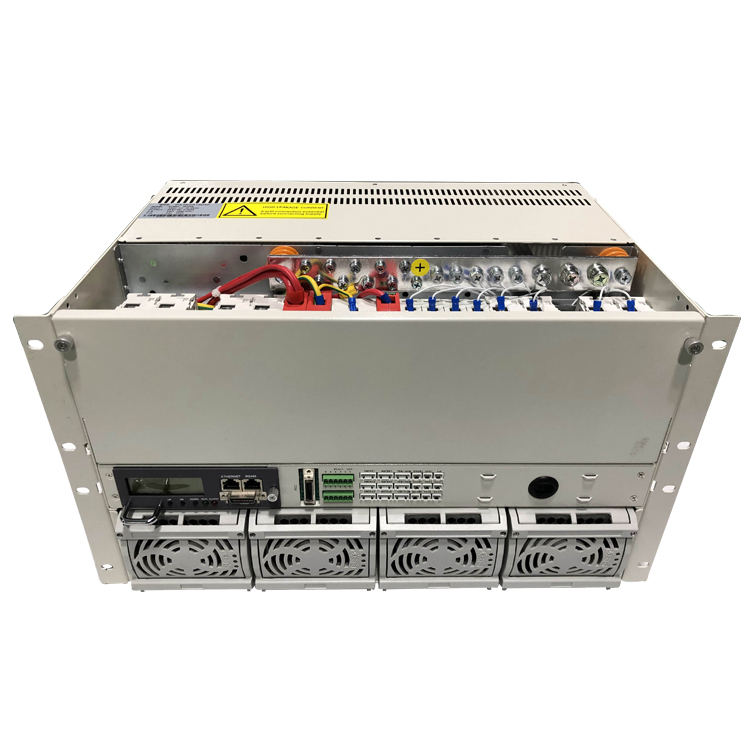

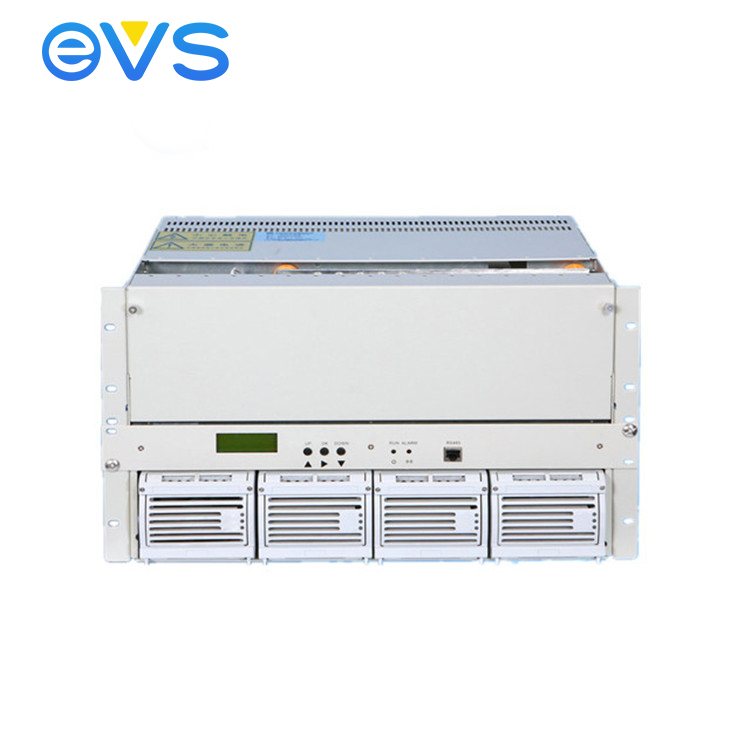

EVS DC Power Supply Rectifier System
EVS’s Rectifier System are designed for wireless broadband access, fixed-line applications, Internet backbone and datacenters. Our reliable, energy-efficient telecom power solutions protect against grid power interruptions and fluctuations and help operators reduce OPEX and their carbon footprint.
This model of Rectifier System is for communication, Output voltage 24V/48V/110V/220V dc, Output current 0-200A; Its features include input over/under-voltage protection, output over-current protection, output over-voltage protection.
| AC Input properties | |
| Input voltage (Vac) | 380V/220VAC |
| Input voltage range (Vac) | 90V-290VAC |
| Rated input frequency | 50 / 60HZ |
| fluctuation range | 45Hz ~ 66Hz |
| DC Output properties | |
| Rated output current (A) | 50A |
| Rated output power (W) | 1500W |
| Rated output voltage (V) | 24VDC |
| Output voltage range (V) | 20-30VDC |
| All charge voltage (V) | 28.2VDC |
| Float voltage (V) | 26.8VDC |
| Output voltage accuracy (V) | ≤0.6% |
| Output ripple voltage | ≤200mV <0-20mHZ> |
| Power Factor | 0.99 |
| Dielectric strength Output-chassis | 500Vdc |
| Leakage current | ≤1.5mA |
| Effectiveness | 93% |
| Environment | |
| Dielectric strength | 1500Vac,1min |
| Noise (1 meter) | ≤40dB |
| Use the ambient temperature | -25℃ ~ +55℃ |
| Humidity | 0~90%, No condensation |
| Use altitude (m) | ≤2000 |
| For more voltage customization needs, click consult | |
| AC Input properties | |
| Input voltage (Vac) | 380VAC/220VAC |
| Input voltage range (Vac) | 90V-290VAC |
| Rated input frequency | 50 / 60HZ |
| fluctuation range | 45Hz ~ 65Hz |
| DC Output properties | |
| Rated output current (A) | 50A |
| Rated output power (W) | 2900W |
| Rated output voltage (V) | 48VDC |
| Output voltage range (V) | 42-58VDC |
| All charge voltage (V) | 53.5VDC |
| Float voltage (V) | 57.2VDC |
| Output voltage accuracy (V) | ≤0.6% |
| Output ripple voltage | ≤200mV <0-20mHZ> |
| Power Factor | 0.99 |
| Dielectric strength Output-chassis | 500Vdc |
| Leakage current | ≤1.5mA |
| Effectiveness | 93% |
| Environment | |
| Dielectric strength | 1500Vac,1min |
| Noise (1 meter) | ≤40dB |
| Use the ambient temperature | -25℃ ~ +55℃ |
| Humidity | 0~90%, No condensation |
| Use altitude (m) | ≤2000 |
| For more voltage customization needs, click consult | |
| AC Input properties | |
| Input voltage (Vac) | 380V /220VAC |
| Input voltage range (Vac) | 90V-290VAC |
| Rated input frequency | 50 / 60HZ |
| fluctuation range | 45Hz ~ 65Hz |
| DC Output properties | |
| Rated output current (A) | 20A |
| Rated output power (W) | 2400W |
| Rated output voltage (V) | 110VDC |
| Output voltage range (V) | 90-156VDC |
| All charge voltage (V) | 121VDC |
| Float voltage (V) | 127VDC |
| Output voltage accuracy (V) | ≤0.6% |
| Output ripple voltage | ≤200mV <0-20mHZ> |
| Power Factor | 0.99 |
| Dielectric strength Output-chassis | 500Vdc |
| Leakage current | ≤1.5mA |
| Effectiveness | 93% |
| Environment | |
| Dielectric strength | 1500Vac,1min |
| Noise (1 meter) | ≤40dB |
| Use the ambient temperature | -25℃ ~ +55℃ |
| Humidity | 0~90%, No condensation |
| Use altitude (m) | ≤2000 |
| For more voltage customization needs, click consult | |
| AC Input properties | |
| Input voltage (Vac) | 220VAC |
| Input voltage range (Vac) | 90V-290VAC |
| Rated input frequency | 50 / 60HZ |
| fluctuation range | 45Hz ~ 65Hz |
| DC Output properties | |
| Rated output current (A) | 10A |
| Rated output power (W) | 2400W |
| Rated output voltage (V) | 220VDC |
| Output voltage range (V) | 180-286VDC |
| All charge voltage (V) | 243VDC |
| Float voltage (V) | 253VDC |
| Output voltage accuracy (V) | ≤0.6% |
| Output ripple voltage | ≤200mV <0-20mHZ> |
| Power Factor | 0.99 |
| Dielectric strength Output-chassis | 500Vdc |
| Leakage current | ≤1.5mA |
| Effectiveness | 93% |
| Environment | |
| Dielectric strength | 1500Vac,1min |
| Noise (1 meter) | ≤40dB |
| Use the ambient temperature | -25℃ ~ +55℃ |
| Humidity | 0~90%, No condensation |
| Use altitude (m) | ≤2000 |
| For more voltage customization needs, click consult | |
