Features with the following specifications:

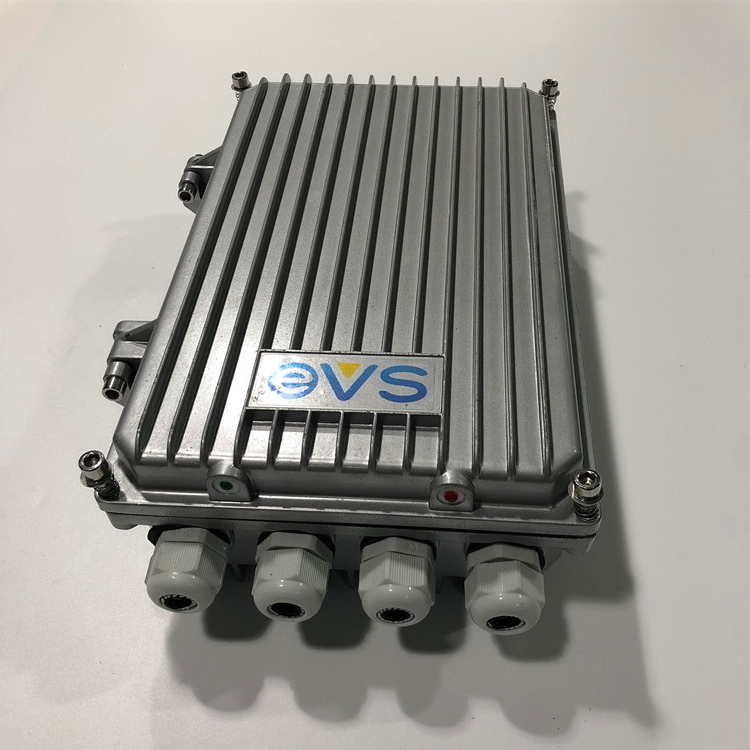

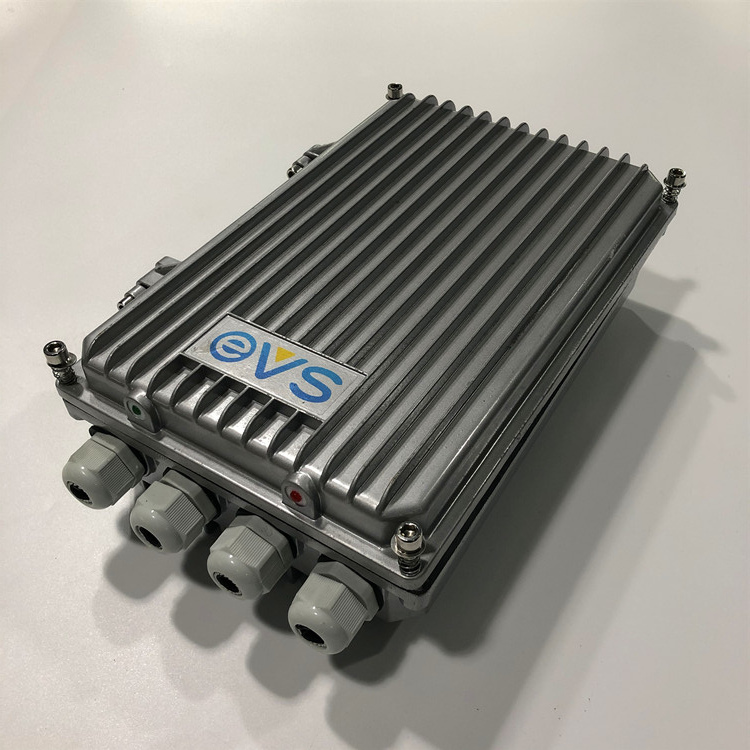

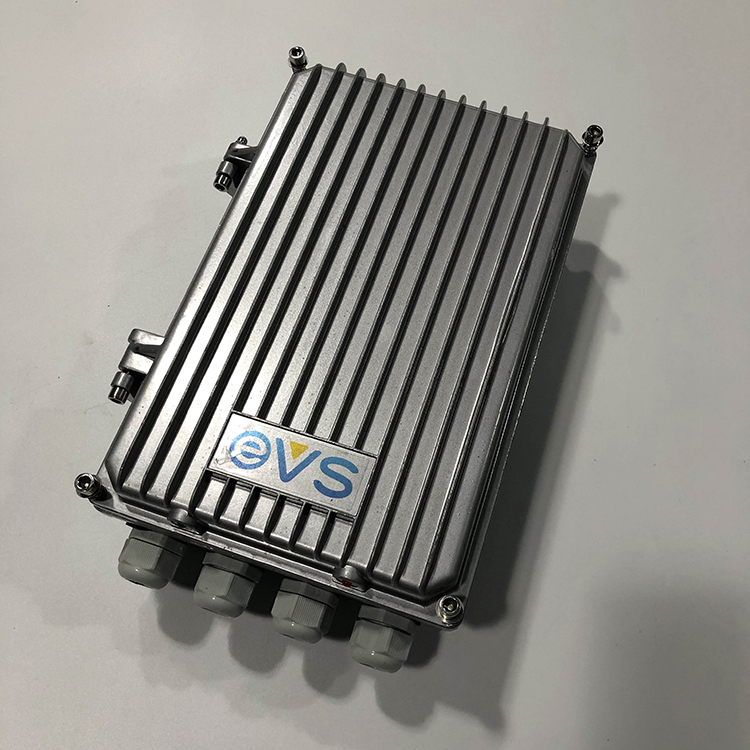

FSU 2000w is a kind of AC / DC (or DC / DC) high-power power supply with single output. The whole power supply adopts the latest circuit design, with compact structure and reliable performance. The whole machine has high stability precision and high output efficiency. Wide range of input voltage, input with over-voltage protection, output with short-circuit protection, over-current protection and over temperature protection, cooling system adopts natural heat dissipation. The whole power supply is designed in strict accordance with the requirements of safety regulations, and meets the requirements of information technology equipment safety standards. Evs-1500w has the following characteristics: it has d-level lightning protection capability, outdoor high dust-proof and waterproof design, protection grade IP65, direct contact heat dissipation at the bottom, metal shell, power shell and cable connector need to be equipped with anti off screw, supporting four installation methods of wall hanging, holding pole, steel belt holding pole and landing.
| Parameter |
Min. |
Rated |
Max. |
Unit |
Note |
| Rated working voltage range |
- |
110/220 |
- |
Vac |
- |
| Input voltage range |
90 |
220 |
290 |
Vac |
Three-phase five-wire input phase to phase 380V / relative zero line 220VAC |
| Output voltage range |
42 |
48 |
58 |
Vdc |
- |
Factory & Production Information
Frequently Asked Questions
QWhat are the primary characteristics of the FSU 2000W power supply?
The FSU 2000W is a high-power single-output AC/DC (or DC/DC) power supply. It utilizes advanced circuit designs to deliver compact dimensions, highly stable precision, and optimal output efficiency.
QWhat protection mechanisms does this telecom power supply feature?
It comes equipped with input over-voltage protection, output short-circuit protection, over-current protection, and over-temperature protection. Additionally, it features D-level lightning protection capability.
QIs the Evs-1500w power supply suitable for outdoor environments?
Yes, the Evs-1500w is designed specifically for outdoor applications with a protection grade of IP65, providing high dust-proof and waterproof capabilities. It also features a durable metal shell and direct contact heat dissipation at the bottom.
QWhat installation methods are supported?

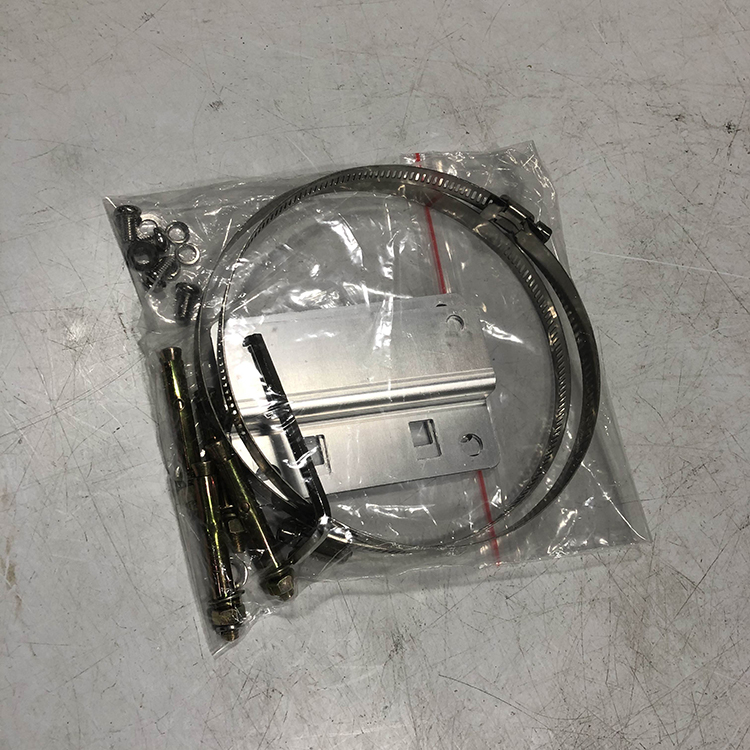

This power supply supports four versatile mounting configurations: wall hanging, holding pole, steel belt holding pole, and landing installation.
QWhat are the input and output voltage parameters for this system?
The system operates at a rated input voltage of 110/220 Vac with a range of 90 to 290 Vac. The output voltage range is adjustable from 42 to 58 Vdc, with a rated output of 48 Vdc.
QHow does the cooling system operate?
The power supply cooling system utilizes natural heat dissipation, designed in combination with bottom direct-contact heat dissipation to maintain optimal operating temperatures without loud fans.
