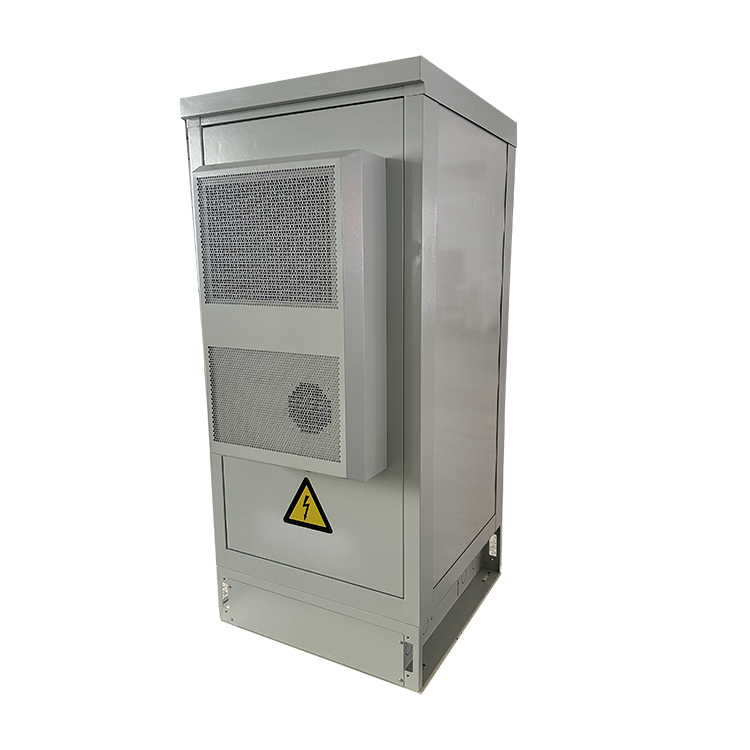

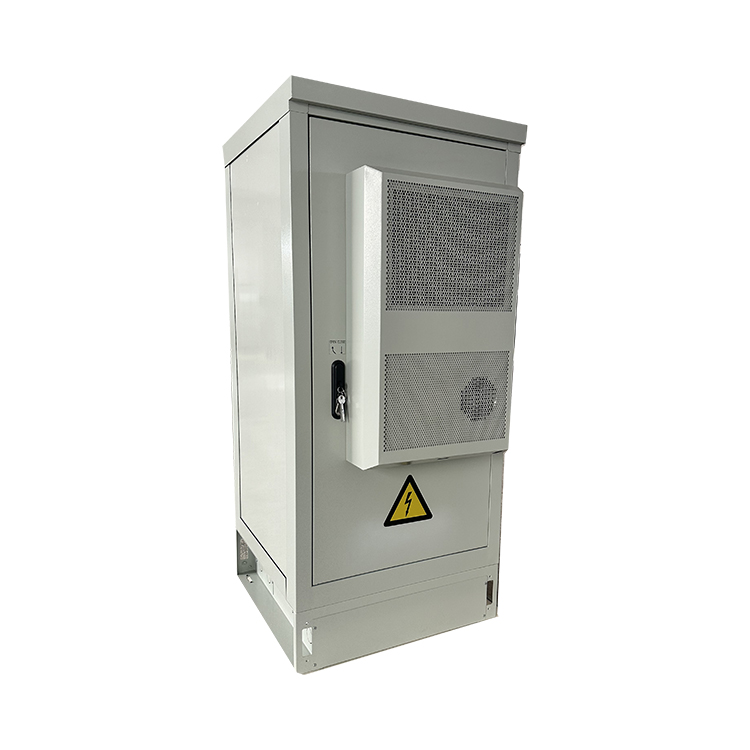

IP55 Weatherproof Outdoor Telecom Cabinet with AC220V air conditioner

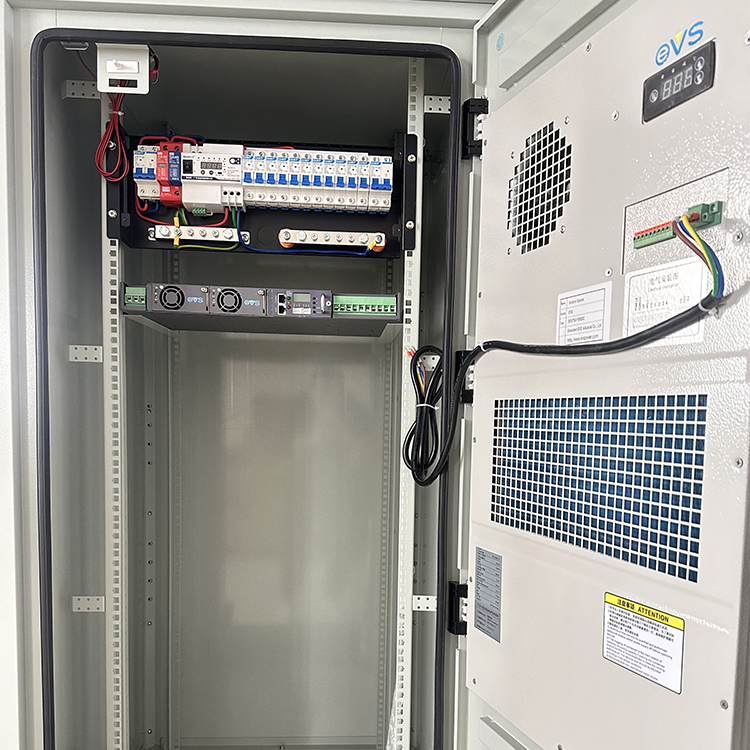

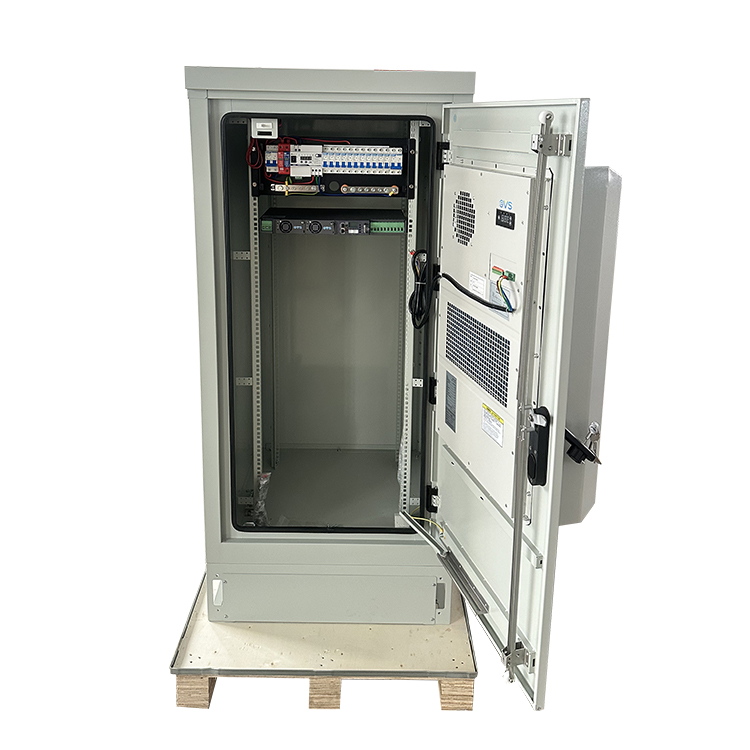

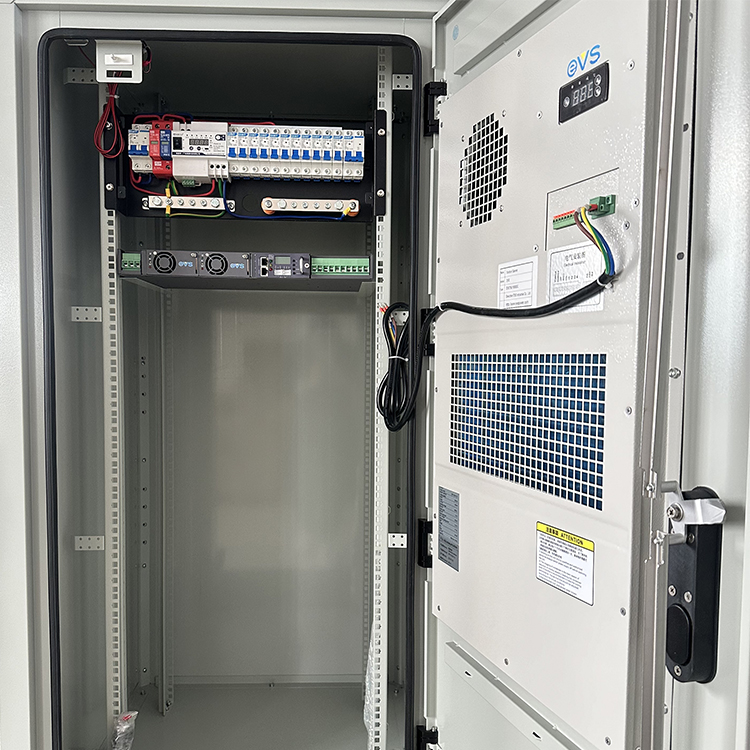

Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.
Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
Can be installed in any difficult places include the top of mountain and the roof of buildings.
Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
Support custom-made.
| 1 | Cabinet Outer Size | H*W*D 1750*750*750mm |
| 2 | Cabinet Inner Size | Internal capacity: 19" Outdoor Telecom Cabinet |
| 3 | Internal Capacity | 40U, 19/21 inch adjustable rack |
| 4 | Material | Left, right and back part are color steel plate, other parts are Galvanization plate, insulation thickness 45mm, insulation cotton material is PEF |
| 5 | Material Option | Galvanized iron (Optional: Aluminum, stainless steel, SPCC cold-rolled steel) |
| 6 | Cooling System | 1000W refrigerating capacity compressor type air conditioner, use 220VAC power supply (Optional: fan cooling, heat exchanger, ventilation window or no cooling) |
| 7 | Cabinet Base | 150mm H, thickness 2.0mm |
| 8 | Cable Entry | Under bottom in and out Φ50*5 |
| 9 | Security Design | Embedded door, embedded hinges, 3-point security lock |
| 10 | Protection Level | IP55 |
| 1 | Application | Outdoor cooling |
| 2 | Cooling Capacity | 500W 1000W 1500W |
| 3 | EER (Energy Efficiency Ratio) | 3.0 |
| 4 | Input Voltage | 110V / 220V |
| 5 | Temperature Control | Smart Thermostat, can be automatically adjusted according to cabin temperature |
| 6 | Protection Level | IP55 |
| 7 | Way of Communication | RS485 |
