EVS Powers
1 / 5
This model of Mini DC UPS is specifically engineered for telecommunication systems. Featuring an output voltage of +12V and output current range of 0-30A, it integrates comprehensive protection mechanisms including input over/under-voltage protection, output over-current protection, and output over-voltage protection.
The EVS Power Series™ represents a highly reliable, versatile power supply configuration. Capable of being deployed as a standalone unit or configured for full redundancy, the series is engineered for Universal AC to DC power supply applications worldwide.
The EVS Power Series delivers a cost-effective, efficient, and dependable solution tailored for diverse AC to DC power conversion requirements.
| Input Voltage | Universal 90VAC to 264VAC |
|---|---|
| Input Frequency | 47Hz to 63Hz |
| Operational Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 85°C |
| Cooling | Free Air Convection |
| Overload Protection | Auto-Recovery |
| Efficiency | 80-90% Typical |
| DC OK Signal | TTL Logic, SNMP/RS485 Interface, or Status LEDs |
| Design Compliance | UL60950, CSA 22.2 No. 234, EN60950 |
|---|---|
| EMI Standards | EN55022 "Class B" |
| EMS Standards | EN61000-4-2, -3, -4, -5, -6, -8, -11 |
| Harmonics | EN61000-3-2 Class D |
This Mini DC UPS model delivers a stable output voltage of +12V and supports an output current range from 0A to 30A, making it ideal for high-demand telecommunication applications.
The system features comprehensive safety protection mechanisms, including input over/under-voltage protection, output over-current protection, and output over-voltage protection to ensure secure operational performance.
Yes. The EVS Power Series™ is designed with a universal AC input voltage range of 90VAC to 264VAC (47Hz to 63Hz), allowing it to operate efficiently on power grids worldwide.
The power supply supports RS485 and RS422 protocols for remote monitoring and management. It also features status indicators, low voltage alarms, and data line alarm systems with ACO (Alarm Cut Off) functionality.
The system complies fully with UL60950, CSA 22.2 No. 234, and EN60950 safety standards. It also meets EN55022 "Class B" EMI and EN61000 series EMS requirements.

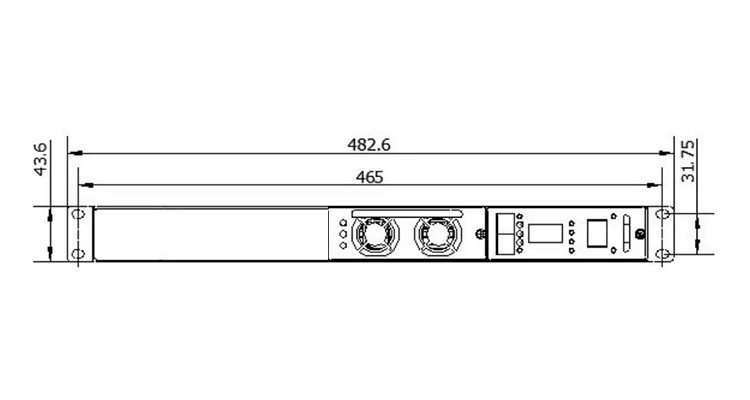

It features a highly compact, space-saving 1U low-profile height designed for standard rack-mount installation configurations.
