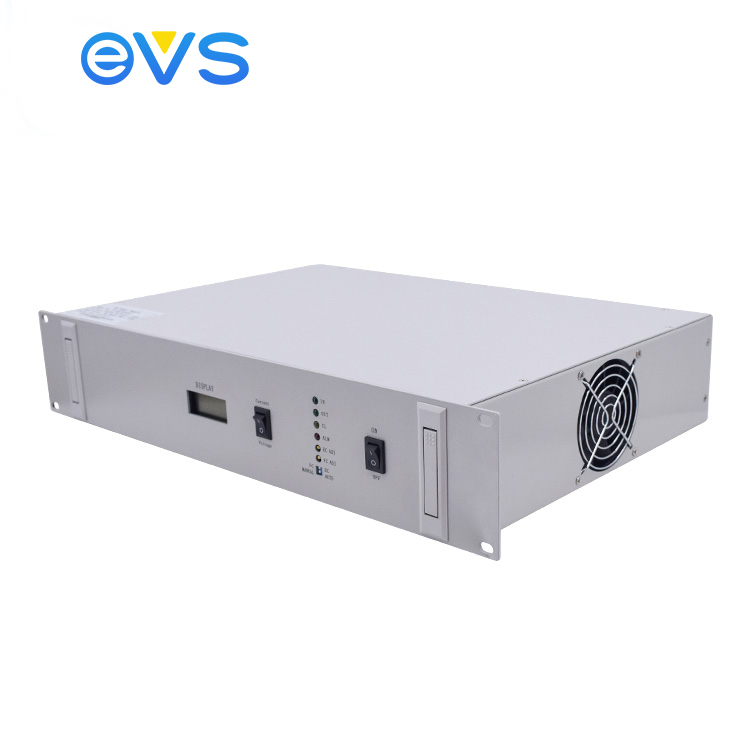

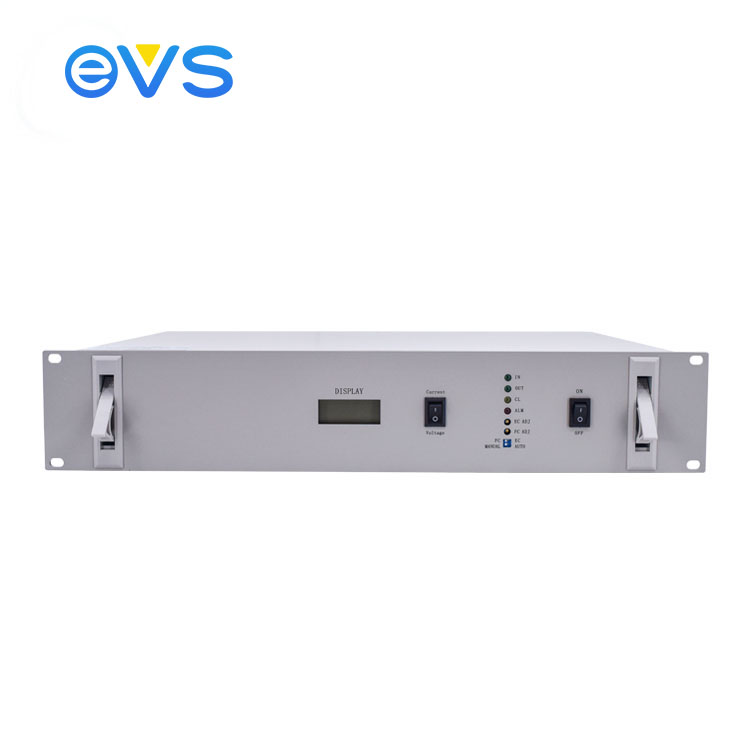

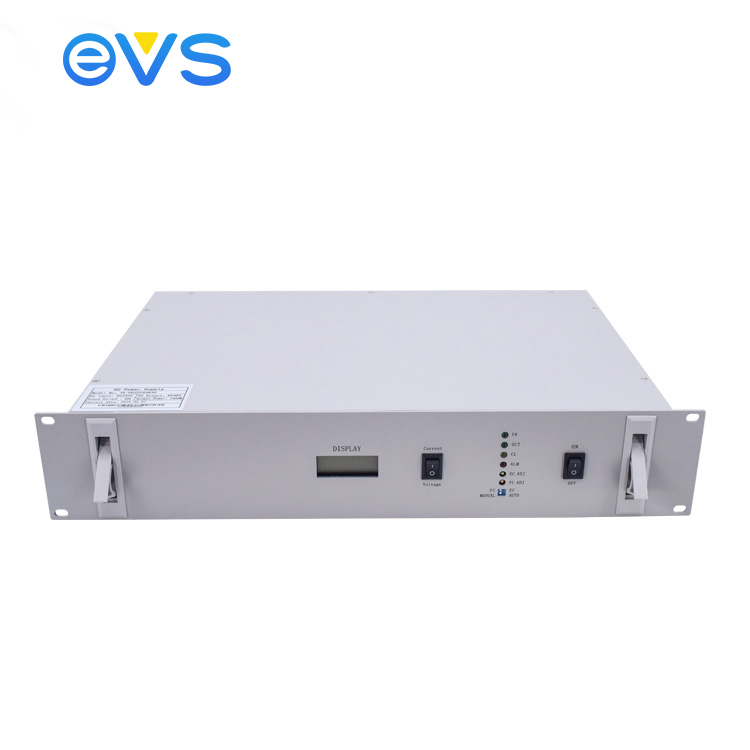

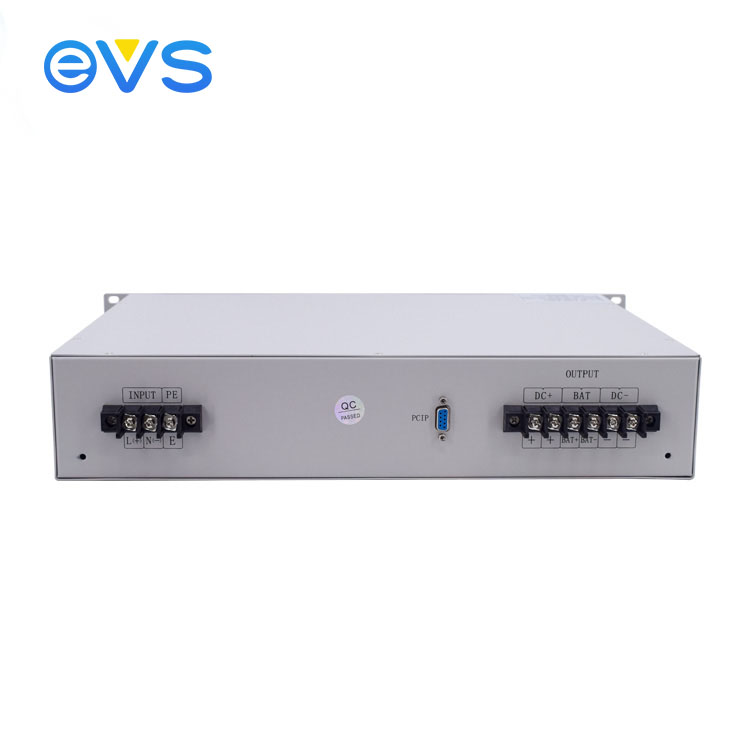

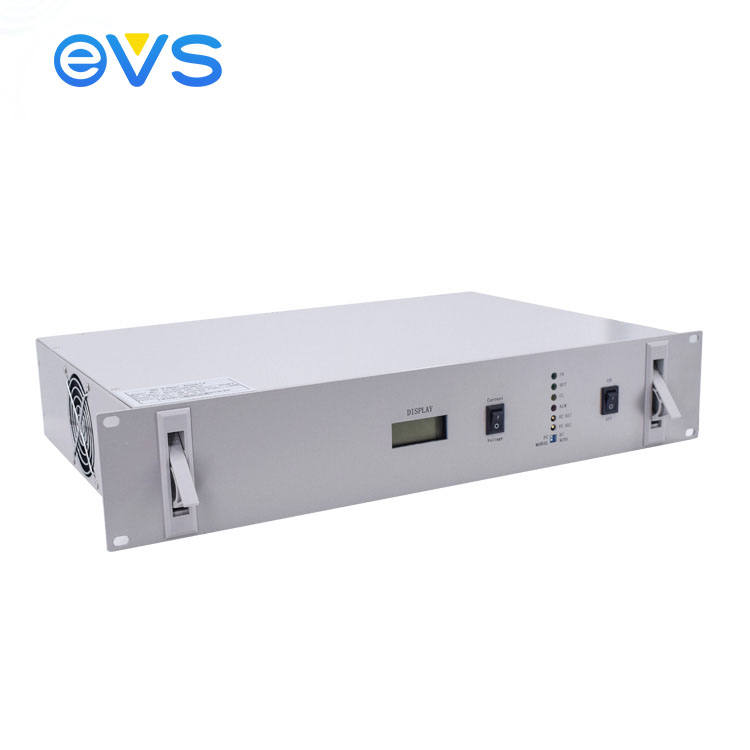

EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency
EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency
EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency
EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency
EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency
1 / 5
EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency
EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency
EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency
EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency
EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency

EVS Industrial High Conversion Rate 12V to 48V DC/DC Converter 1500W 20A Output 50/60Hz Frequency Single Output >90% Efficiency

Send Inquiry

Product Description

DC DC Converter 12V to 48V

  • Small size program-controlled switches
  • Access network
  • Transmission equipment
  • Mobile communication
  • Satellite communications ground station
  • Microwave communication power supply
1. Environmental Conditions
Working Temperature
-25 to +55 ℃
Storage Temperature
-40 ~ +80 ℃
Relative Humidity
10% ~ 90%
Altitude
3000m
Atmospheric Pressure
70 ~ 106KPa
Heat Dissipation
Wind turbine forced cooling
2. Power System Configuration
Optional Configuration Rectifier Module Module Maximum Distribution Monitoring Module Remark
Configuration 20A 1pcs DC12V input,
Load output: DC50V 20A 		- -
3. Power System Performance Index
Input Parameters
Parameter Min. Rated Max. Unit Note
Rated working voltage range - 12 - Vdc -
Input voltage range 11 13.8 16 Vdc -
Output Parameters
Parameter Min. Rated Max. Unit Note
Output voltage range 42 48 58 Vdc -
Regulation accuracy - - ±0.5 % -
Load regulation - - ±0.5 % -
Source regulation - - ±0.5 % -
Current sharing regulation - - ±0.5 % -
Ripple (peak – peak value) - - 200 mv Network 20MHz testing
SIZE: 482.6mm(W) × 300mm(D) × 88mm(H)
Product Gallery
Industrial High Conversion Rate 12V to 48V DC/DC Converter Hot Sale
Industrial High Conversion Rate 12V to 48V DC/DC Converter Why Choose Us
Frequently Asked Questions
What are the primary applications for this 12V to 48V DC-DC converter?
This converter is designed for small-size program-controlled switches, access networks, transmission equipment, mobile communication, satellite communication ground stations, and microwave communication power supplies.
What is the input and output voltage range of this unit?
The converter has a rated input voltage of 12Vdc (range: 11Vdc to 16Vdc) and an adjustable output voltage range from 42Vdc to 58Vdc, with a rated output of 48Vdc.
What cooling method does the system use?
The system utilizes active wind turbine forced cooling (fan cooling) to ensure efficient heat dissipation under continuous heavy load conditions.
How accurate is the output regulation?
The converter features highly stable output, with regulation accuracy, load regulation, source regulation, and current sharing regulation all maintained within ±0.5%.
Can this converter operate in extreme environmental conditions?
Yes, it is built to operate reliably in working temperatures ranging from -25°C to +55°C, relative humidity levels between 10% and 90%, and altitudes up to 3000m.
