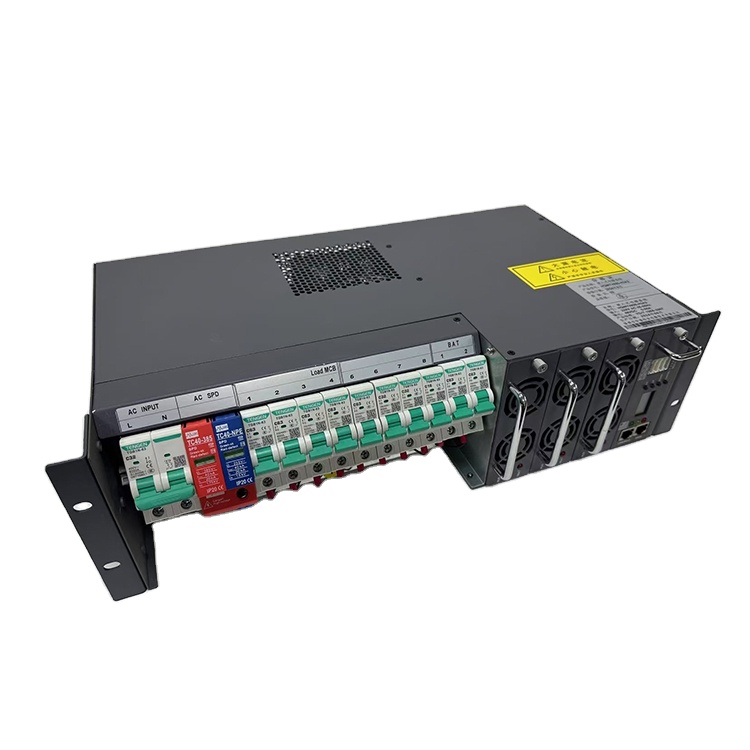

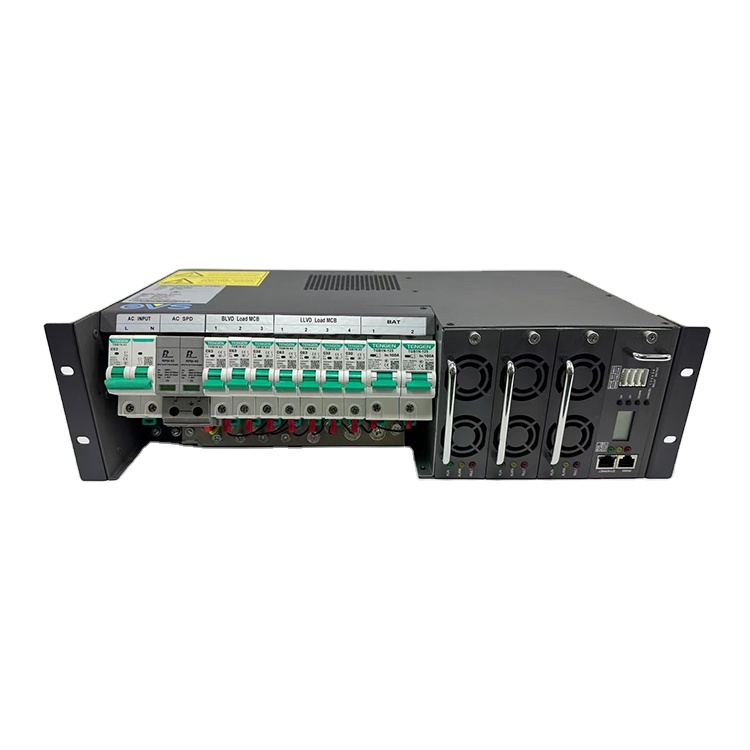

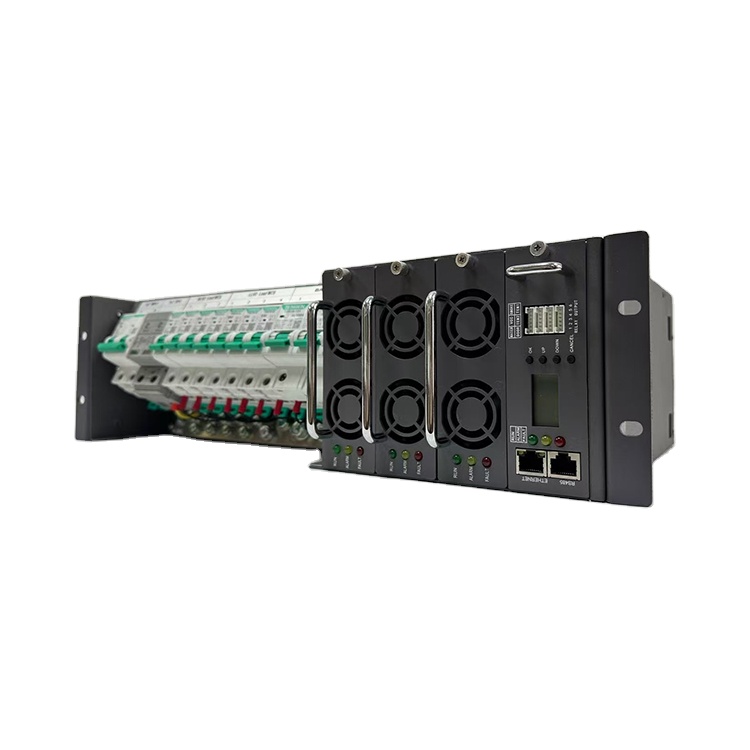

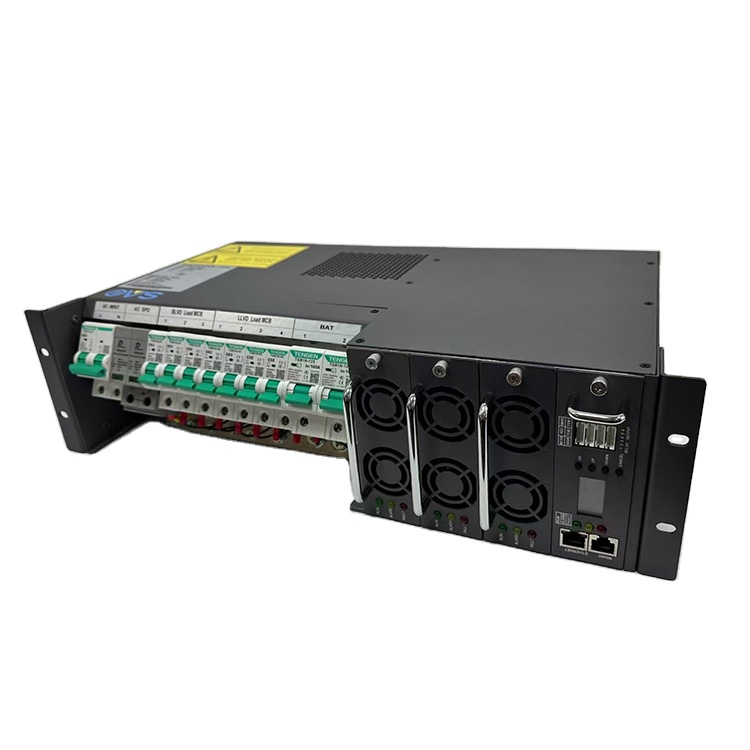

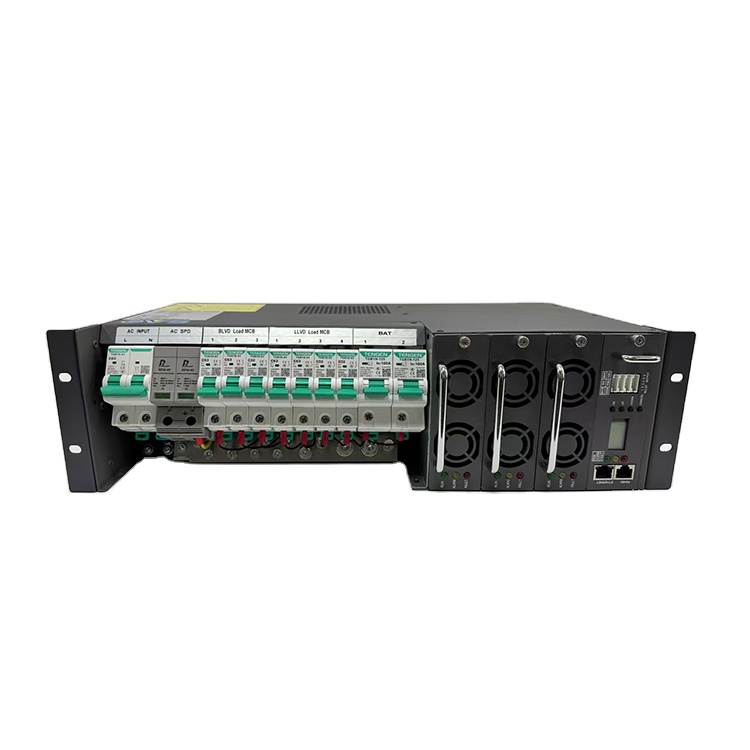

Buck/BOOST DC to DC Converter 110V 220V 380V to 24V 48V 100AMP Telecom Rectifier for Industrial New Energy Inverters Converters

1 / 5

Buck/BOOST DC to DC Converter 110V 220V 380V to 24V 48V 100AMP Telecom Rectifier for Industrial New Energy Inverters Converters

Send Inquiry

Product Description

Compact Power System

Compact power systems are designed for wireless broadband access, fixed-line applications, Internet backbone and datacenters. Our reliable, energy-efficient telecom power solutions protect against grid power interruptions and fluctuations and help operators reduce OPEX and their carbon footprint.

This Rectifier System is for communication. Output voltage -54V, Output current 0-60A. Its features include input over/under-voltage protection, output over-current protection, and output over-voltage protection.

Features & Functions

Telecom Rectifier System / Compact power system features:

Telecom power system 48v dc rectifier Power Supply with Modbus Snmp
Hot swappable and Plug and Play
N+1 redundancy, each module available in 30A@48Vdc
DC DC Converter for DC input/ DC output distribution and protection
RS485, Modbus, SNMP communication for remote control
Compact design and embedded modular system, support power system and module sleep, efficient mixing, energy saving
High Efficiency with low EMI. CE Safety and EMC certification
System has a high power factor greater than 0.98
Includes input under voltage, input voltage, output voltage, output current limiting, output short circuit, and over temperature protection
Small size, height 3U, 3*48V30A rectifier module
Inputs: 220Vdc

Telecom Power Applications

Small scale program controlled exchanges
Access network
Transmission equipment
Mobile communication
Satellite communication ground station
Microwave communication

Technical Specifications

48V DC Converter Power System Integration
Optional	Rectifier	Module Max	Distribution	Monitoring	Remark
Configuration	30A	1-3pcs	DC220V input, Load output: 30A-100A	Monitor	Specific index refer to system specification

48V DC Converter Power System Performance Index Input
Parameter	Min.	Rated	Max.	Unit	Note
Rated voltage range	-	110/220	-	Vdc	-
Input voltage range	100	220	395	Vdc	220Vdc
Input frequency	43	50	67	Hz	-
Battery input	40	48	60	Vdc	Battery pack’s positive and negative in parallel with DC output of rectifier module

Product Gallery

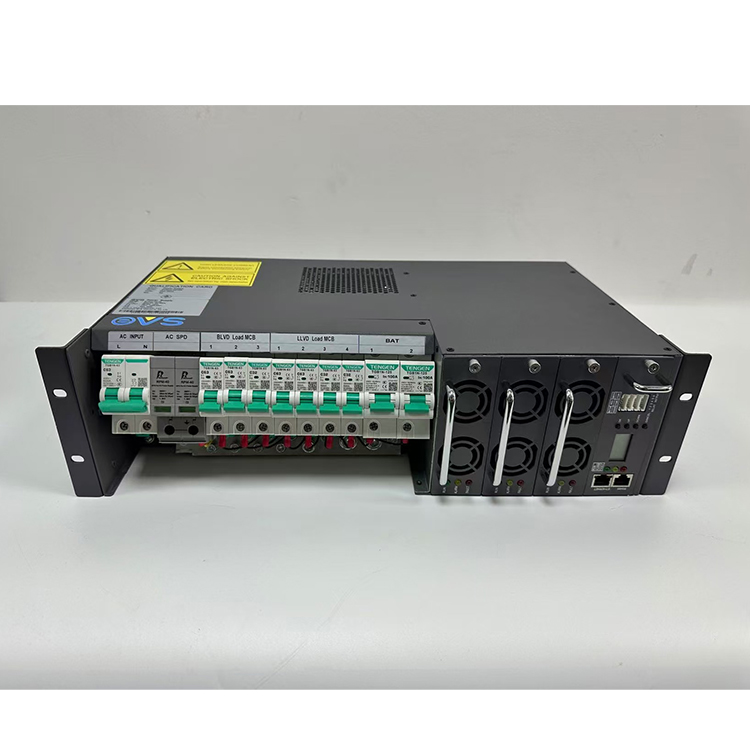

Telecom Rectifier Power System Front View

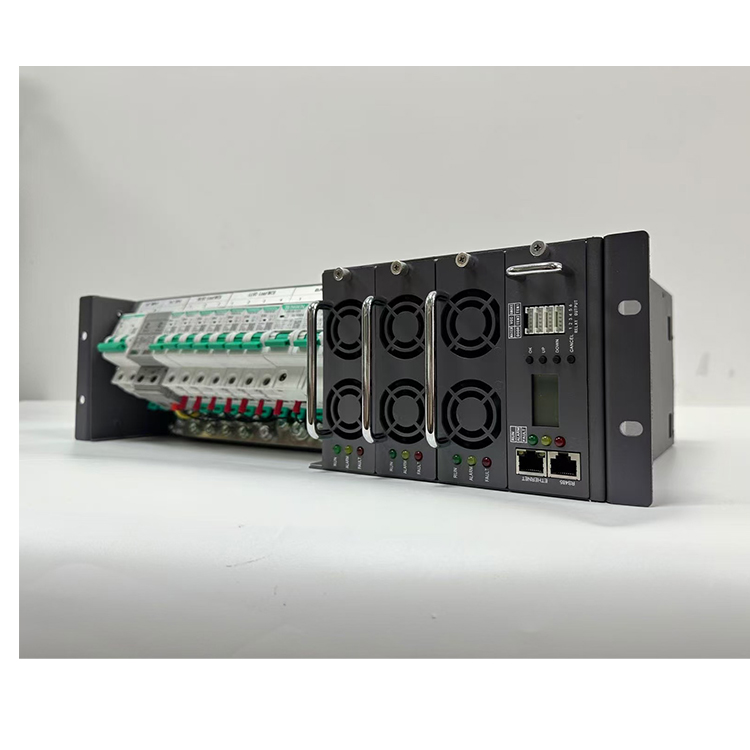

Telecom Rectifier Power System Detail View

Factory & Certifications

Installation Site

Packaging & Shipping

Frequently Asked Questions

What are the primary applications for this compact power system?

This system is designed for wireless broadband access, fixed-line applications, Internet backbone, datacenters, and various communication networks such as satellite and microwave stations.

Does the rectifier system support hot-swapping?

Yes, the system features a hot-swappable, plug-and-play design, allowing modules to be replaced or added without interrupting the power supply.

What remote communication protocols are integrated?

The system supports RS485, Modbus, and SNMP communication protocols, enabling reliable remote monitoring and control.

What built-in protection features are included?

It features input over/under-voltage protection, output over-current protection, output over-voltage protection, output short-circuit protection, and over-temperature protection.

What is the redundancy configuration of the modules?

The system supports N+1 redundancy, with each module available in a 30A @ 48Vdc rating, ensuring high reliability for critical infrastructure.

Is the system energy efficient?

Yes, it features a power factor greater than 0.98 and supports intelligent sleep modes for both the power system and modules to save energy and lower OPEX.
