Product Description

48V DC 400A 42U 19 Inch Rack Double Skin Heat Insulated Telecom Cabinet Switching Electronics Instrument Enclosure

48V DC Telecom Cabinet power system 400A 48V telecom rectifier system switching power supply cabinet

Strong Internal Structure: Equipped with a robust internal rack designed to support telecom equipment, power sources, batteries, and essential attachments.

Digital Monitoring System: Features a digital display showing temperature settings, temperature alarms, internal and external temperature parameters, and multiple alarm notifications.

Thermal & Fire Protection: Constructed using low thermal conductivity and fireproof insulation materials to ensure maximum equipment safety.

Reliable Protection & Customization: IP45 rated protection levels with options to support customized build requests.

Key Features & Technical Advantages

High reliability, maintenance-free, and fast assembly engineered specifically for harsh environments.

High level of integration within a small footprint to shorten project construction periods and lower setup costs.

Optimized thermal design providing efficient energy saving, which effectively extends battery service life.

Comprehensive alarm signal detection supporting real-time data reports and fast field setup.

No.	Specification Details	Technical Value / Material Parameters
1	Telecom cabinet inner size	HWD 2000600600mm ,internal capacity:19"*42U
2	Internal capacity	42U, 19/21 inch adjustable rack
3	Material Composition	Left, right and back parts are color steel plates. Other components are Galvanized plates with 45mm PEF insulation cotton.
4	Material Options	Galvanized iron (Optional: Aluminum, stainless steel, SPCC cold-rolled steel)
5	Cabinet base	150mm H, thickness 2.0mm
6	Cable entry	Under bottom in and out Φ50*5
7	Security design	Embedded door, embedded hinges, 3-point security lock
8	Protection level	IP20 (configured model options up to IP45)

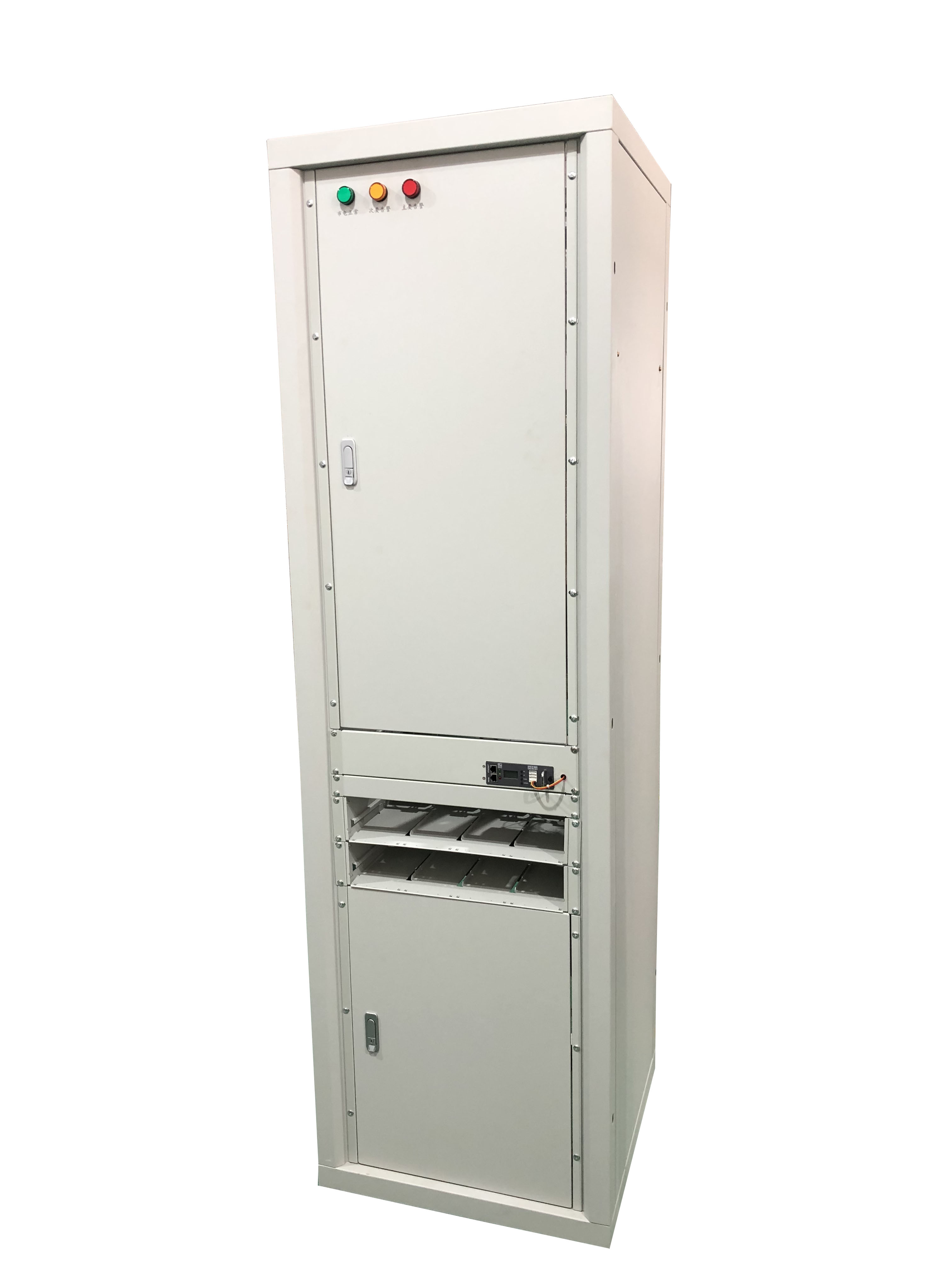

Telecom Cabinet Installation Internal View

Product Design & Construction Profiles

Thermal Ventilation & Cable Layout Diagram

External Enclosure Assembly Specifications

Frequently Asked Questions (FAQ)

What equipment can be housed inside the 48V DC Telecom Cabinet?

The cabinet features a highly robust internal rack designed to support standard telecom equipment, rectifier power systems, backup battery modules, switching electronics, and other integration attachments.

What are the dimensions and mounting capacities of this cabinet?

The cabinet has internal dimensions of H*W*D 2000*600*600mm. It provides a standard 19-inch (or 21-inch adjustable) mounting interface with a total capacity of 42U.

How does the cabinet ensure thermal protection and weather resistance?

The cabinet utilizes a double-skin structure featuring 45mm thick PEF insulation cotton. Left, right, and back sections are made of color steel plates to ensure low thermal conductivity and efficient fire prevention in harsh environments.

What options are available for the cabinet fabrication materials?

The default material option is Galvanized Iron. Depending on specific operational requirements, we support custom fabrication using Aluminum, Stainless Steel, or SPCC Cold-Rolled Steel.

What type of security measures are implemented on the enclosure?

For structural security, the cabinet incorporates flush-mounted doors with embedded hinges and utilizes a heavy-duty 3-point security locking mechanism to prevent unauthorized physical access.

Does this system support alarm reporting and parameters monitoring?

Yes. The cabinet system provides digital displays for real-time internal and external temperatures, configurable temperature settings, limit alerts, and supports comprehensive alarm signal detection.
