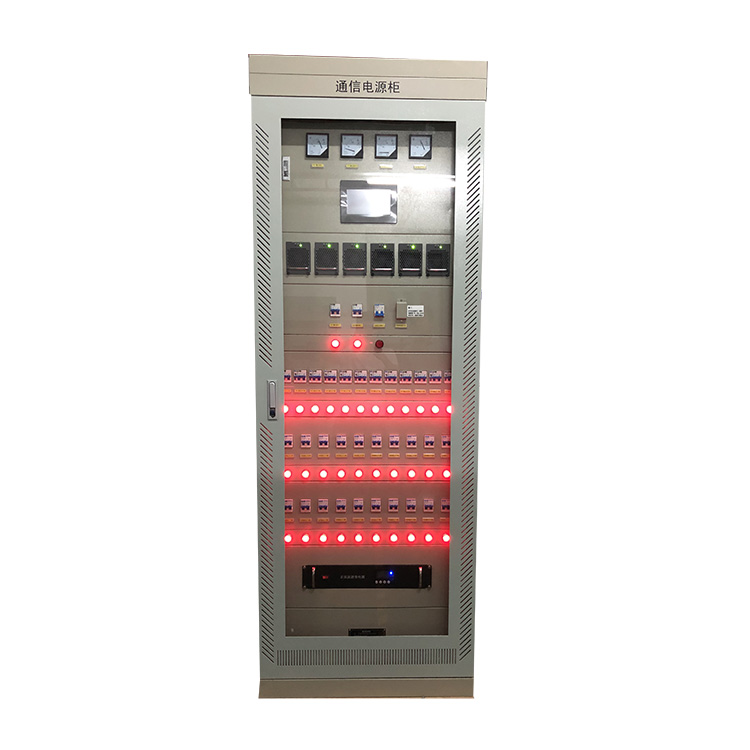

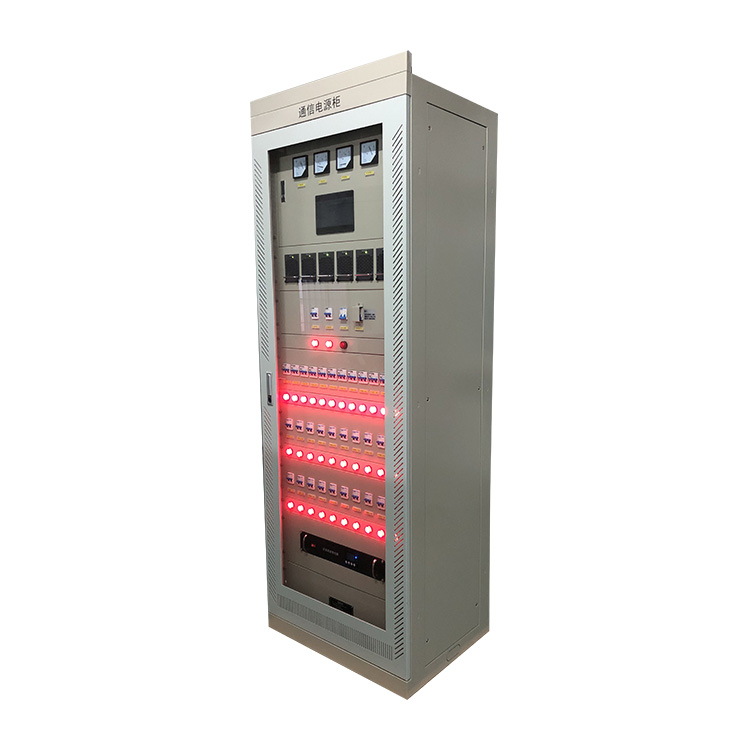

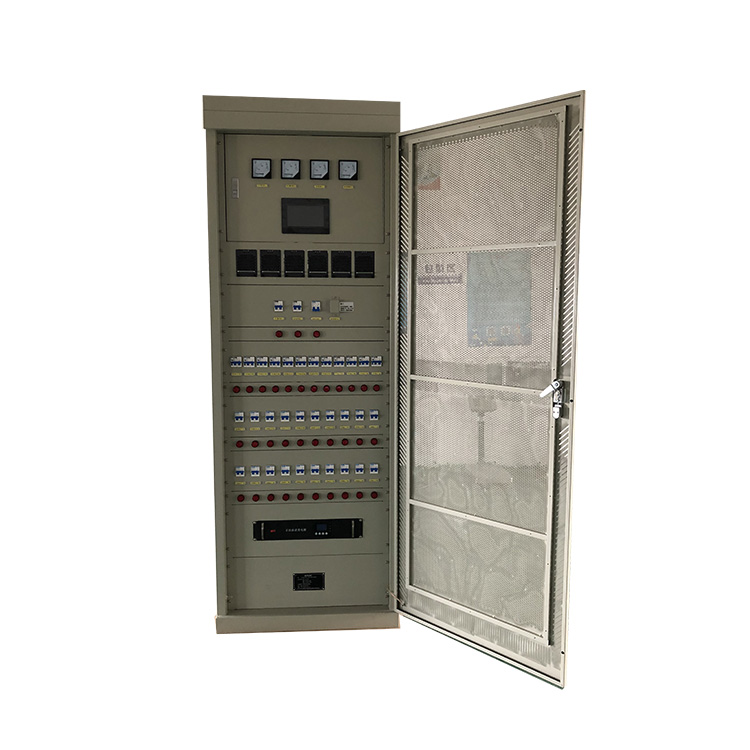

DC Power supply cabinet is engineered with a strong internal rack to support essential telecom equipment, power sources, batteries, and other hardware attachments.
Features a digital display panel showing temperature settings, real-time temperature alarms, internal and external temperature parameters, alongside multiple alarm status alerts.
Constructed from low thermal conductivity and fire-retardant materials to optimize heat insulation and structural safety.
Offers IP45 level protection and supports completely custom-made specifications to suit diverse project configurations.
| Item | Specification Parameters | Details & Options |
|---|---|---|
| 1 | Cabinet Inner Size | H*W*D 2000*800*600mm, internal capacity: 19" * 42U |
| 2 | Internal Capacity | 42U, 19 / 21 inch adjustable rack mounting options |
| 3 | Material Composition | Color steel plate on left, right and back; galvanized plate for remaining parts. Insulation thickness 45mm, utilizing PEF insulation cotton. |
| 4 | Substrate Material Options | Galvanized iron (Optional: Aluminum, stainless steel, SPCC cold-rolled steel) |
| 5 | Cabinet Base | 150mm Height, 2.0mm thickness steel plate |
| 6 | Cable Entry Layout | Underneath bottom entry & exit ports, size Φ50 * 5 |
| 7 | Security Design | Flush embedded doors, concealed internal hinges, and a secure 3-point door lock system |
| 8 | Protection Level | IP45 Rated environmental sealing |
This DC power supply cabinet features an IP45 rating, offering great protection against dust ingress and low-pressure water jets, making it suitable for demanding indoor and sheltered outdoor environments.
Yes. The interior features an adjustable mounting rack that can support both 19-inch and 21-inch telecom and network hardware with an total height capacity of 42U.
The cabinet is designed with a 45mm thick layer of PEF insulation cotton, which offers low thermal conductivity and excellent fireproof performance, helping to maintain temperature stability inside the server rack.
To prevent tampering and unauthorized access, the cabinet is engineered with embedded flush doors, concealed inner hinges, and a secure 3-point lock system.
While the default structure uses galvanized iron, we support customized options in Aluminum, Stainless Steel, and SPCC Cold-Rolled Steel depending on your installation needs.
It features clean and safe under-bottom cable entries and exits structured with Φ50 * 5 dimensions to support robust connectivity wiring from beneath the unit.
