EVS 1500W R134a Refrigerant Integrated Outdoor Air Conditioner AC 220V 50HZ -10~+55 for Telecommunications Power Supplies

Send Inquiry

Product Description

Integrated Outdoor Air Conditioner AC 220V

Scheme Introduction

Electronic equipment in the communication outdoor cabinet generates a large amount of heat during operation, causing the temperature inside the cabinet to rise, reducing the service life of electronic components, and even causing equipment to shut down. Therefore, temperature control devices must be used to control the temperature inside the cabinet to ensure the normal operation of communication equipment, while improving the service life and reliability of electronic equipment.

The temperature control equipment of the communication outdoor cabinet adopts advanced refrigeration technology, high-efficiency heat exchangers, and intelligent control schemes to ensure the energy-saving and reliable operation of the temperature control system. The product adopts an integrated anti-theft design while ensuring isolation between the inside and outside of the cabinet, improving the dustproof and waterproof performance of the product.

Applicable Fields

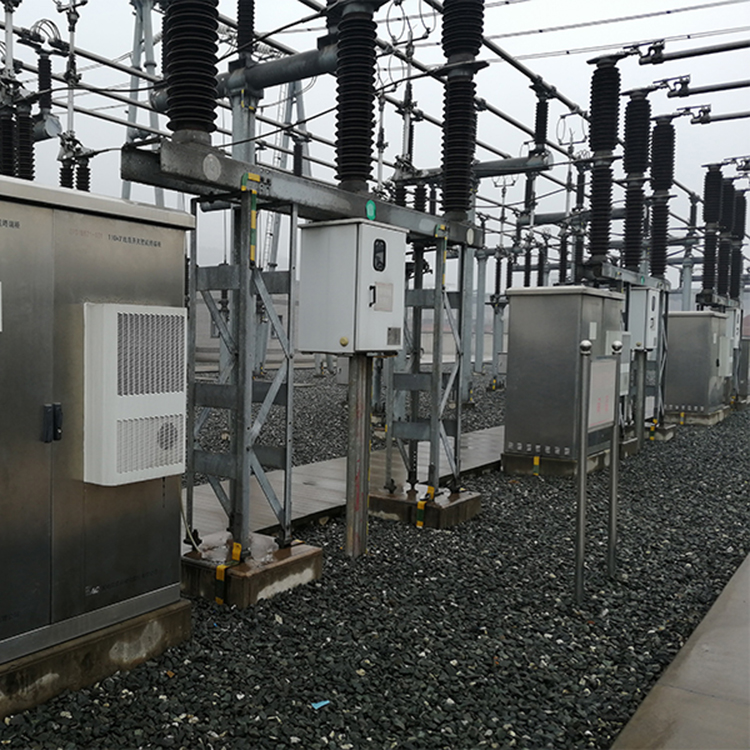

Mobile communication sites of communication operators
Outdoor small cabin
Railway electrical control cabinet
Outdoor air detection station
High speed card picking machine control cabinet, etc.

Semi Embedded 1500W Outdoor Cabinet Air Conditioner Specifications

Model	Unit	EVS0800	EVS1000	EVS1500
Dimensions (h * w* d)	mm	750450200
Including flange dimensions (h * w * d)	mm	784484200
Installation environment	-	outdoors
Ambient Temperature	°C	-40 to +55
Lifetime	Years	>10
IP Rating	-	IP55
Refrigerant	-	R134a
Power supply range	-	220±15%VAC~50Hz
Cooling capacity (L35/L35)	W	800	1000	1500
Rated power (L35/L35)	W	360	380	580
Rated current (L35/L35)	A	1.64	1.7	2.6
Operating current max	A	4.6	4.6	4.6
Heating capacity (optional)	W	1000	1000	1000
Noise	dB(A)	65	65	65
Weight	Kg	26	26	31
Internal circulation air volume	m3/h	320	320	320

Hot Sale Products

Frequently Asked Questions (FAQ)

What are the primary applications of these outdoor cabinet air conditioners?

These units are specially designed for mobile communication sites of communication operators, outdoor small cabins, railway electrical control cabinets, outdoor air detection stations, and high-speed card picking machine control cabinets.

What ambient temperatures can this equipment withstand?

Our outdoor cabinet air conditioners are engineered to operate reliably in harsh outdoor conditions with ambient temperatures ranging from -40°C to +55°C.

What protection rating do these air conditioners offer?

These units offer an IP55 protection rating, ensuring strict isolation between the inside and outside of the cabinet to prevent dust and water intrusion, thereby protecting the delicate components inside.

What refrigerant is used in the systems?

All models in this series utilize environmental-friendly R134a refrigerant, guaranteeing highly efficient cooling capacity while staying compliant with green ecological standards.

What is the expected operational lifespan of the unit?

Thanks to their advanced refrigeration technology and durable configuration, our air conditioners are built for long-term usage with an operational lifetime exceeding 10 years.
