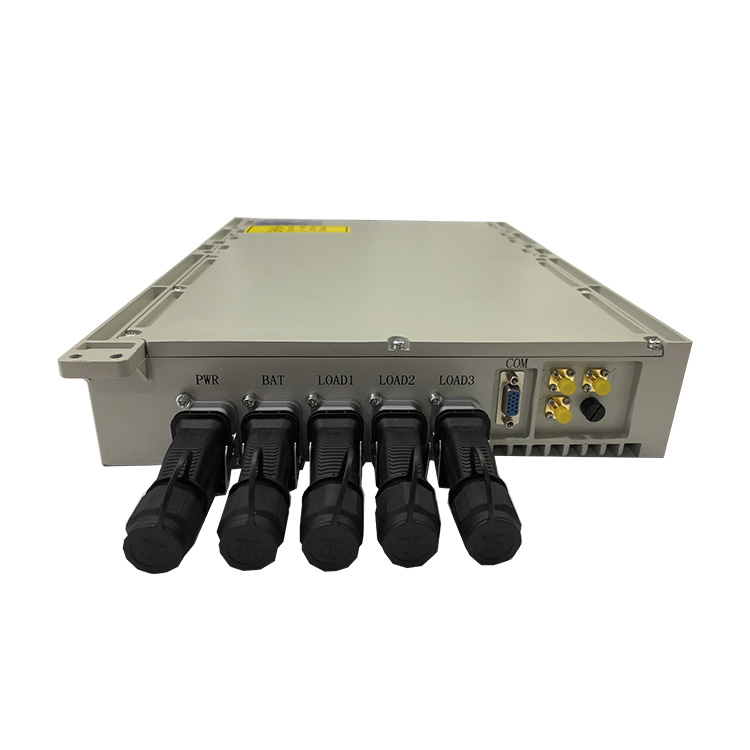

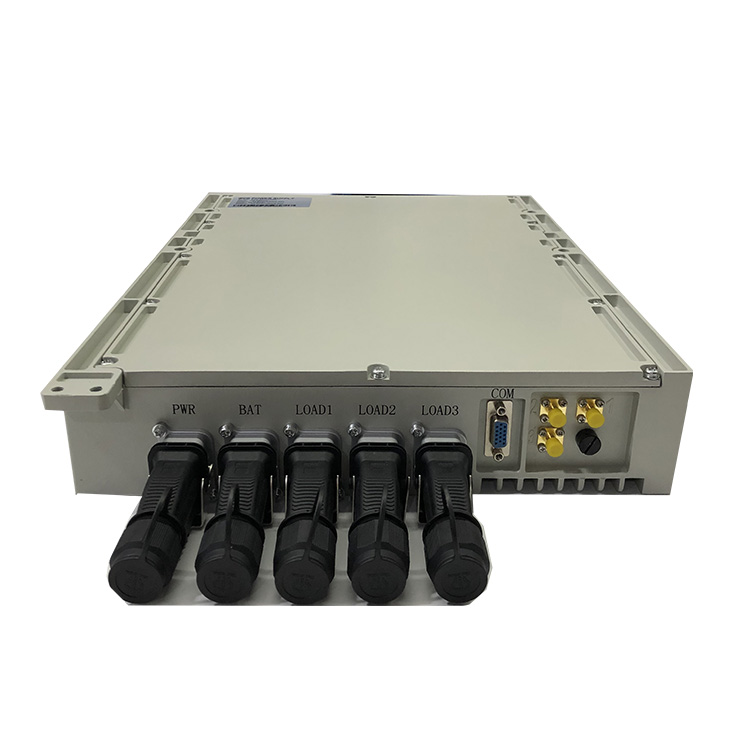

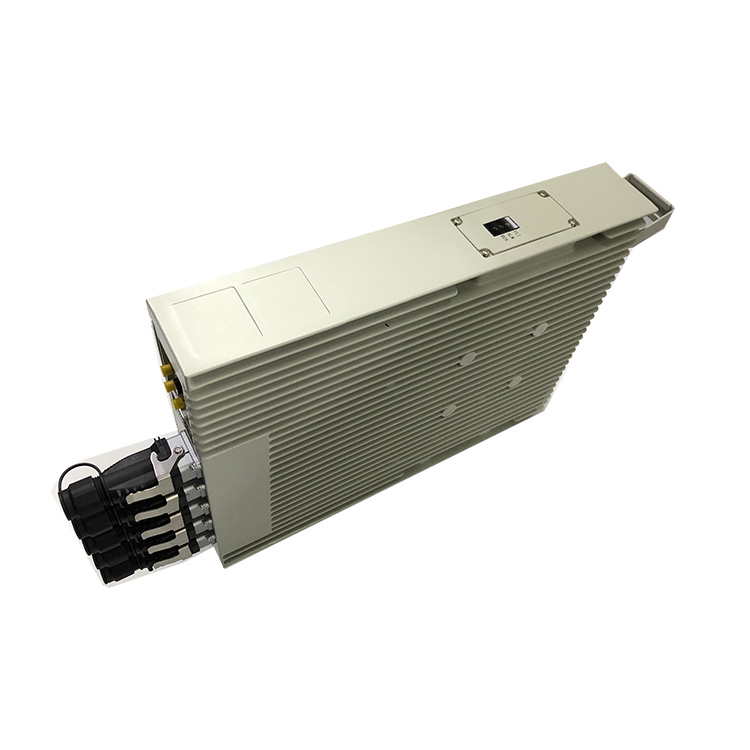

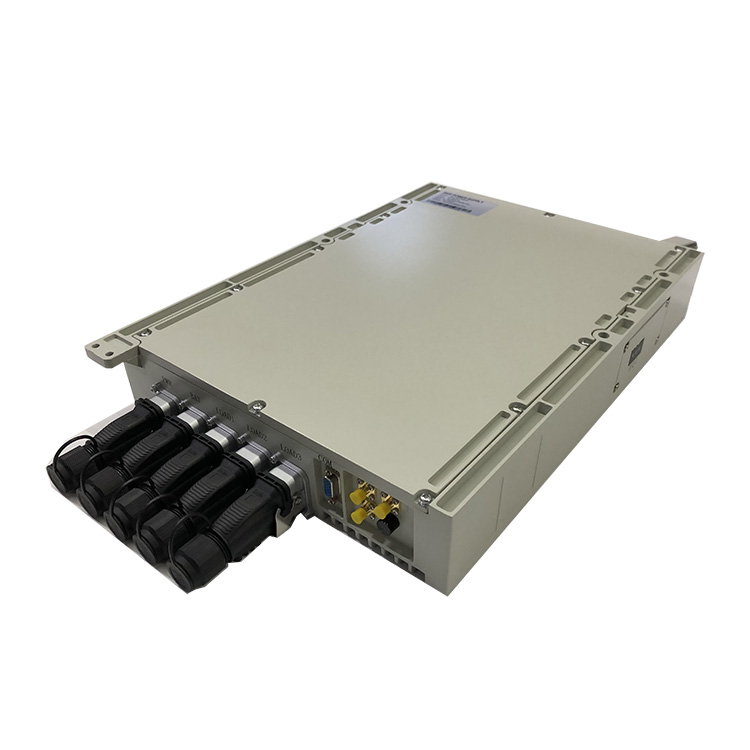

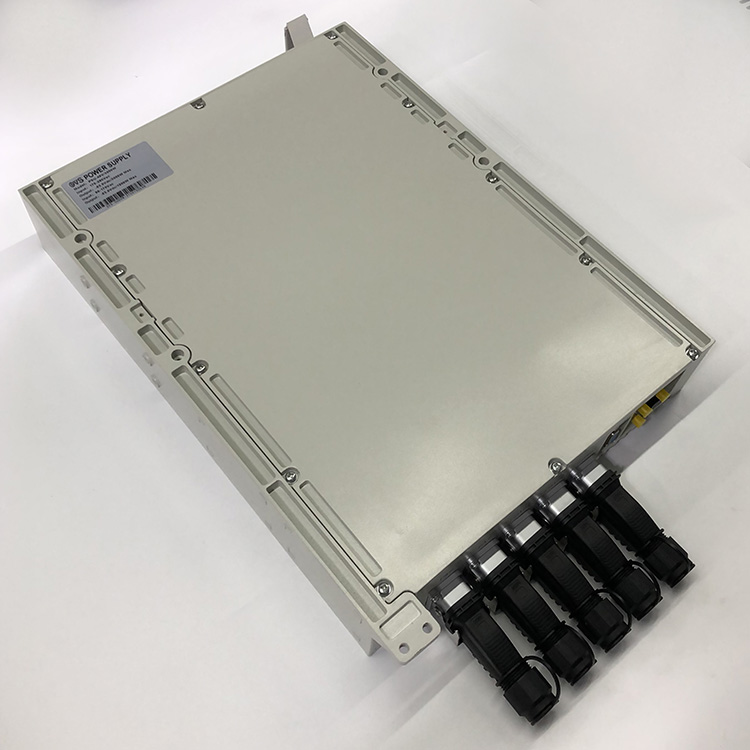

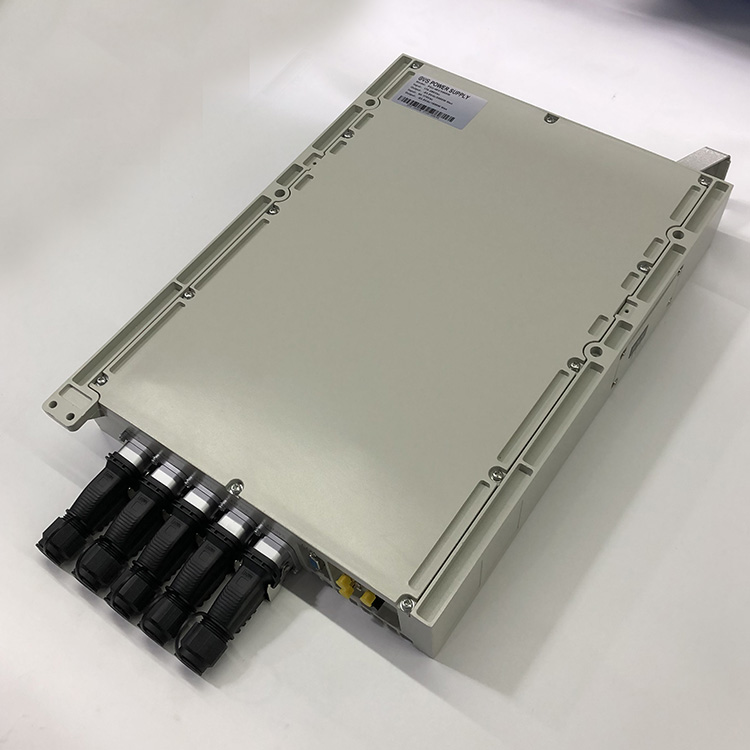

EVS-1000W is a kind of AC / DC (or DC / DC) high-power power supply with single output.
Factory Wall-Mounted adopts the latest circuit design, with compact structure and reliable performance.
Outdoor wall mount power supply has high stability precision and high output efficiency. It features a wide range of input voltage, input with over-voltage protection, output with short-circuit protection, over-current protection, and over-temperature protection. The cooling system adopts natural heat dissipation.
The whole power supply is designed in strict accordance with the requirements of safety regulations, and meets the requirements of information technology equipment safety standards.
EVS-3000w outdoor wall mount power supply has the following characteristics:

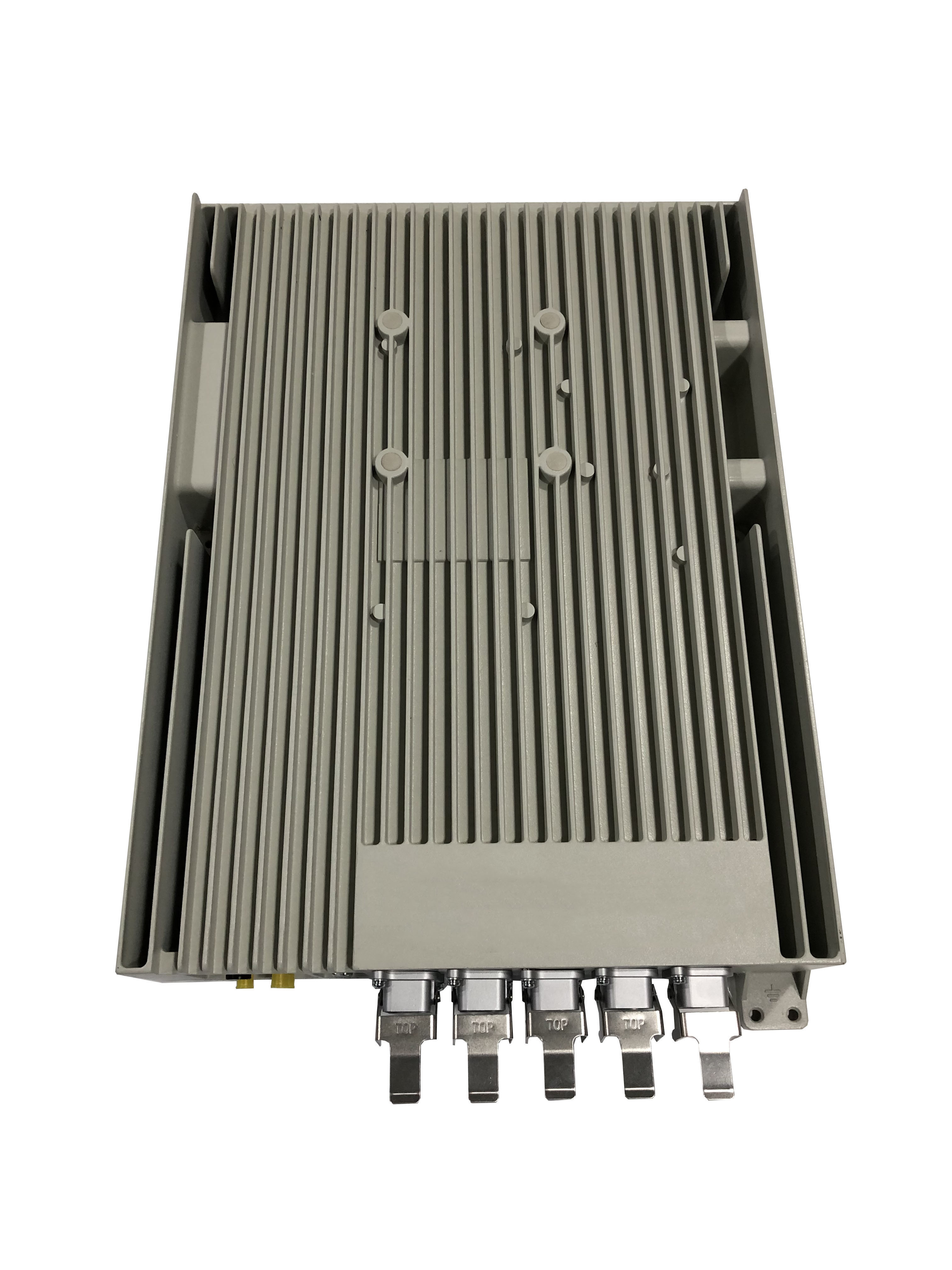

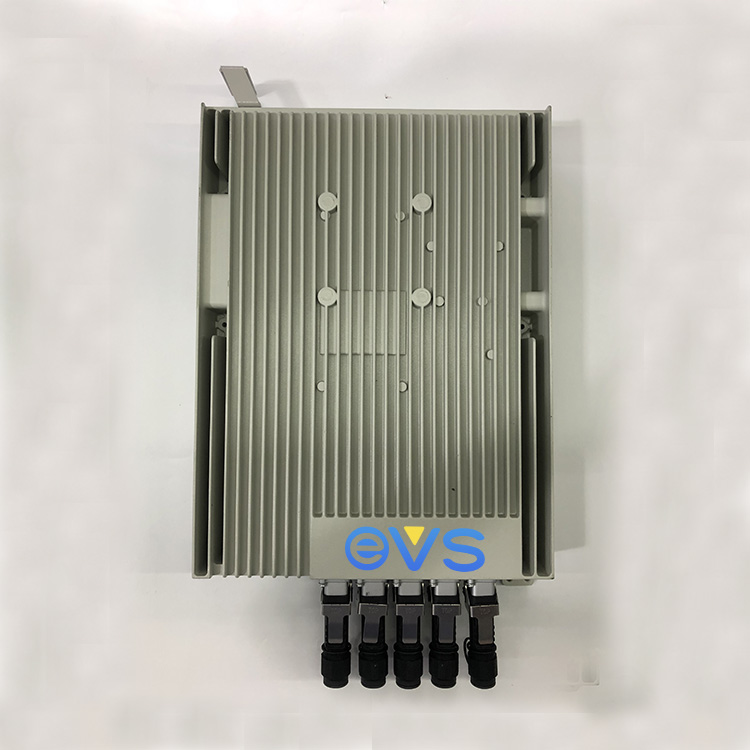

It has d-level lightning protection capability, outdoor high dust-proof and waterproof design, protection grade IP65, direct contact heat dissipation at the bottom, metal shell. The power shell and cable connector need to be equipped with anti-off screws, supporting four installation methods: wall hanging, holding pole, steel belt holding pole, and landing.
| outdoor wall mount performance index input | |||||
| Parameter | Min. | Rated | Max. | Unit | Note |
|---|---|---|---|---|---|
| Rated working voltage range | - | 110/220 | - | Vac | - |
| Input voltage range | 90 | 220 | 290 | Vac | Three-phase five-wire input phase to phase 380V / relative zero line 220VAC |
| Output voltage range | 42 | 48 | 58 | Vdc | - |
| Battery input | 40 | 48 | 60 | Vdc | Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent) |
