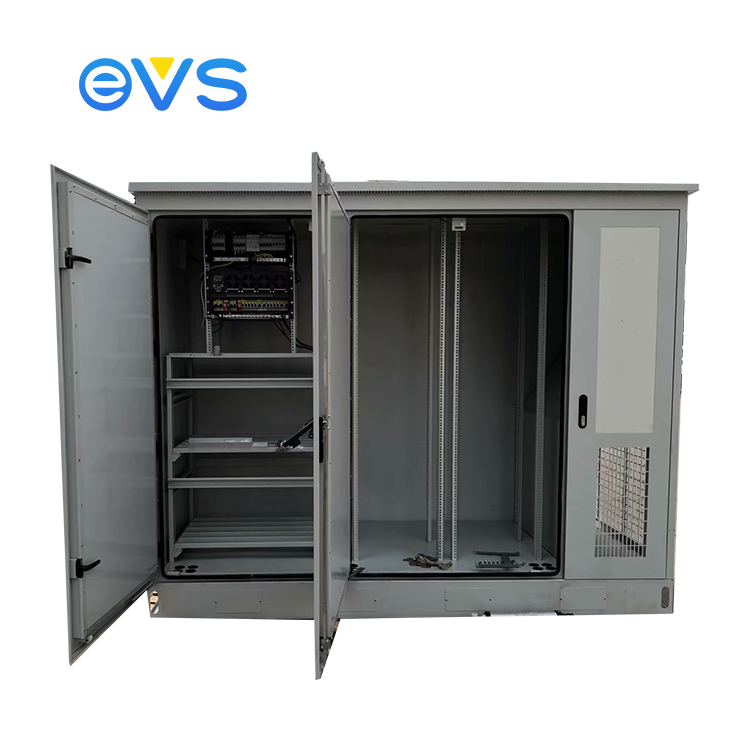

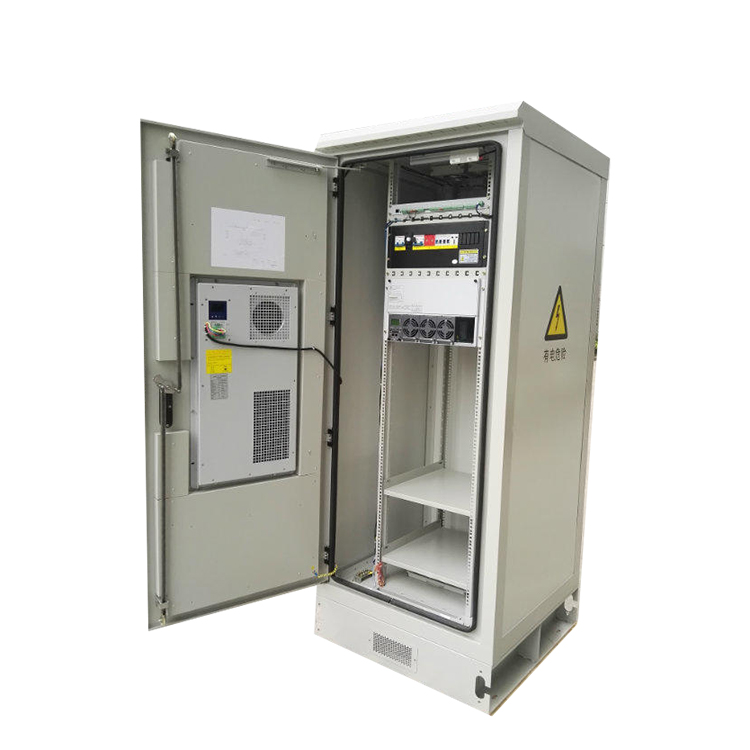

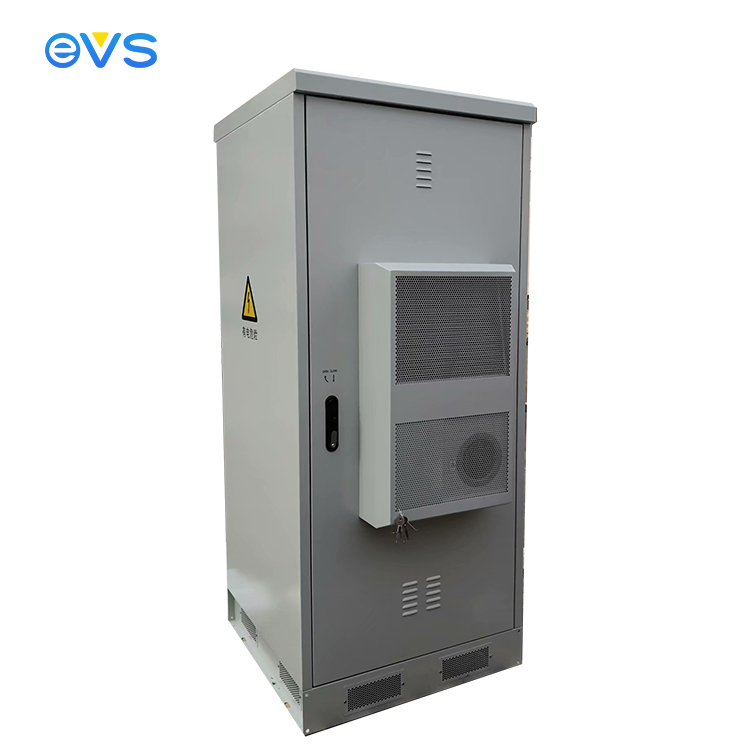

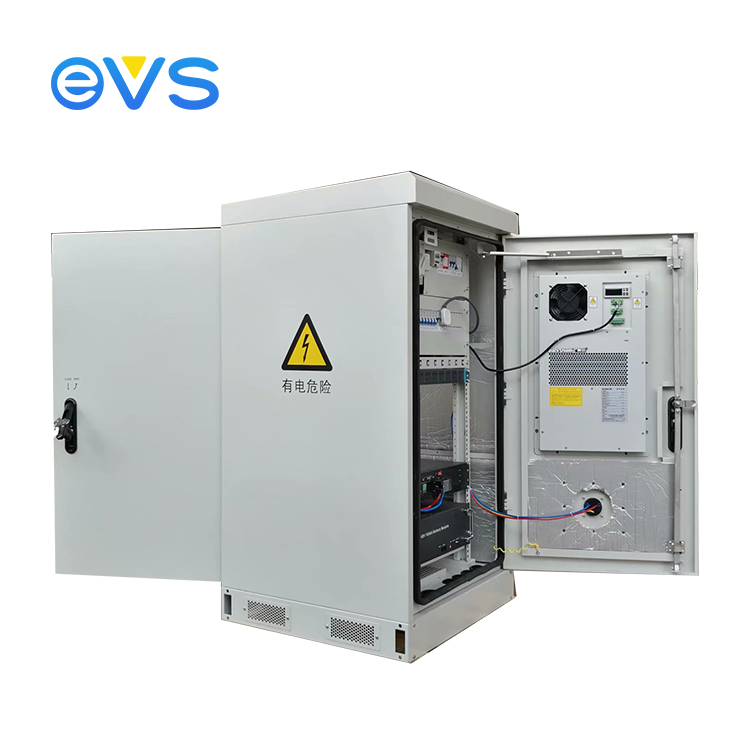

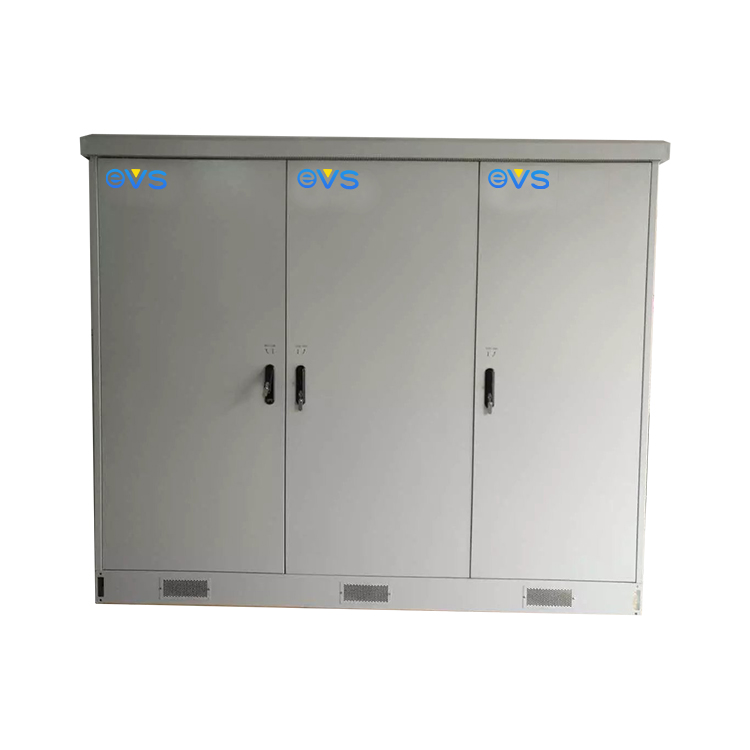

Features with the following specifications:
| Cabinet Outer Size | H*W*D 2030*900*900mm |
| Cabinet Inner Size | H*W*D 1800*800*800mm, internal capacity: 19"*42U |
| Cabinet Type | 1 unit 1 cabin, front door, assembly structure, double layer |
| Material | Left, right and back part are color steel plate, other parts are Galvanization plate, insulation thickness 45mm, insulation cotton material is PEF |
| Thermal Insulation Performance | Thermal Conductivity < 0.472W/(m2.k) |
| Equipment Rack | Standard 19" rack, 4 pairs Tropsch Article, 3 floors |
| Cabinet Base | 150mm H, thickness 2.0mm |
| Cable Entry | Under bottom in and out Φ50*5 |
| Security Design | Embedded door, embedded hinges, 3-point security lock |
| Protection Level | IP55 |
| Application | Outdoor cooling |
| Cooling Capacity | 1500W |
| EER (Energy Efficiency Ratio) | 3.0 |
| Input Voltage | 110V / 220V |
| Temperature Control | Smart Thermostat, can be automatically adjusted according to cabin temperature |
| Protection Level | IP55 |
| Way of Communication | RS485 |
