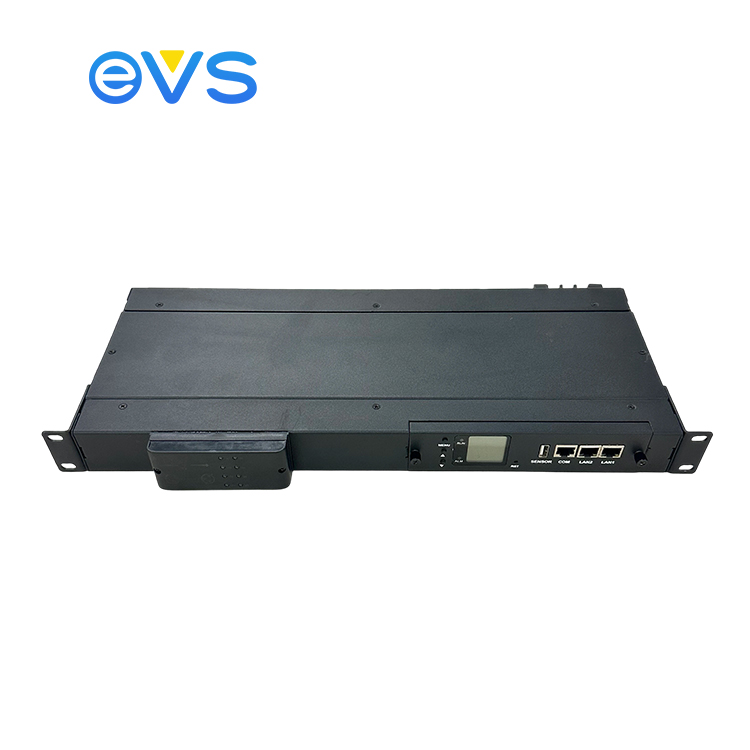

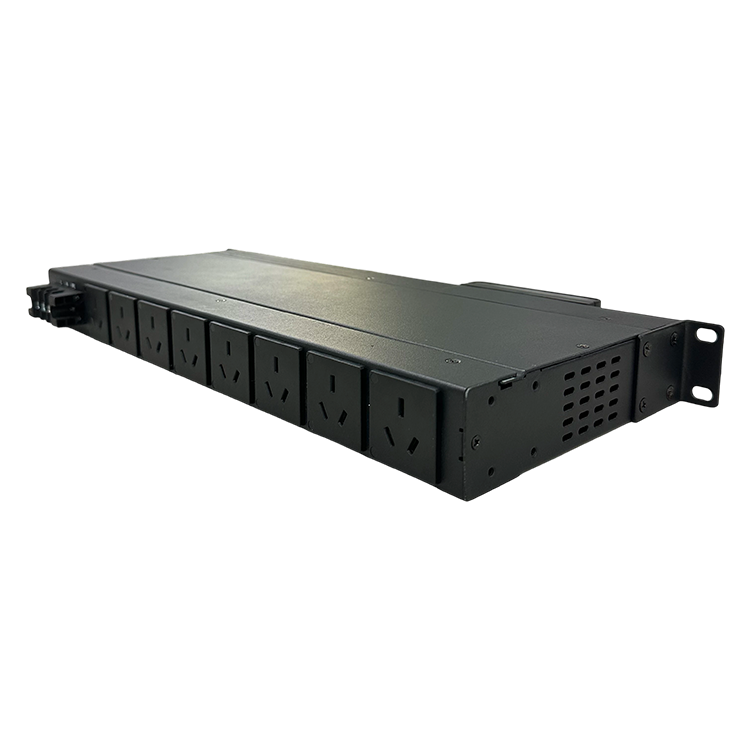

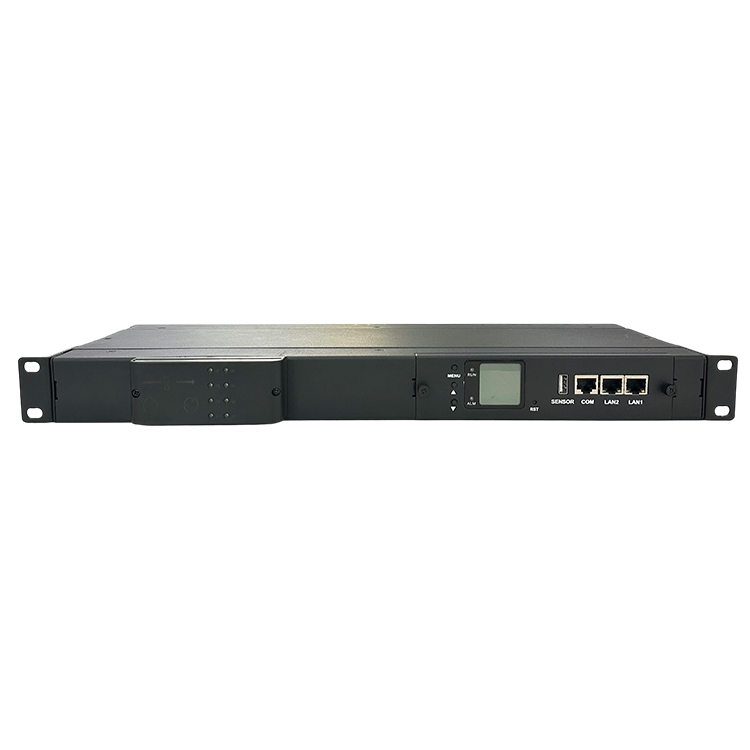

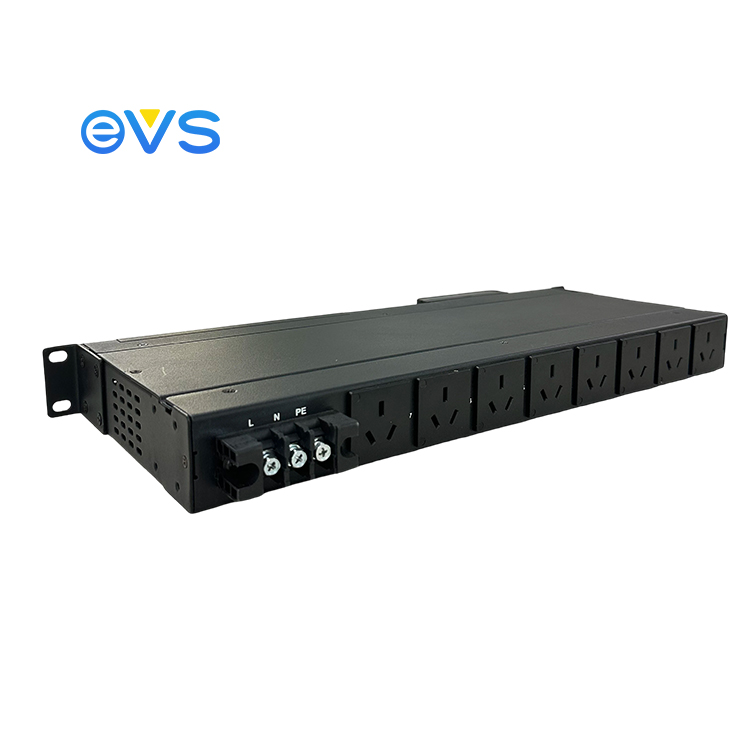

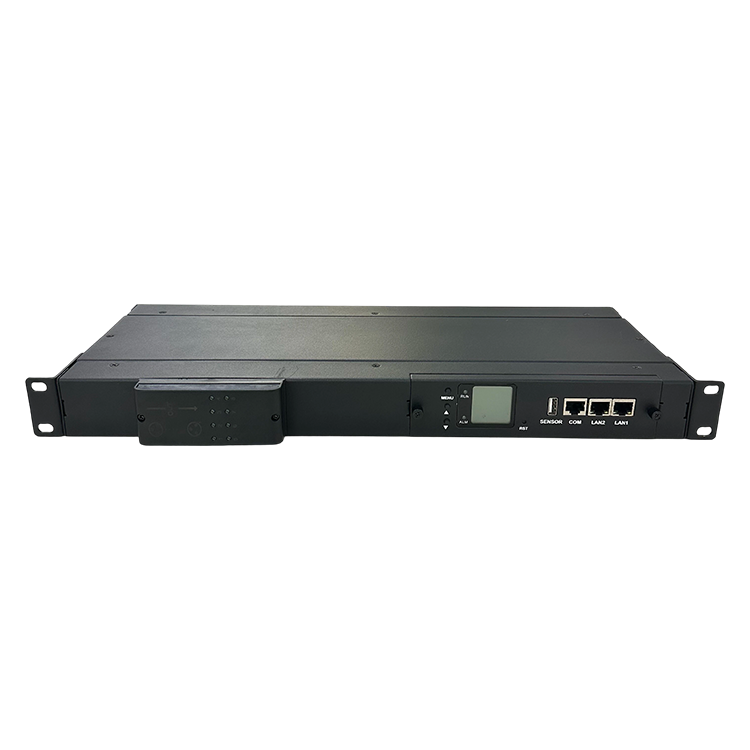

This type of PDU provides safe and reliable power distribution requirements for equipment such as data center servers.
The output module of PDU can be combined with various functional modules at will, such as current, voltage, energy monitoring module, lightning protection module, indicator light, circuit breakers, etc. The current, voltage, electric energy monitoring module and lightning protection module adopt hot swap design, which can be better maintained.
| Series Specifications | ||
|---|---|---|
| Input | Input type | DC-48v |
| Input mode | Open transparent junction box, power line, cable, industrial connector, socket, etc | |
| Input voltage range | -43VDC to -56VDC | |
| AC input frequency range | 50/60Hz | |
| Total load current | Maximum 16A | |
| Output | Output rated voltage | -48VDC |
| Output frequency | 50/60Hz | |
| Output system | GB10A, GB16A, C13, C19, ENTA15, ENT20A, German standard, French standard, British standard, national standard five hole, industrial socket, industrial terminal, etc | |
| Output Bits | Maximum 8 bit output | |
| Protect | Input protection module | Circuit breaker, lightning protection, leakage protector, temperature rise control module (optional) |
| Output protection module | Circuit breaker and fuse (optional) | |
| Environmental | Working temperature | -10°C ~ +75°C |
| Storage temperature | -40°C ~ +80°C | |
| Relative humidity | 5~95% (No condensation) | |
| Working altitude | No more than 3000m | |
| Protection level | IP20 | |
| Monitor | Communication mode | RJ45 Access to Ethernet |
| Display | LCD | |
| Input current & voltage limit | Automatic identification of rationality of limit setting | |
| Output current & voltage limit | Automatic identification of rationality of limit setting | |
| Input monitoring | Current, voltage, power, frequency and other parameters | |
| Output monitoring | Current, voltage, power, frequency and other parameters | |
