Output 110Vdc 80A 10000W power supply with 20A Modular Rectifier
The 220v ac to 110v dc power supply adopts active power factor compensation technology, with a power factor up to 0.99. The normal operating input voltage range is as wide as 90 ~ 290Vac & 110-395Vdc. The rectifier modules utilize full bridge soft switching technology, allowing efficiency to reach above 95%.
Ultra-low radiation: By incorporating advanced electromagnetic compatibility design, the rectifier module meets all standard requirements for conducted and radiated interference.
Safe and reliable: The overall system design fully complies with safety standards EN60950 and GB4943.

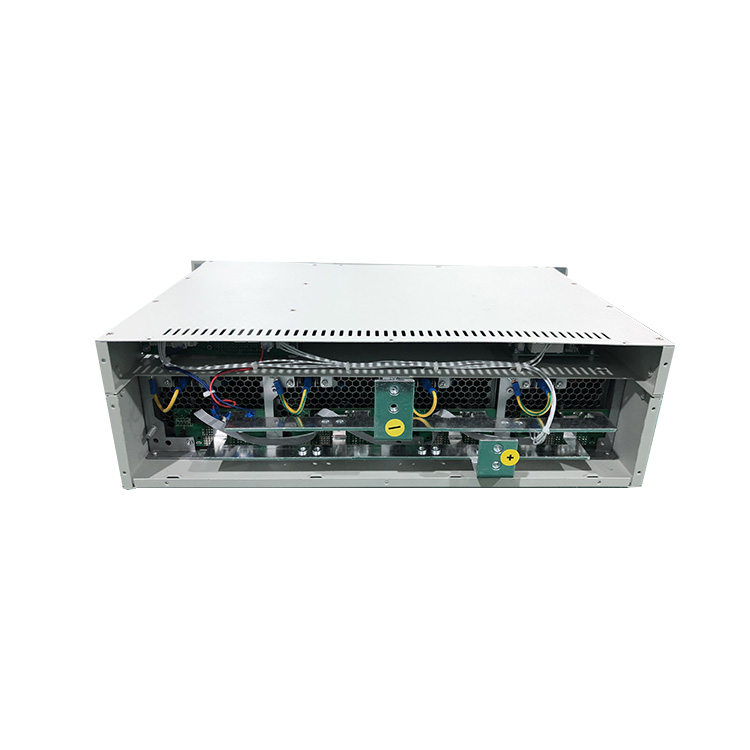

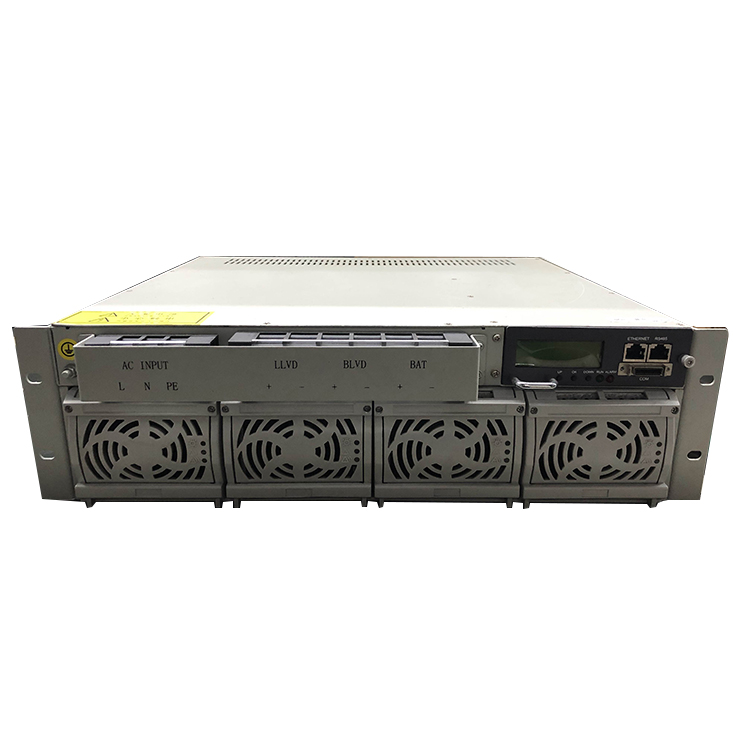

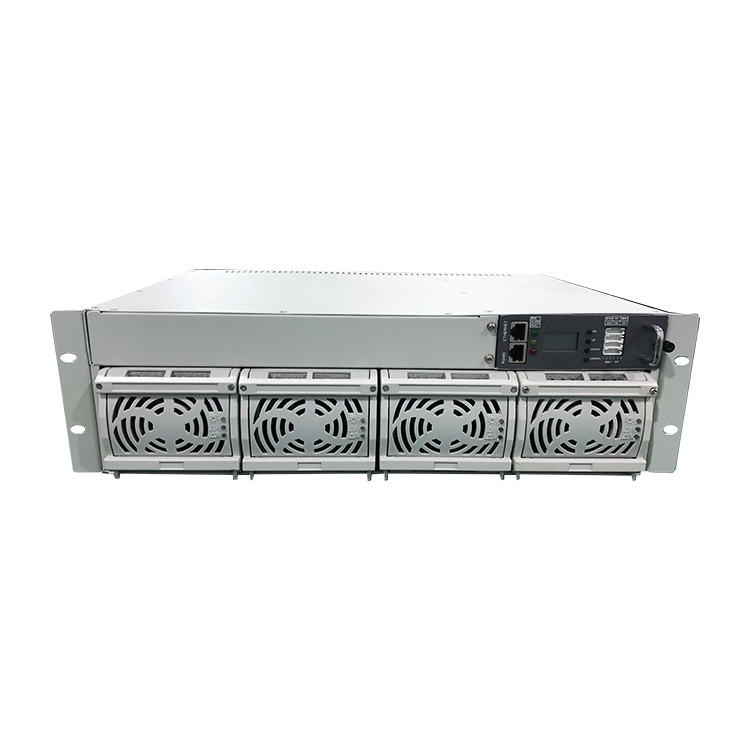

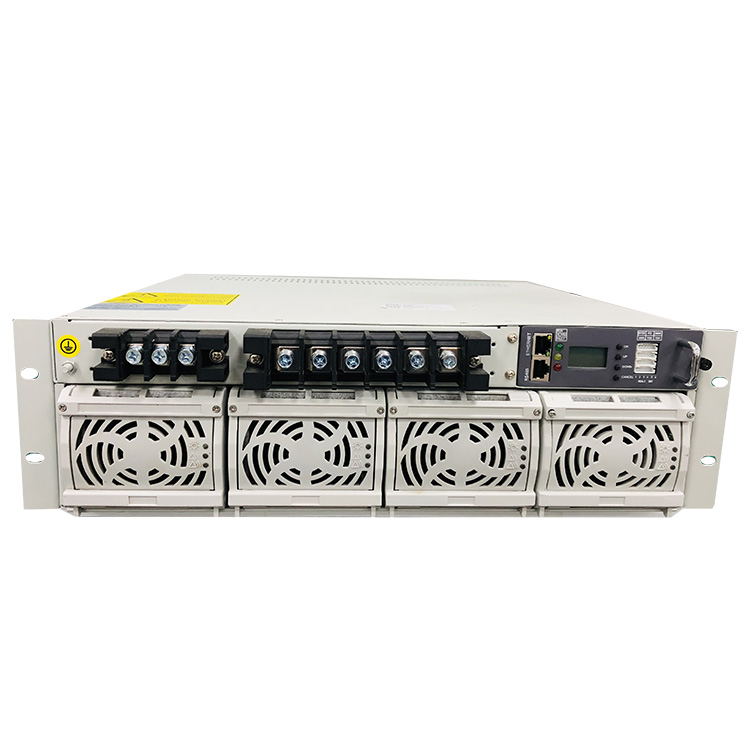

This 220v ac to 110v dc power supply utilizes an advanced modular design, grouping multiple rectifier modules together within one 19'' rack box. This design provides the necessary flexibility to supply sufficient power for telecom and power industrial equipment.
The power output of the rectifier can be configured flexibly depending on the quantity of rectifier modules equipped. It provides a stable DC output for regular load demands, battery float charging, and battery equalized charging. It delivers constant DC charge power and works automatically based on load demands.
| Parameter | Min. | Rated | Max. | Unit | Note |
|---|---|---|---|---|---|
| Output voltage range | 100 | 125 | 156 | Vdc | - |
| Output current range (max. current) | 0 | - | 80 | A | - |
| Regulation accuracy | - | - | ±1 | % | - |
| Load regulation | - | - | ±1 | % | - |
| Source regulation | - | - | ±1 | % | - |
| Current sharing regulation | - | - | ±5 | % | - |
| Ripple (peak – peak value) | - | - | 200 | mv | Network 20MHz testing. |

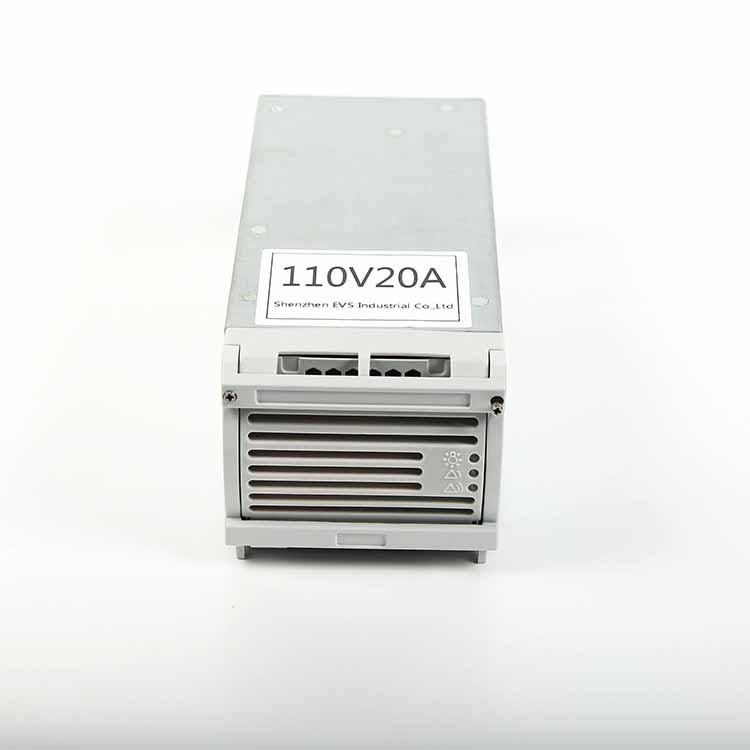

| Rectifier module | 24Vdc/50A | 48Vdc/50A | 125Vdc/20A | 220Vdc/10A |
|---|---|---|---|---|
| Input | 90 ~ 290Vac & 110-395Vdc & 380Vac | |||
| Output | 50A 100A 150A 200A | 50A 100A 150A 200A | 20A 40A 60A 80A | 10A 20A 30A 40A |
