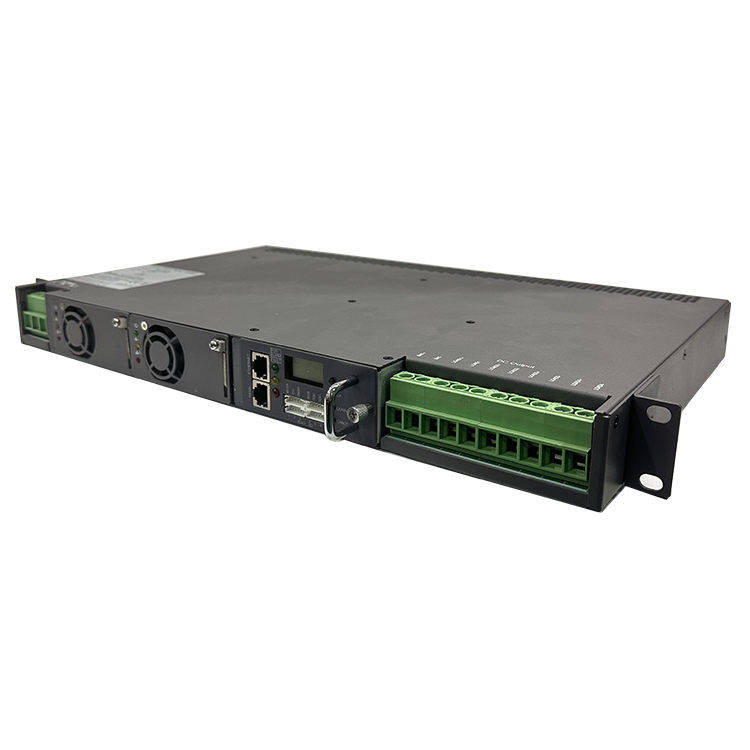

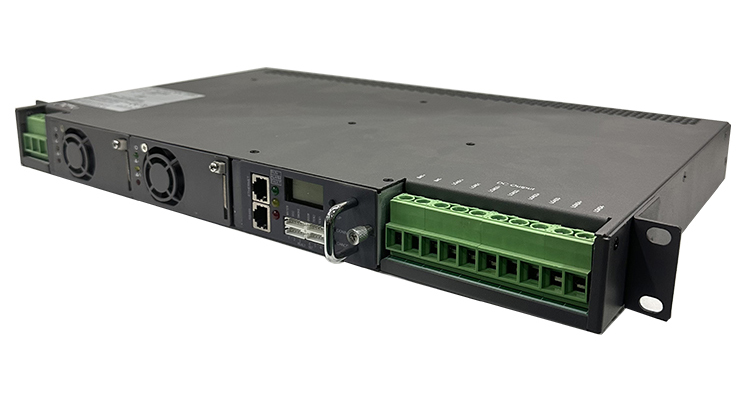

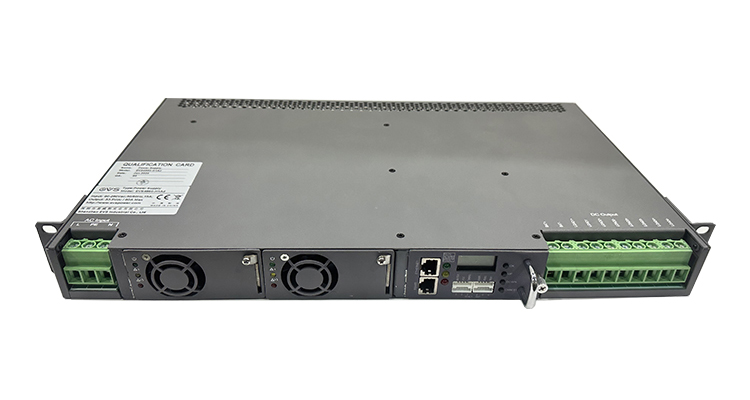

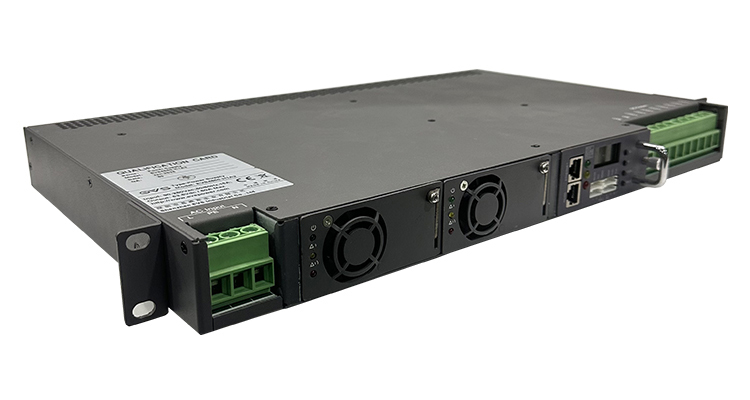

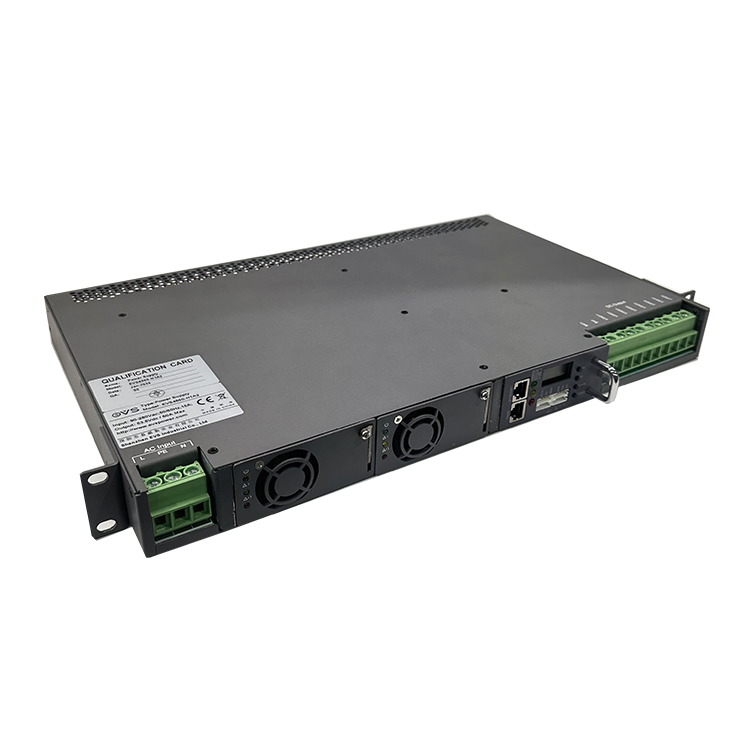

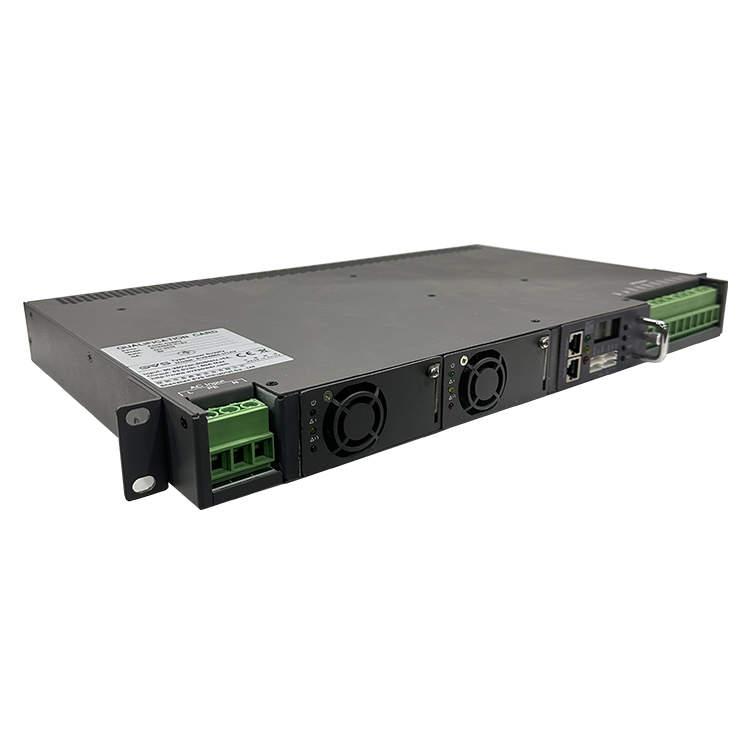

Telecom Power System
This model of power supply is for communication. Output voltage -48V, Output current 0-60A. Its features include input over/under-voltage protection, output over-current protection, and output over-voltage protection.
Series™ uninterrupted power supply for 48v lithium ion battery
Product Description:
This Power Series™ is a unique and a highly reliable power supply series. It can be configured as a single as well as a fully redundant power supply. This Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world. These power supplies are mainly used in the following applications:
This Power Series is a reliable, efficient and inexpensive solution for all kind of Power Control Systems applications.
| Telecom Power System Technical Specifications | ||
| AC Input | Input | Single phase 220Vac, 50Hz |
| Frequency | 50Hz, Range: 45Hz~65Hz | |
| Voltage Range | 90V~290VAC / 100-400VDC | |
| DC Output | Rated current(A) | 60A |
| Max Output Current | 0~70A | |
| Rated power(W) | 3480W | |
| Rated voltage(V) | 220V | |
| Equ-charge (V) | 56.4V (42-58Vdc adjustable) | |
| Float voltage(V) | 53.5V (42-58Vdc adjustable) | |
| Output Accuracy(V) | ≤1% | |
| Output ripple voltage | ≤200mV <0-20MHz> | |
| PF | 0.99 @ 220VAC/30A | |
| Leakage current | ≤1.5mA | |
| Indicator | LCD display | Input/output voltage, Frequency, output current, Environment, Rate |
| Power status | City power, Output, Under voltage, overload voltage | |
| Current Sharing | ±5% from true average current between modules | |
| Load regulation | 2% | |
| Line regulation | 1% | |

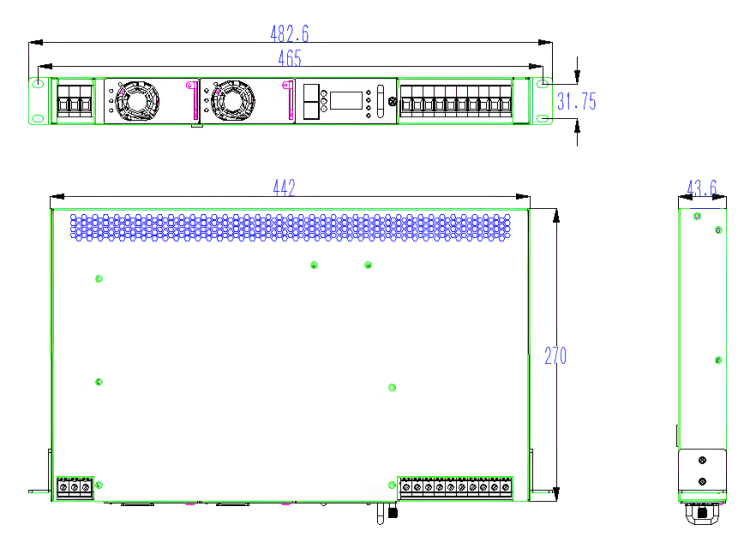

| Dimension | 482 x 270 x 44mm (D*W*H) | |
