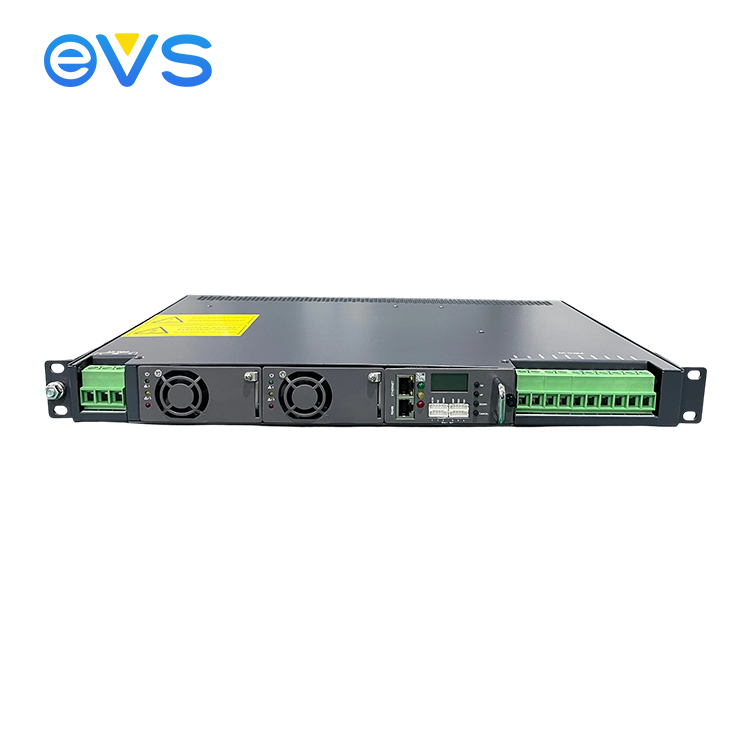

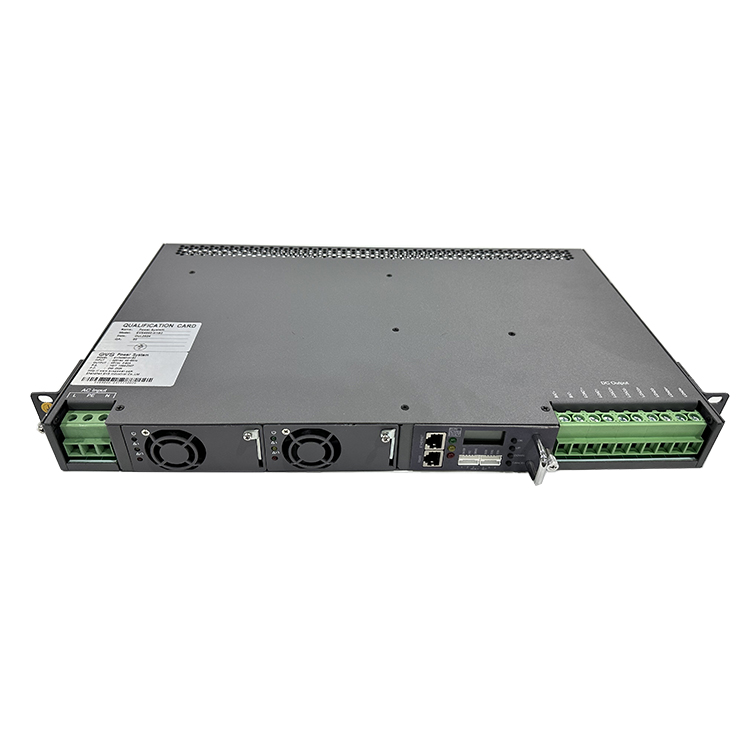

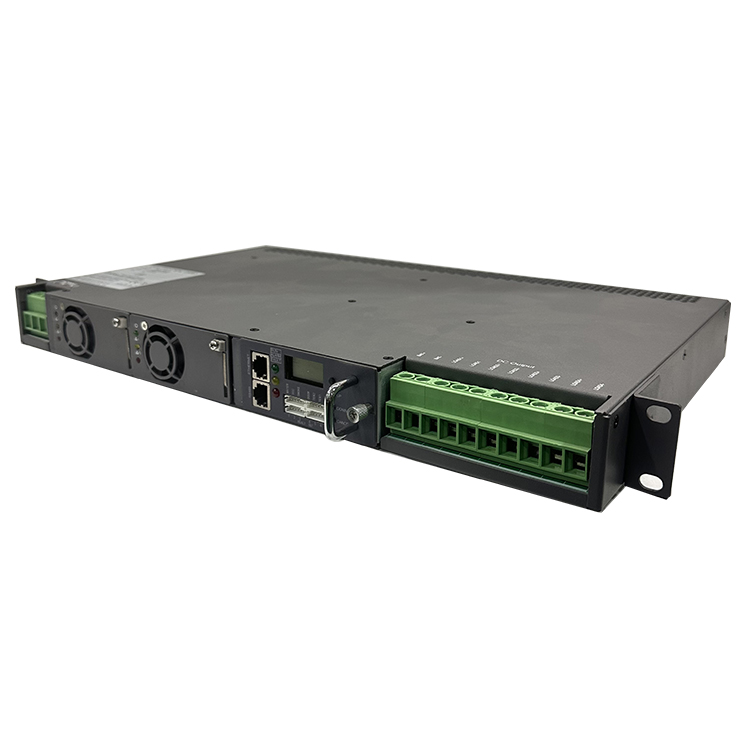

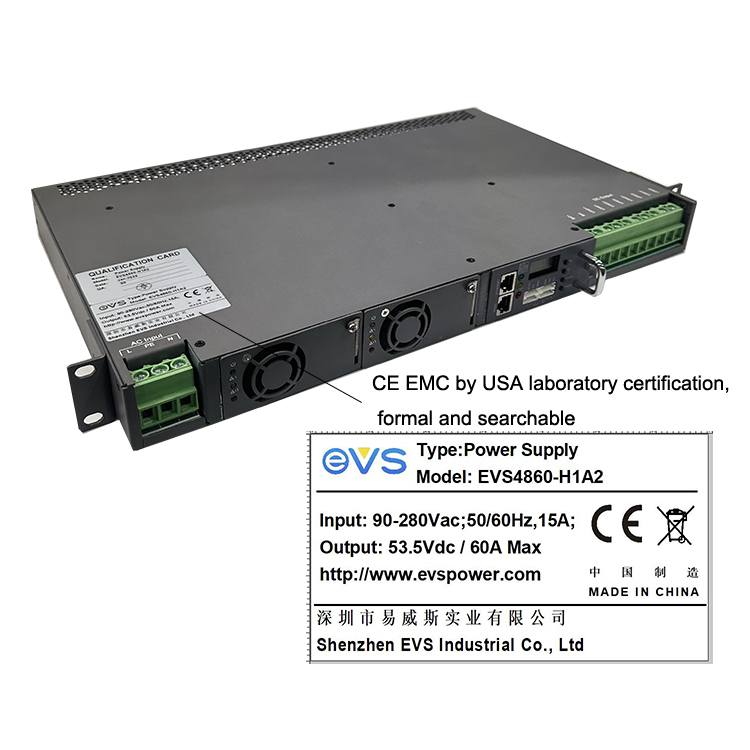

EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for
EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for
EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for
EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for
EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for
1 / 5
EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for
EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for
EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for
EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for
EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for

EVSPOWER EVS4860-H1A2 1U Height Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier for

Send Inquiry

Product Description

Telecom Power System AC/DC 80-300VAC 48V/54V 60A Single Output 3200W 50Hz Hot Swap Rectifier
Telecom Power System
Product Description

This model of Telecom power system features an output voltage of -48V and output current of 0-60A. Its advanced protective functions include input over/under-voltage protection, output over-current protection, and output over-voltage protection to ensure system safety and stability.

Product Performance
  • Standard installation structure design with strong versatility.
  • 80~300VAC ultra-wide AC voltage input range.
  • Telecom power system operating temperature range from -40 to +75 °C.
  • Hot-swappable technology for convenient installation and maintenance.
  • Compact power supply structure that saves space and installation costs.
  • High efficiency rectifier module with efficiency over 95%, supporting energy saving and emission reduction.
  • Perfect module sleep function to further improve system efficiency.
  • Intelligent battery management and battery protection to extend battery life, compatible with lead-acid and lithium batteries.
  • Supports module anti-theft, Telecom power system input detection, environmental monitoring, and remote management through dry contacts, serial ports, or RS485/Modbus/SNMP network interfaces.
Technical Specifications
Telecom power system Technical Specifications
AC Input Input Single phase 220Vac, 50Hz
Frequency 50Hz (Range: 45Hz~66Hz)
Voltage Range 90V~290VAC
DC Output Rated Current (A) 60A
Max Output Current 0~60A
Rated Power (W) 3480W
Rated Voltage (V) 220V
Equ-charge (V) 56.4V (42-58Vdc adjustable)
Float Voltage (V) 53.5V (42-58Vdc adjustable)
Output Accuracy (V) ≤1%
Output Ripple Voltage ≤200mV <0-20mHz>
PF 0.99 @ 220VAC/30A
Leakage Current ≤1.5mA

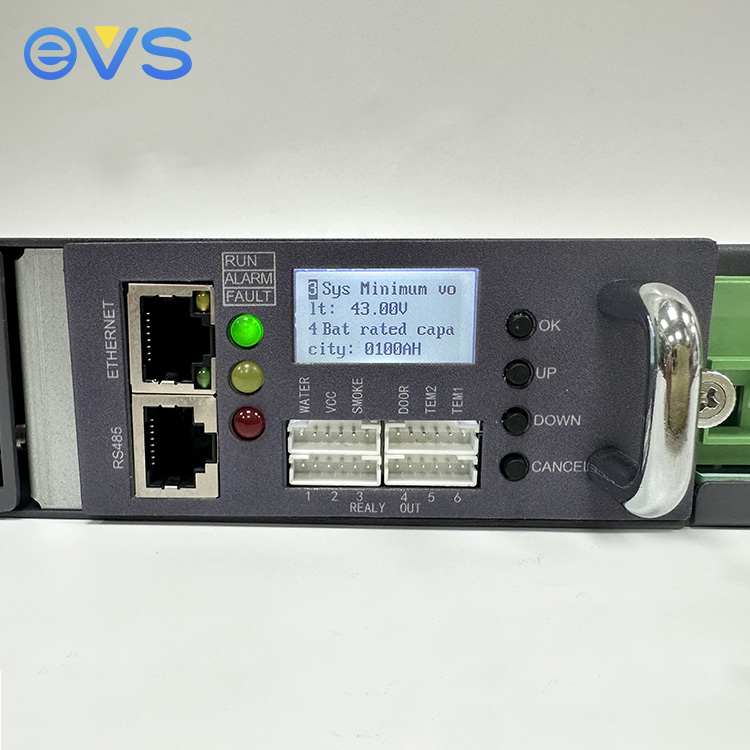

Indicator LCD Display Input/output voltage, Frequency, output current, Environment, Rate
Power Status City power, Output, Under voltage, Overload voltage
Current Sharing ±5% from true average current between modules
Load Regulation 2%
Line Regulation 1%
Dimension 482 x 270 x 44 mm (D*W*H)
Product Detail & Display
Telecom Power System Details
Telecom Power Unit
1U Height Telecom Power System

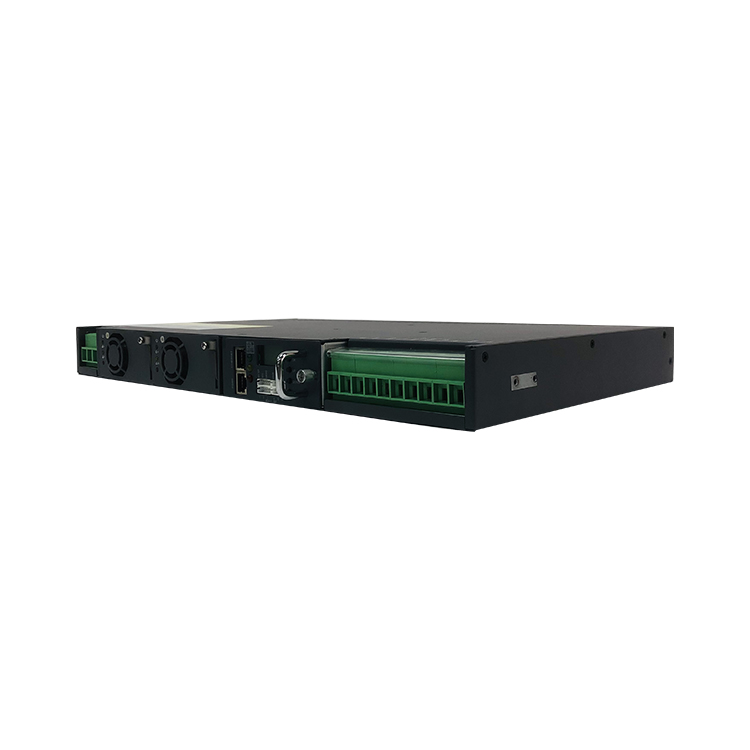

Power Rectifier Modules
Dimensions and Design Chart
Hot Swap Rectifier System

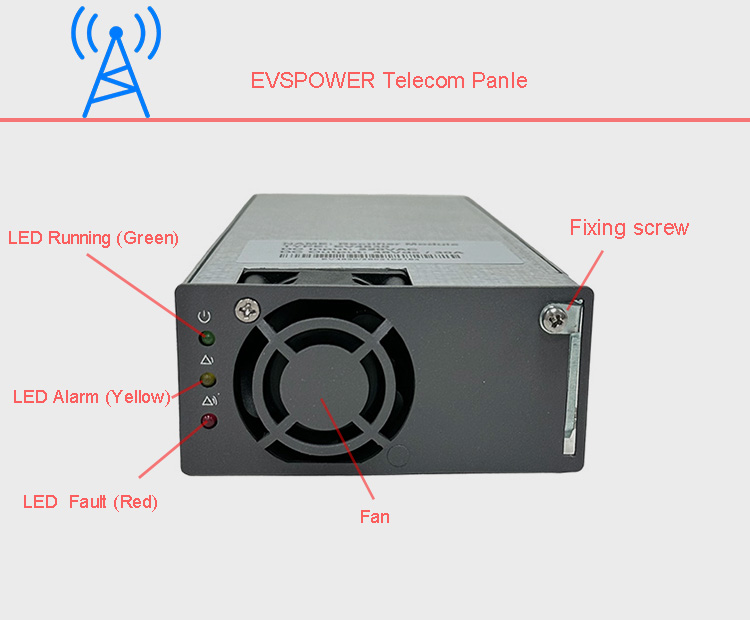

Telecom Power Cabinet Details
Hot Sale Products

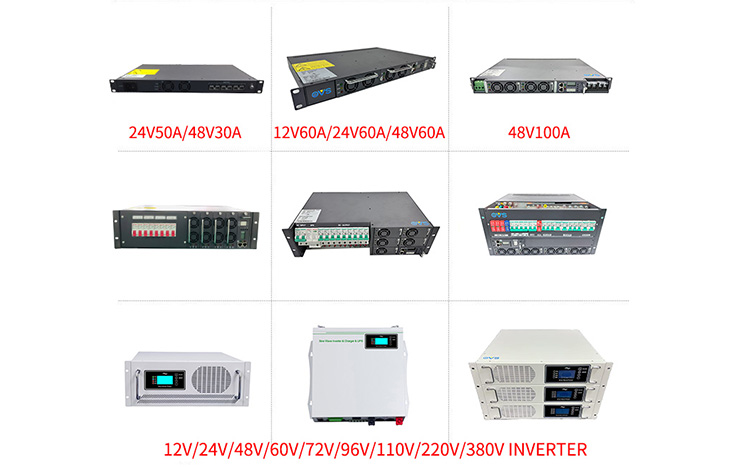

Hot Sale Telecom Power System
Application & Details
Telecom System Inner View
Telecom Rack Setup
Telecom Power System Structure Diagram
Product Specifications Chart
Testing and Assembly
Detailed Technical Specifications Visual
Frequently Asked Questions (FAQ)
What is the input voltage range of this Telecom Power System?
This system supports an ultra-wide AC voltage input range from 80VAC to 300VAC (90V~290VAC nominal range), which makes it highly adaptable to varying grid conditions.
Does this power system support hot-swapping?
Yes, it uses hot-swappable technology. This allows for convenient installation and maintenance without needing to power down the entire system.
What types of batteries are compatible with this system?
The system features intelligent battery management and protection functions and is compatible with both lead-acid and lithium batteries.
What are the dimensions and form factor?
It has a compact 1U height design, with dimensions measuring 482mm x 270mm x 44mm (Depth * Width * Height), saving valuable rack space.
What remote management options are supported?
It supports remote management and environmental monitoring via dry contacts, serial ports, or RS485/Modbus/SNMP network interfaces.
What are the built-in protection features of this power system?
The system includes comprehensive input over/under-voltage protection, output over-current protection, and output over-voltage protection to ensure secure operations.
