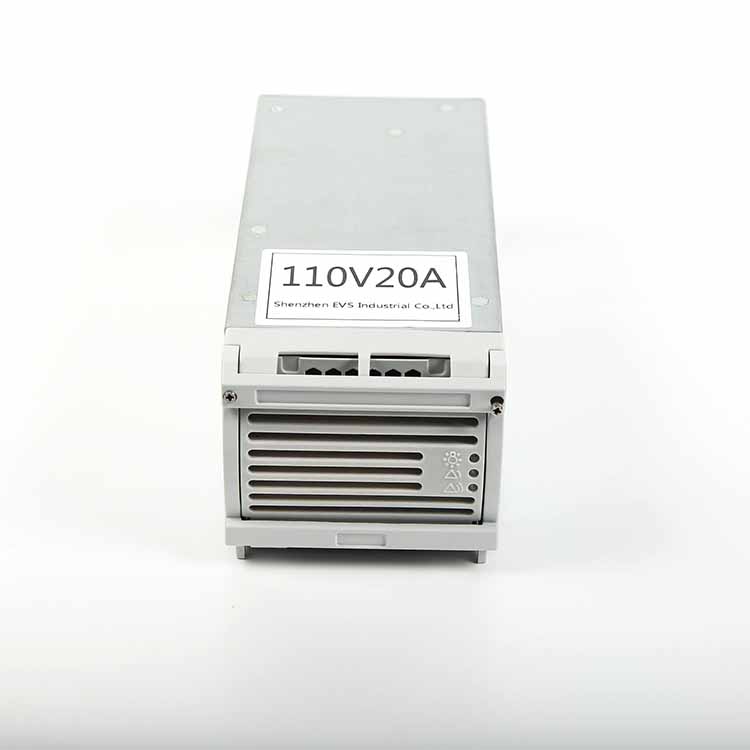

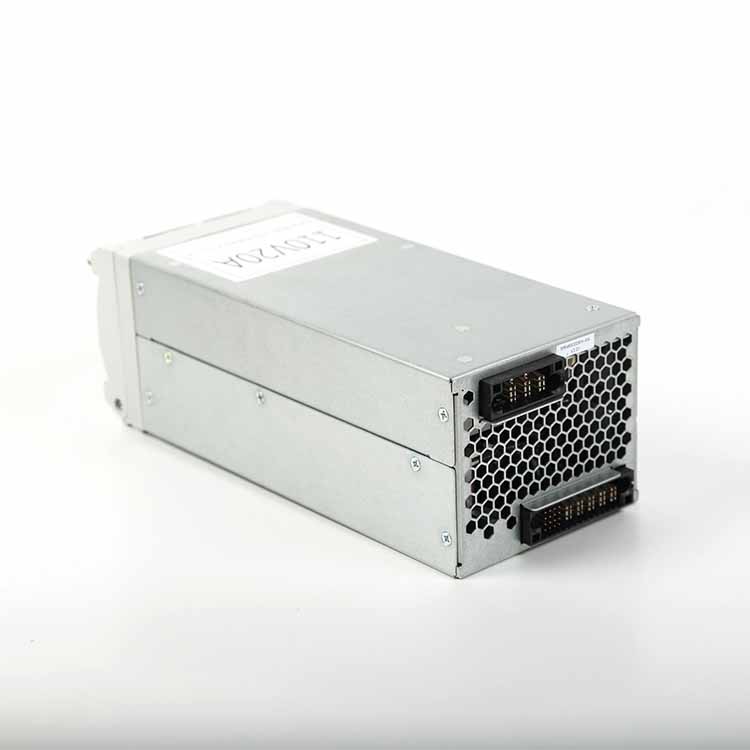

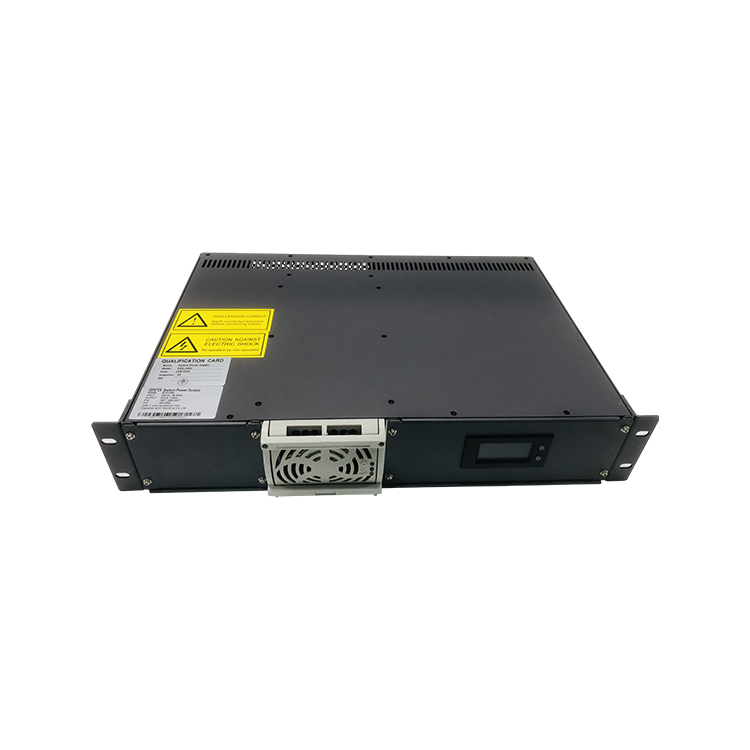

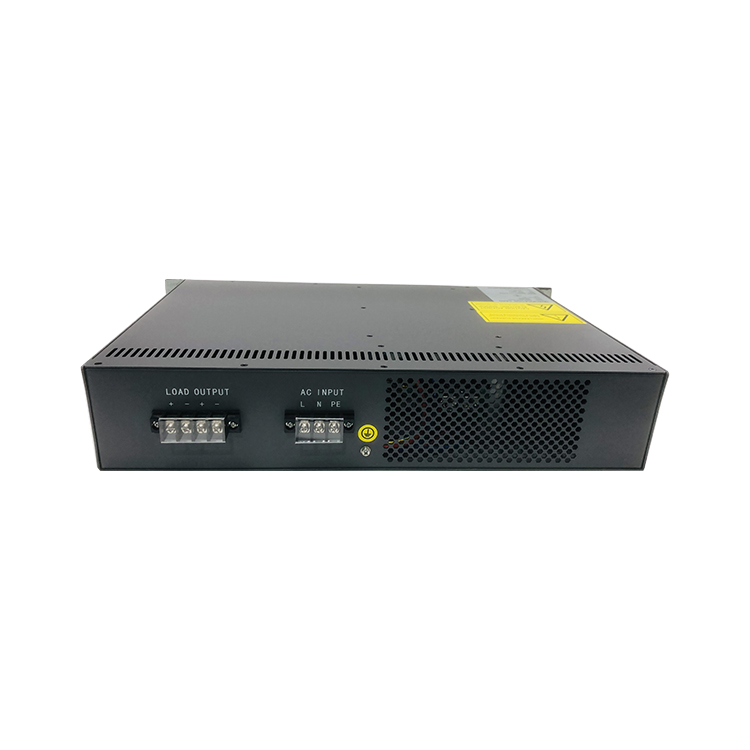

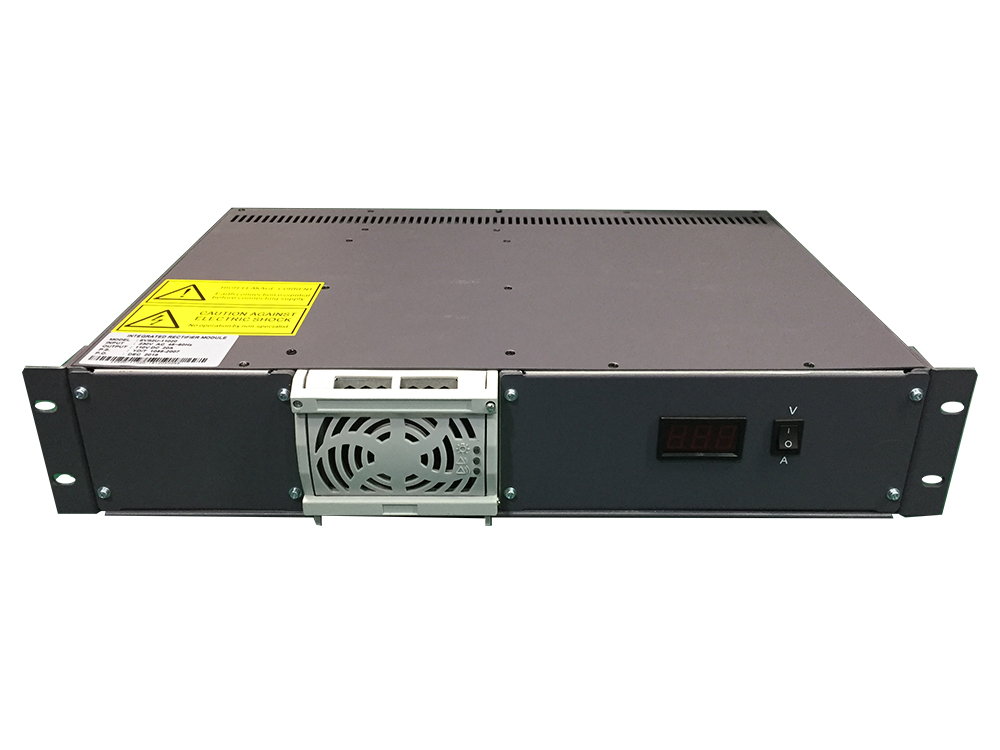

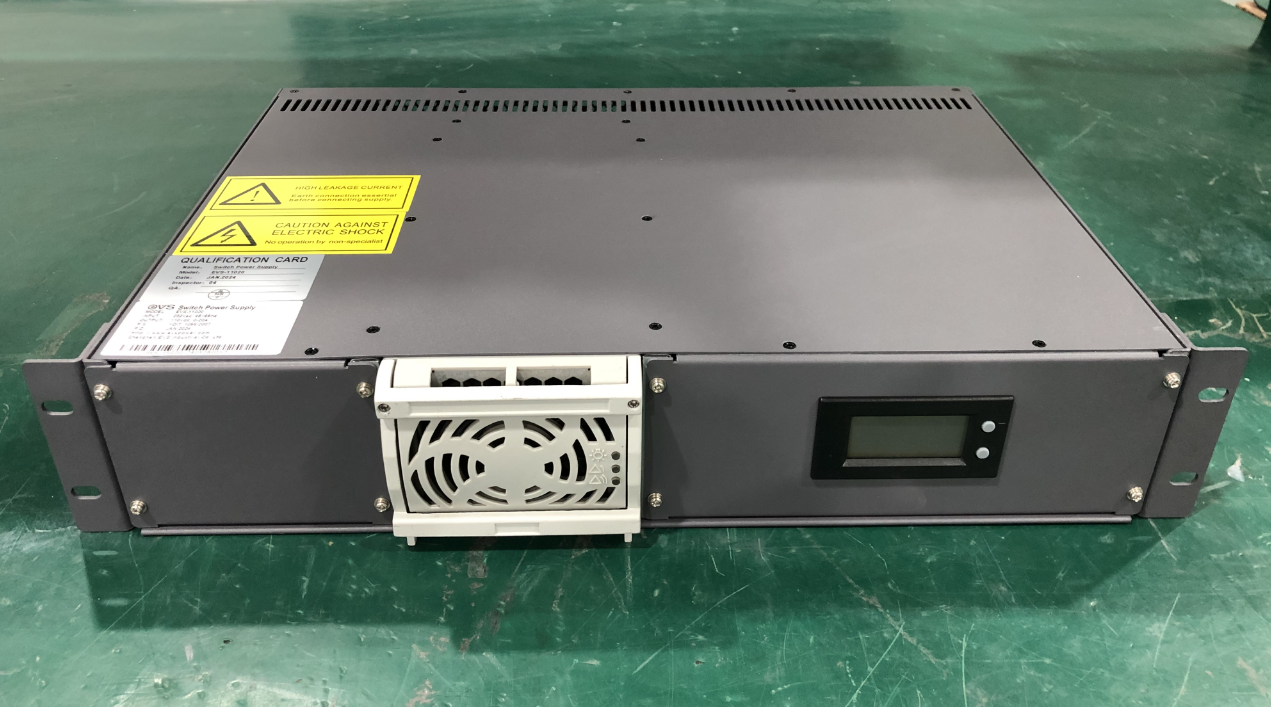

EVS110V20A Rectifier system 110Vdc 20A 220vac to 110vdc output volt range 90Vdc -140VDC power supply Factory price
Adopts active power factor compensation technology, with a power factor reaching up to 0.99.
Features an input voltage normal operating range as wide as 90 ~ 290Vac & 110-395Vdc.
Rectifier modules adopt full bridge soft switching technology, yielding efficiency levels above 95%.
Advanced electromagnetic compatibility design meets conducted and radiated interference limits under standard YD/T983.
System structural design functions in complete alignment with safety standards EN60950 and GB4943.
| Parameter | Min. | Rated | Max. | Unit | Note |
|---|---|---|---|---|---|
| Output voltage range | 100 | 125 | 156 | Vdc | |
| Output current range (max.current) | 0 | 20 | A | ||
| Regulation accuracy | ±1 | % | |||
| Load regulation | ±1 | % | |||
| Source regulation | ±1 | % | |||
| Current sharing regulation | ±5 | % | |||
| Ripple (peak – peak value) | 200 | mv | Network 20MHz testing. |

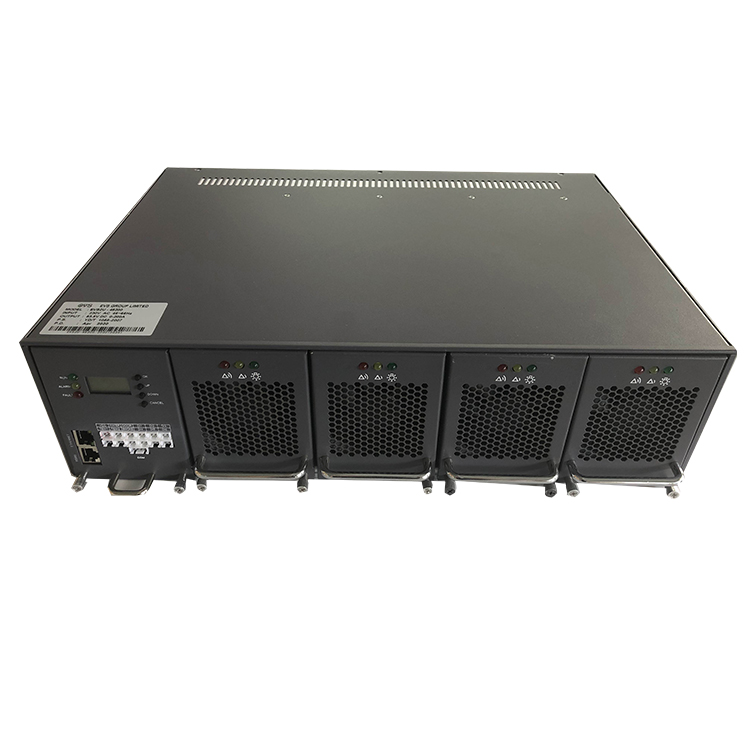

| Rectifier module | 24Vdc/60A | 48Vdc/50A | 125Vdc/20A | 220Vdc/10A |
|---|---|---|---|---|
| Input | 90 ~ 290Vac&110-395Vdc&380Vac | |||
| Output | 60A 120A 180A 240A | 50A 100A 150A 200A | 20A 40A 60A 80A | 10A 20A 30A 40A |
A1: The system supports a wide operating input voltage range of 90 ~ 290Vac and 110-395Vdc, making it adaptable to various industrial power grids.
A2: The modules utilize advanced full-bridge soft switching technology, allowing conversion efficiency levels to reach over 95%.
A3: The active power factor compensation technology optimizes electricity utilization, improving the system power factor up to 0.99.
A4: Yes. The system is designed to comply fully with safety standards EN60950 and GB4943, and meets standard YD/T983 for electromagnetic compatibility (conducted and radiated interference).
A5: The system features an output voltage range from 100Vdc up to 156Vdc, with a nominal rated output of 125Vdc.
A6: Multiple module parameters are available, including 24Vdc/60A, 48Vdc/50A, 125Vdc/20A, and 220Vdc/10A configurations to fit different requirements.
