Features with the following specifications:

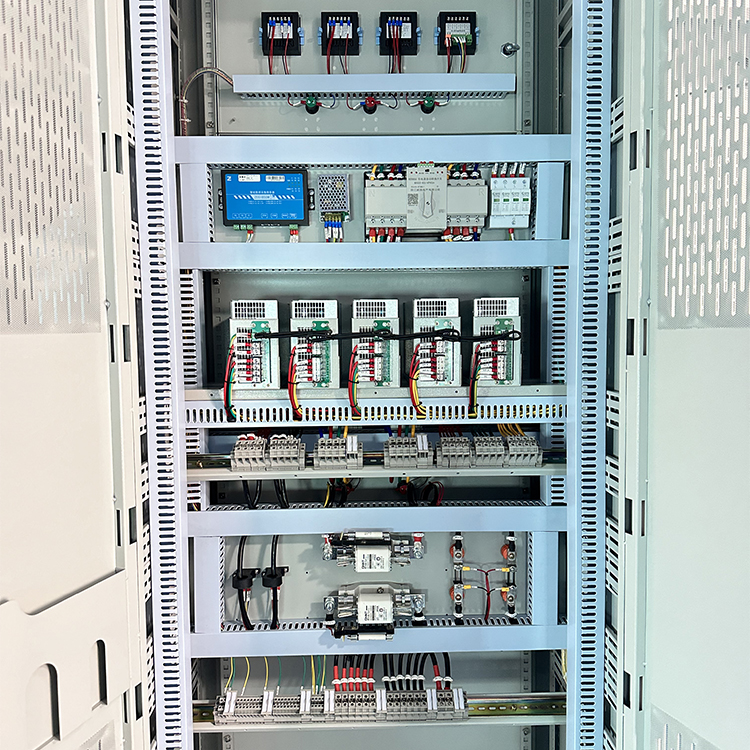

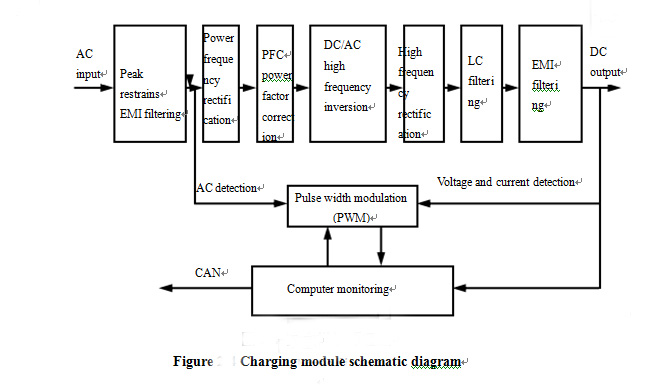

The power system comprises the AC input distribution, rectification, DC output distribution, and monitoring system. The four parts are in turn made up of different components as shown below:
| Type | Name | Specification | |
|---|---|---|---|
| Input | Input mode | 3-phase 4-wire system | |
| Input voltage | 380Vac ± 15% | ||
| Frequency | 45 ~ 55Hz | ||
| Output | Output branch | Dependant on actual situation | |
| Float Charge (FC) voltage | 198 ~ 260Vdc | 99 ~ 130Vdc | |
| Boost Charge (BC) voltage | 220 ~ 286Vdc | 110 ~ 143Vdc | |
| Ripple coefficient | ≤ 0.5% (typical: 0.5%) | ||
| Voltage stabilization | ≤ ±0.5% (typical: 0.1%) | ||
| Current stabilization | ≤ ±0.5% | ||
| Inter-rectifier current imbalance | ≤ ±5% | ||
| Protection | Input over-voltage switching point | 470 ± 5Vac | |
| Input under-voltage switching point | 324 ± 4Vac | ||
| Rectifier output under-voltage alarm | 198V | ||
| Insulation | Output-ground | 2kVac, current leakage ≤30mA; time: 1min, no flashover | |
| Input-ground | |||
| Input-output | |||
| Ambient temperature | Working ambient temperature | -5°C ~ 40°C | |
| Storage ambient temperature | -25°C ~ 55°C | ||
| Acoustic noise | ≤55dB (1m in front of the cabinet) | ||

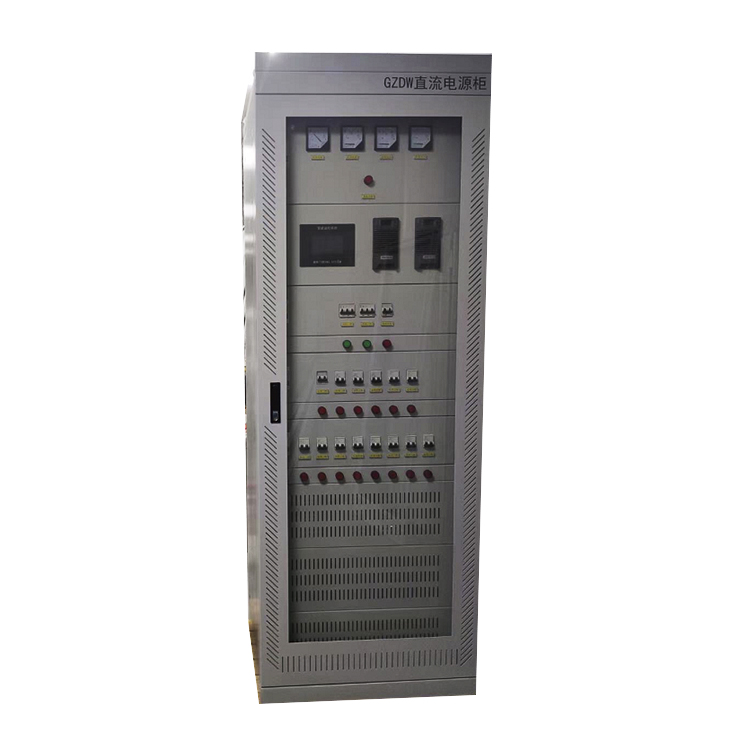

| Mechanical | Sizes (single cabinet) (H × W × D) | 2260 (or 2360) mm × 800mm × 600mm | |
Features an advanced input voltage range of 323-475VAC, providing flexibility in various power applications and adaptability to diverse power grids worldwide.
With an output current of 60A, this power supply is designed to handle large and demanding applications, making it ideal for industry, laboratory, industrial equipment, machines, and battery charging systems.
Equipped with multiple built-in protection features against overcurrent, over temperature, overloading, over power, overvoltage, and undervoltage risks, ensuring optimal system performance and durability.
Enjoy high operational efficiency of 0.92 with this power supply, designed for single phase output and compatible with numerous industrial power standards.
The module can be tailored to include custom logo branding, showcasing a professional and personalized touch, making it an excellent fit for electricity base stations employing branded operations.
