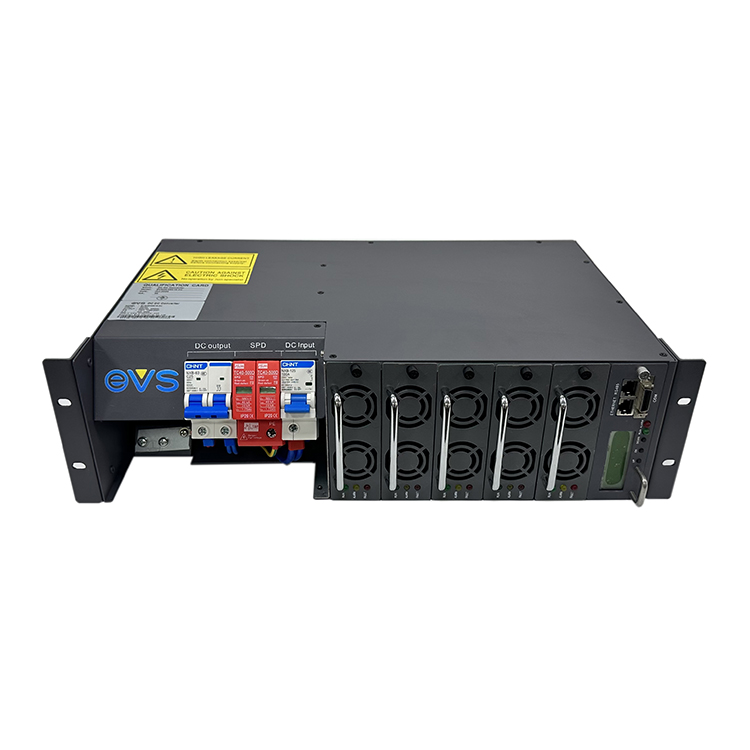

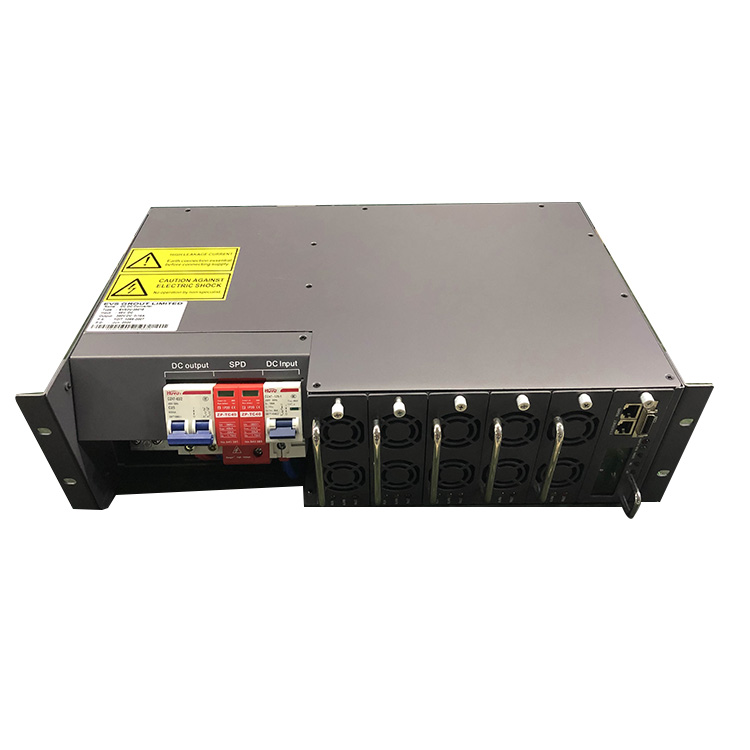

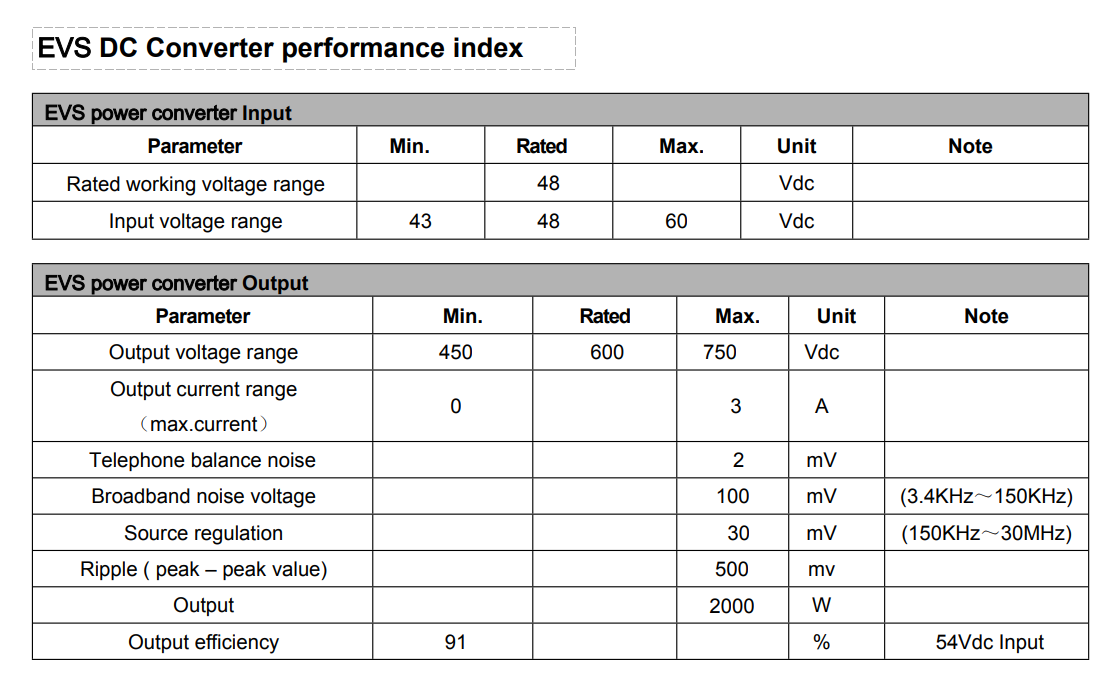

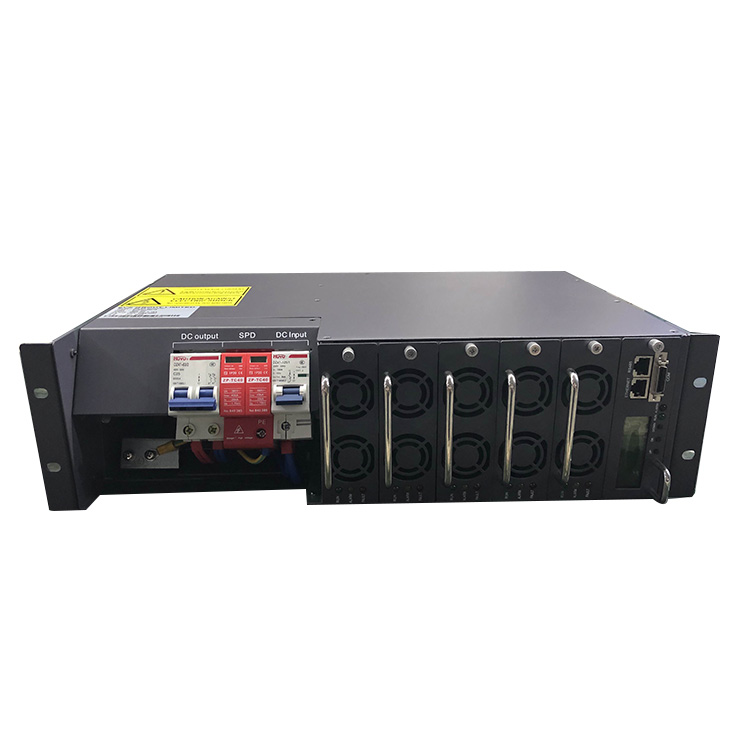

This intelligent converter steps up voltage from 48V DC to 480V DC. It adopts soft switching technology which allows the system to operate at a high efficiency level of ≥ 91%.

We offer smart intelligent configurations supporting power ratings of 5000W and 10000W to handle various industrial and telecommunication power demands.

Yes. The system utilizes automatic current sharing technology, which allows multiple converter modules to be run in parallel configurations seamlessly.

It features extensive protection features including input over/under voltage protection, output overvoltage, output short circuit, output current limiting, input anti-reverse connection, over-temperature protection, and output DC lightning protection.

The system is designed with non-destructive hot plugging technology, enabling easy maintenance, quick replacement, and system scaling without interrupting the power supply.

It operates reliably in temperatures ranging from -25°C to +55°C, relative humidity of 10% to 90% (non-condensing), altitudes up to 3000 meters, and uses wind turbine forced air cooling for heat dissipation.
