Our 48v rectifiers are designed for wireless broadband access, fixed-line applications, Internet backbone and datacenters. Our reliable, energy-efficient telecom power solutions protect against grid power interruptions and fluctuations and help operators reduce OPEX and their carbon footprint.

This model of 48v rectifier is for communication, featuring output voltage ranges of 24V/48V/110V/220V dc and output current ranges of 0-200A. Its standard features include input over/under-voltage protection, output over-current protection, and output over-voltage protection.

Our 48v rectifier features and functions include:

• Wide voltage input range: 80 ~ 300Vac / 100-400Vdc, suitable for global power grid standards.
• High power factor greater than 0.98.
• Comprehensive protection: input under-voltage, input over-voltage, output voltage, output current limiting, output short circuit, and over-temperature protection.

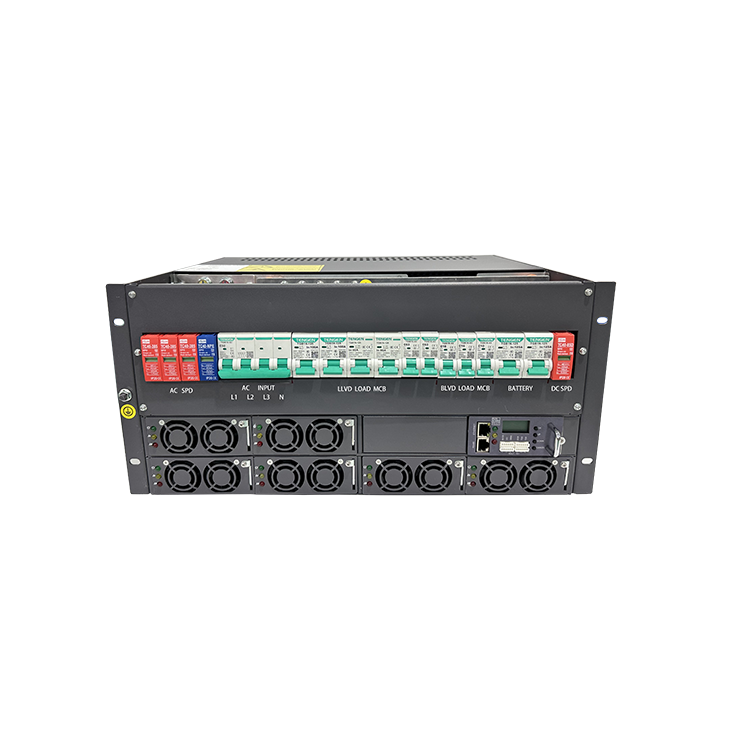

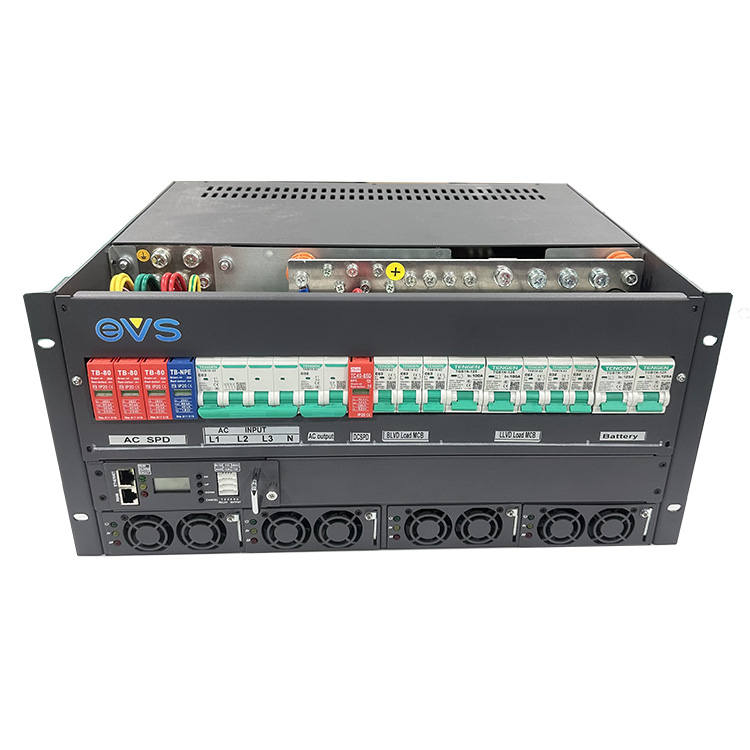

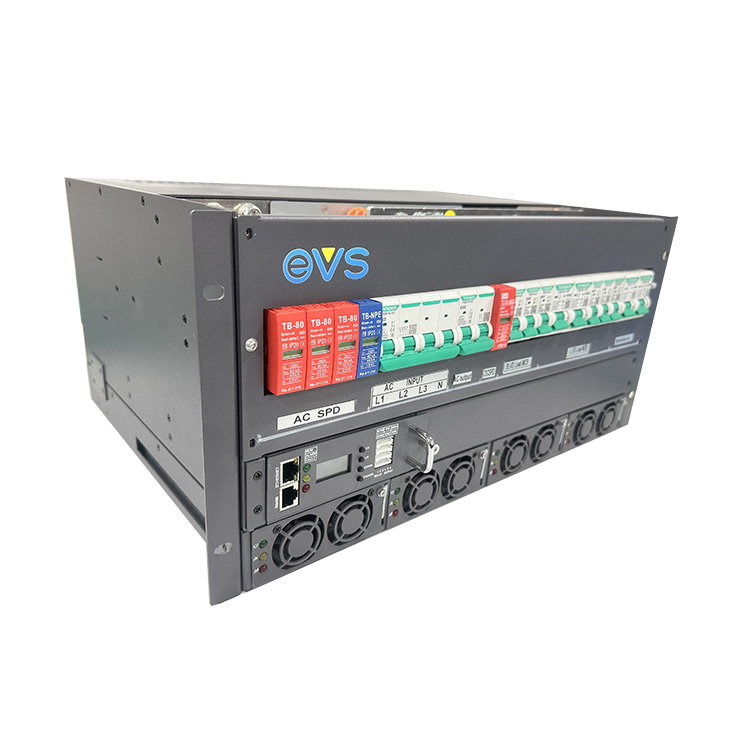

• Compact design: small size, height 5U, with 4*50A rectifier modules.

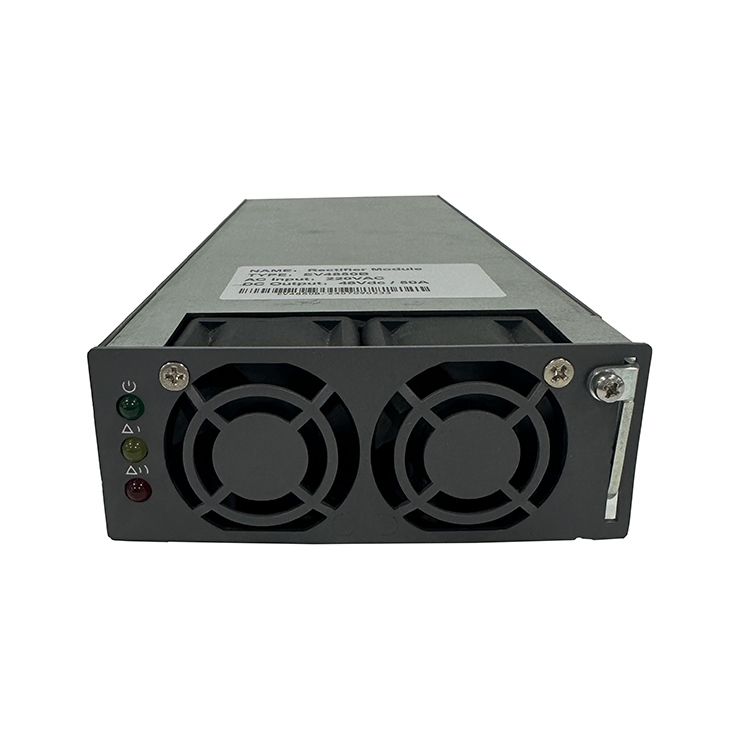

• Configurable modules: 50A module options.
• Standard 19-inch installation.
• SNMP controller, system management, and battery management functions.
• Provides RS485 Modbus SNMP communication interfaces.
• Module anti-theft function.
• Battery anti-reverse protection function.
• Input current detection.
• Supports hot-swappable configuration.
• Energy-saving sleep function.
• Independent design of lightning protection unit (optional).
• The power supply can be installed in any 19-inch rack independently.

• Small scale program-controlled exchanges
• Access networks
• Transmission equipment
• Mobile communication
• Satellite communication ground stations
• Microwave communication

Input Index

DC Output Index
