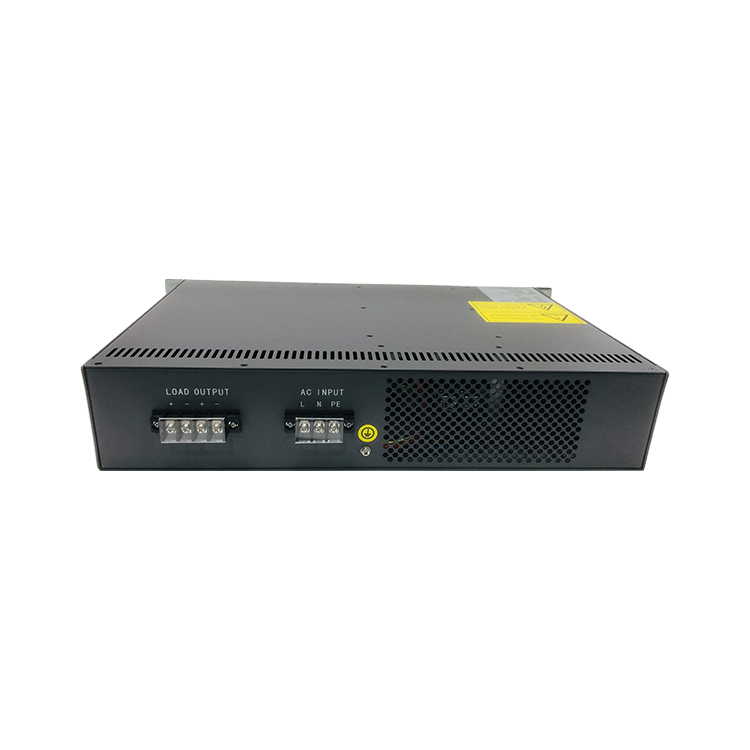

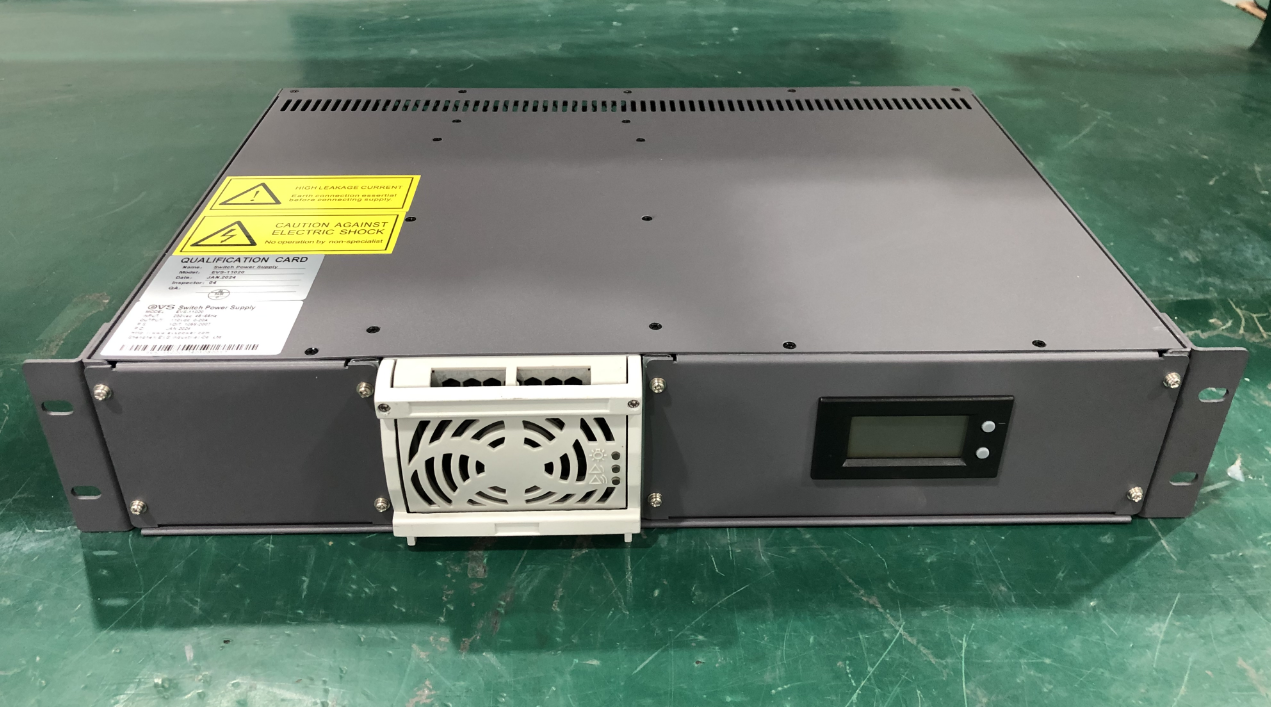

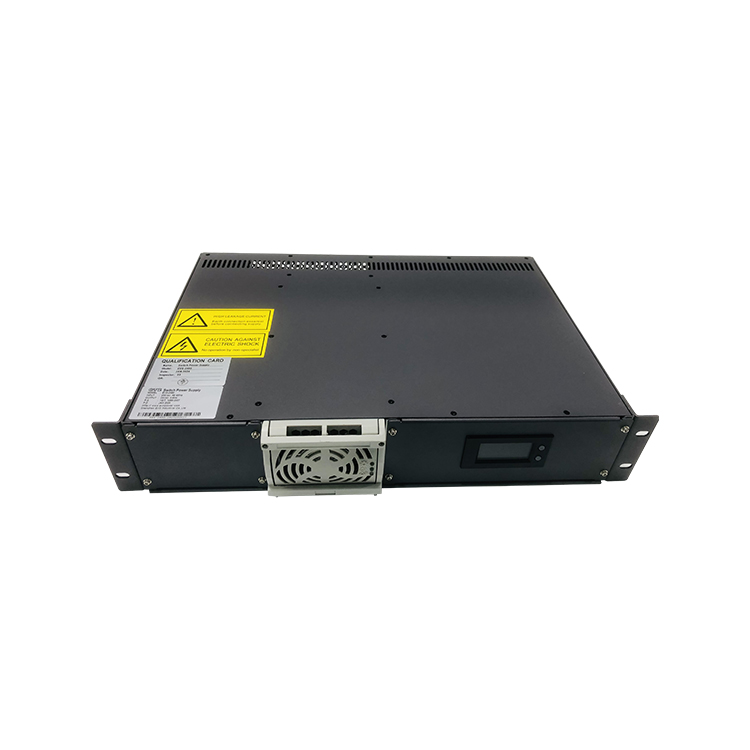

Rack mount 220v to 110v converter with 20A Modular Rectifier
✓
220v to 110v Converter adopts active power factor compensation technology, power factor up to 0.99.
✓
input voltage of normal operating range as wide as 90 ~ 290Vac & 110-395Vdc.
✓
Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 95%.
✓
Ultra-low radiation. Adopt advanced electromagnetic compatibility design, the rectifier module can meet requirements for conducted and radiated interference of "the communication power equipment electromagnetic compatibility Limits and methods of measurement" (People's Republic of China telecommunications industry standard YD/T983).
✓
Safe and reliable. System design in full compliance with safety standards EN60950 and GB4943.
| 220v to 110v Converter Output |
| Parameter |
Min. |
Rated |
Max. |
Unit |
Note |
| Output voltage range |
100 |
125 |
156 |
Vdc |
|
| Output current range (max.current) |
0 |
|
20 |
A |
|
| Regulation accuracy |
|
|
±1 |
% |
|
| Load regulation |
|
|
±1 |
% |
|
| Source regulation |
|
|
±1 |
% |
|
| Current sharing regulation |
|
|
±5 |
% |
|
| Ripple ( peak – peak value) |
|
|
200 |
mv |
Network 20MHz testing. |

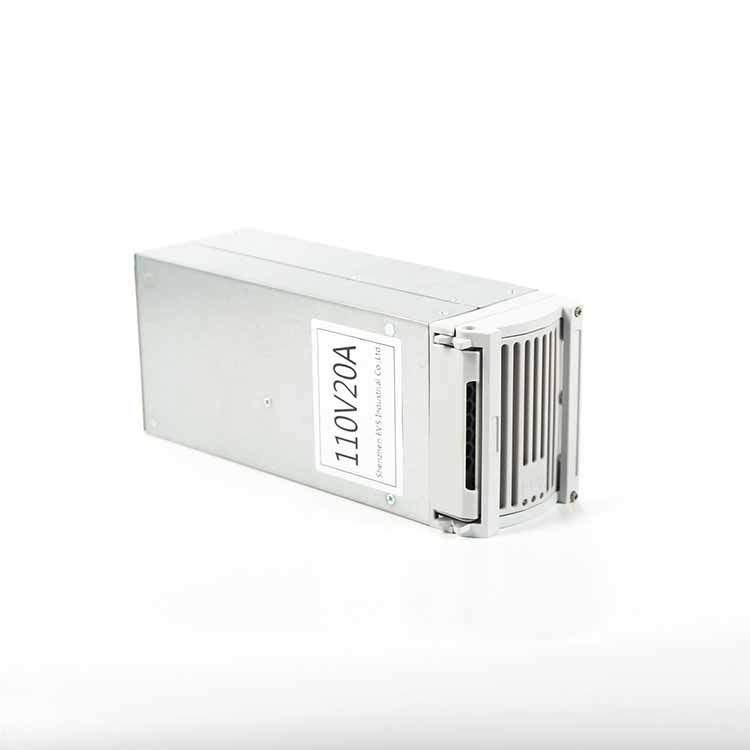

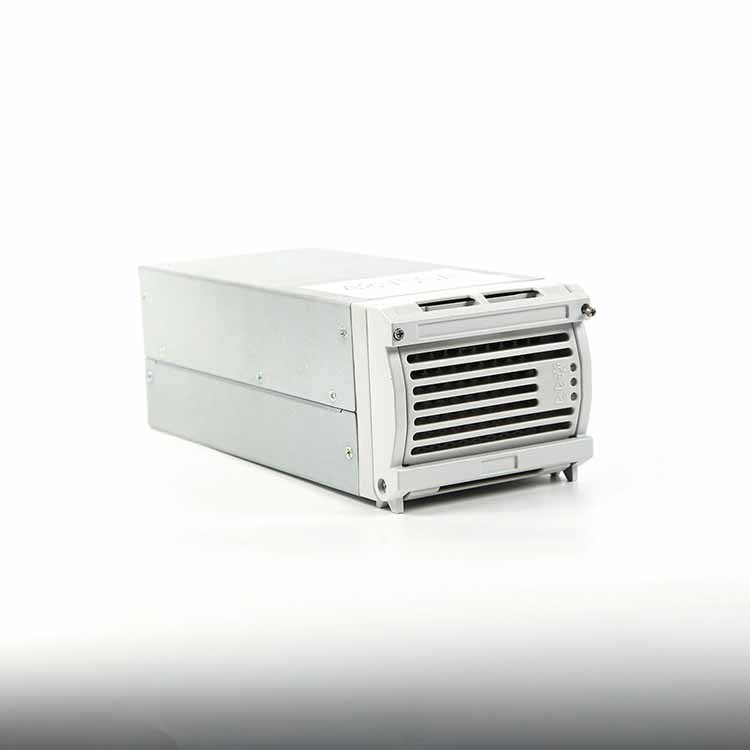

| Rectifier module |
24Vdc/70A |
48Vdc/50A |
125Vdc/20A |
220Vdc/10A |
| Input |
90 ~ 290Vac & 110-395Vdc & 380Vac |
| Output |
70A 140A 210A 280A |
50A 100A 150A 200A |
20A 40A 60A 80A |
10A 20A 30A 40A |
Hot Sale Products
What input voltage range does this 220v to 110v converter support?
The converter has a wide normal operating input voltage range of 90 ~ 290Vac and 110-395Vdc, making it highly versatile for various industrial configurations.
What is the efficiency level of the modular rectifier?
The rectifier modules utilize full bridge soft switching technology, allowing operating efficiency to reach above 95%.
Does this system offer active power factor compensation?
Yes, it features active power factor compensation technology that delivers a power factor of up to 0.99 for maximum power efficiency.
Are these modules safe and compliant with industry safety standards?
Absolutely. The system design is fully compliant with EN60950 and GB4943 safety standards, ensuring reliable and secure operation in industrial environments.
How is the electromagnetic compatibility (EMC) managed?
It features an advanced electromagnetic compatibility design. The rectifier module successfully meets conducted and radiated interference standards, adhering to telecommunication standards like YD/T983.
What is the rated output voltage and current for the 125V modular setup?
The rated output voltage is 125Vdc with a maximum output current range of 20A, designed to meet demanding telecom and switching power supply requirements.
