| Model (A3) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
|---|---|---|---|---|---|---|---|---|---|
| Rate capacity(VA) | 1KW/ 1.25KVA |
2KW/ 2.5KVA |
3KW/ 3.75KVA |
4KW/5KVA | 5KW/ 6.25KVA |
6KW/ 7.5KVA |
8KW/ 10KVA |
10KW/ 12.5KVA |
12KW/ 15KVA |
| DC input | |||||||||
| Input voltage | DC24V; DC48V; DC110V; DC220V; | ||||||||
| Range voltage | DC20-32V; DC30-48V; DC90-144V; DC180-288V; | ||||||||
| Communication input | |||||||||

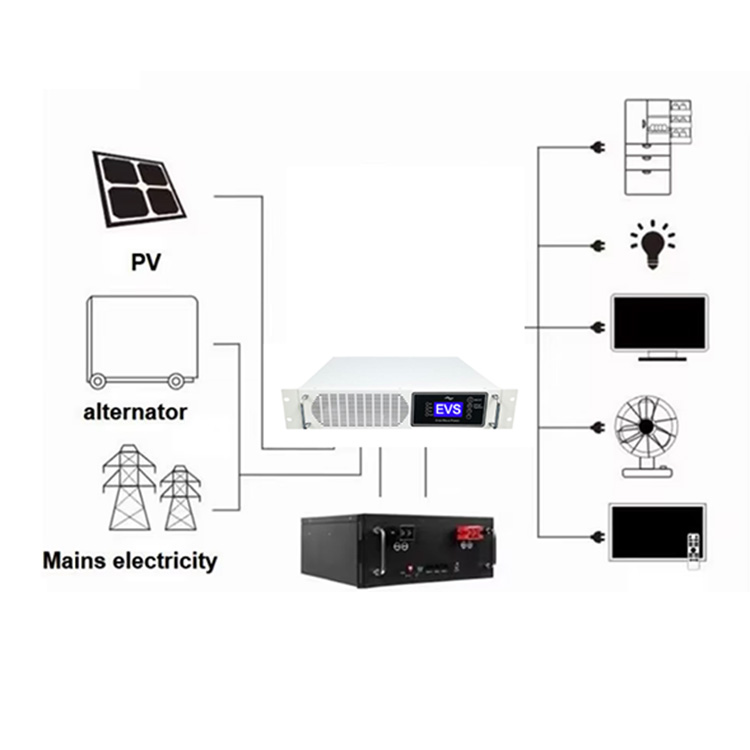

| Rated AC input voltage | AC220V/AC110V (mains power/generator) | ||||||||
| AC input range | 170-280Vac (UPS mode) factory default; 90-280Vac (APL electrical mode) | ||||||||
| AC input frequency | 50HZ/60HZ (optional in the backend) | ||||||||
| UPS conversion time | <5ms (UPS mode) factory default; <13ms (electrical appliance mode) | ||||||||
| AC Output | |||||||||
| AC output voltage | 220/230/240Vac±3% optional | ||||||||
| AC output frequency | 50±1HZ/60±1HZ (optional in the backend) | ||||||||
| Output waveform | Pure sine wave (full voltage range) | ||||||||
| Waveform distortion rate | ≤3% (linear load) | ||||||||
| Inverter peak efficiency | 95% | ||||||||
| Dynamic response | (0~100%)≤5% | ||||||||
| Power factor | >0.9 | ||||||||

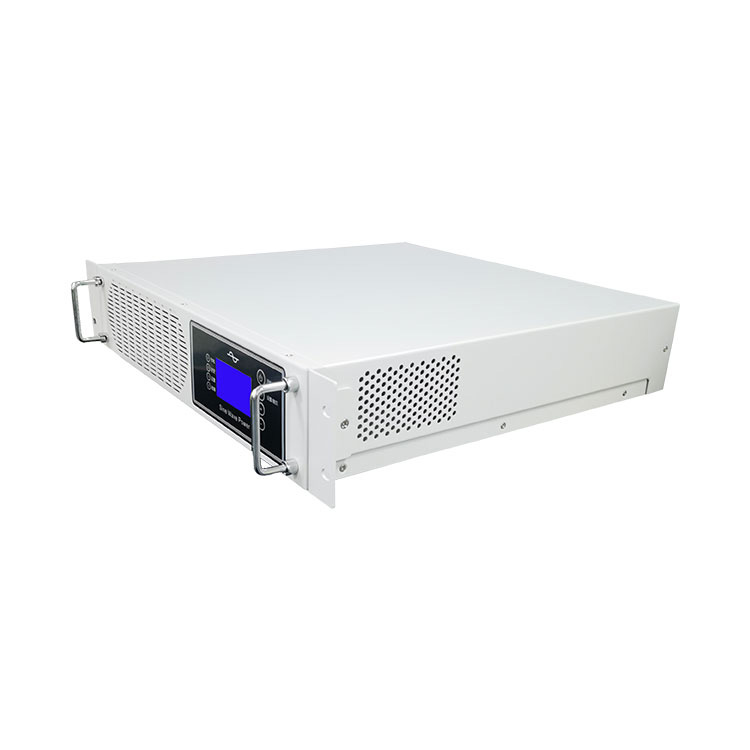

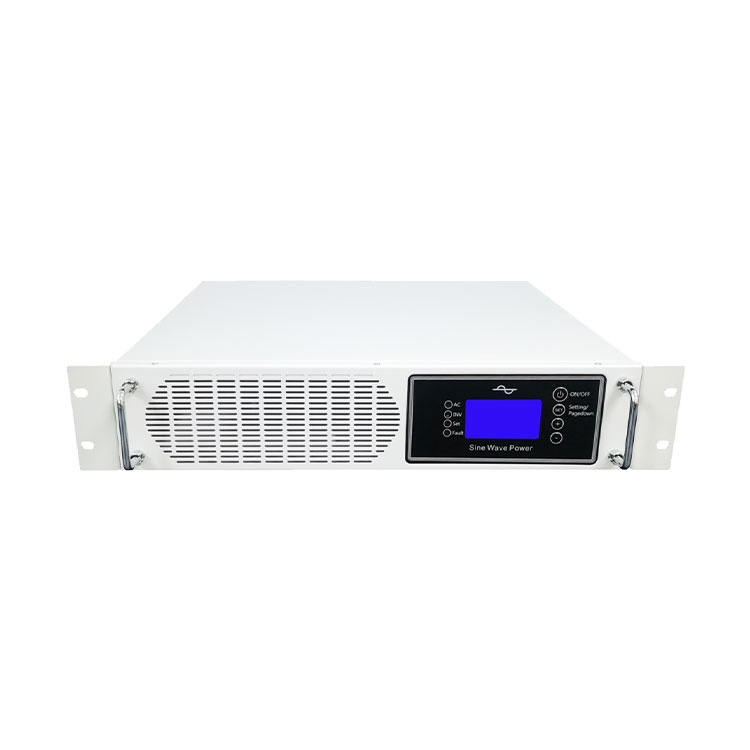

| Size(mm) | 2U/19inch 482*414*88 |
2U/19inch 482*445*88 |
3U/19inch 482*445*132 |
||||||
| Weight (kg) | 9 | 9 | 10 | 12 | 12 | 12 | 14 | 15 | 16 |
| Communication method | Standard configuration: RS485 (communication modes such as RS232/WIFI/GPRS/CAN can be customized) | ||||||||
| Protection grade | IP20 / Customizable | ||||||||

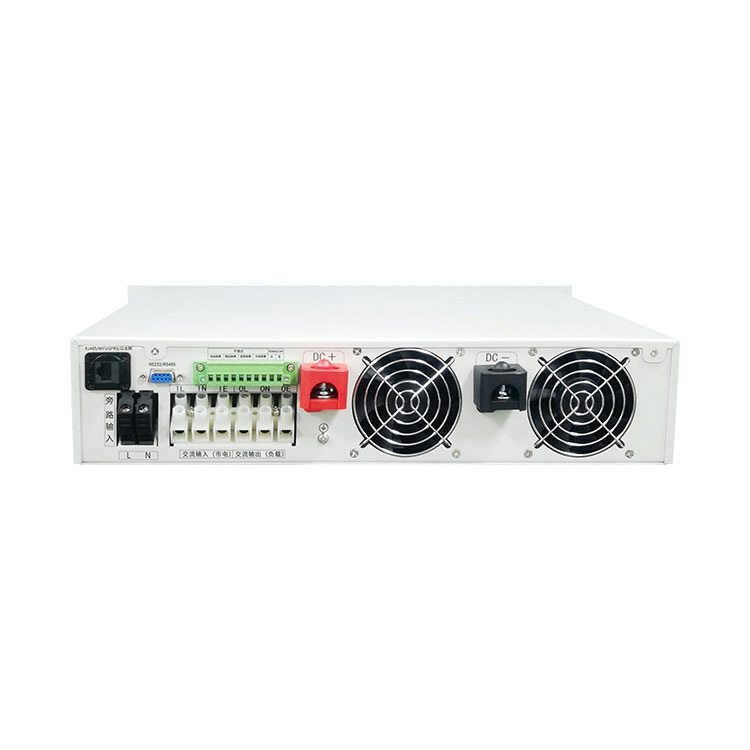

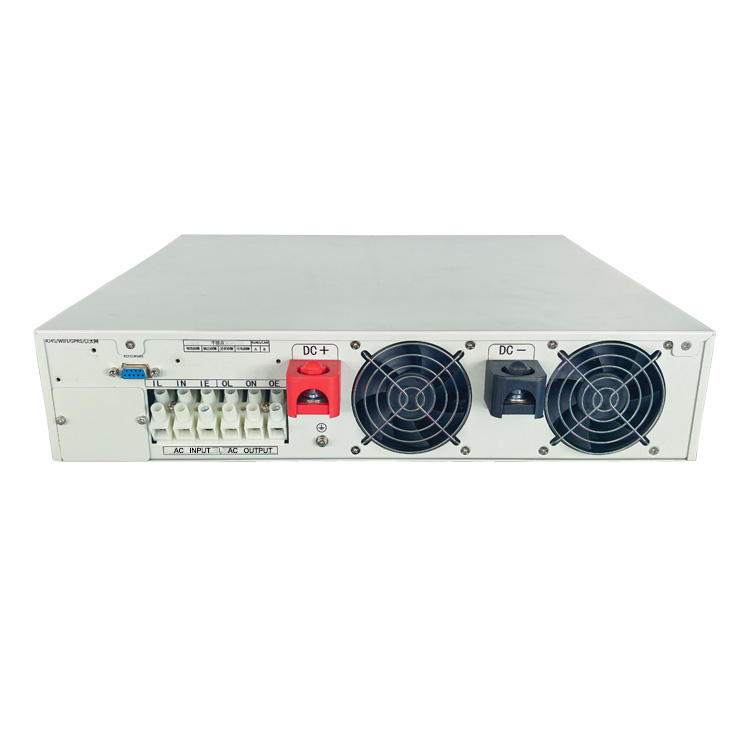

| Standard configuration | 1 AC input, 1 DC input, 1 AC output, RS485 interface | ||||||||
| Optional Unit | 1: Fault dry contact; 2: External switch box; 3: External display box; 4: RS232; 5: WIFI module; 6: GPRS module; 7: Ethernet module; 8: CAN communication; 9: Bypass input | ||||||||
| Others | DC24V/48V/110V/220V models are standard products, while DC12/36/60/72/96/192/240V models are customized products | ||||||||
The A3 48v dc to ac power inverter is a high-quality and reliable solution for telecommunication applications in need of 220vac single-phase power. Remarkable features like its compact size (19'' 2U), easy installation, and efficient operation make it a convenient choice for installation in confined spaces. This versatile inverter delivers a steady output of 1KVA, providing enough power to meet diverse telecommunication needs. Add to it its compatibility with diverse voltage sources, excellent retention of the original waveform, and its variable control of load current to guarantee optimal performance.
The 48v dc to ac power inverter features a single-phase, single frequency output (50Hz / 60Hz), making it suitable for use in both industrial and telecommunications environments where electricity supply commonly falls within these parameters.
Specifically designed for telecom use, the inverter is built with rigorous standards and safety mechanisms to protect against both over-voltage and over-current conditions, ensuring reliability and longevity of the equipment. It comes with a high output of 4.5A and supports a wide range of input voltage (24-48vdc), providing a flexible and versatile power solution for different voltage requirements.
Each inverter undergoes strict quality control before leaving the manufacturing facility, ensuring that only top-quality products reach the hands of customers. With its compatibility in different industries, easy installation process, and robust design, the 48v dc to ac power inverter 48v dc to 220v ac Telecommunication Power Inverter is an excellent investment for any organization in need of a reliable 220vac single-phase power source.
